Large Conveying 1500m3/H Feed 300mm Belt Conveying Equipment

Large Conveying 1500m3/H Feed 300mm Belt Conveying Equipment

  • High Light

    Feed 300mm Belt Conveying Equipment

    ,

    1500m3/H Belt Conveying Equipment

    ,

    1500m3/H flat belt conveyor

  • Product Name
    Large Conveying Capacity Belt Conveyor
  • Capacity
    50-1500(m³/h)
  • Belt Type
    Nylon/Polyester/Steel Cable/Cotton Canvas
  • Material
    Coal, Rock, Ores, Limestone Etc
  • Application
    Mining, Coal, Metallurgy Etc
  • Condition
    New
  • Warranty
    12 Months
  • Spare Parts
    Supply All Using Life
  • Voltage
    Local Voltage
  • Shipping Port
    Shanghai, Qingdao, Tianjin
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Various models
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

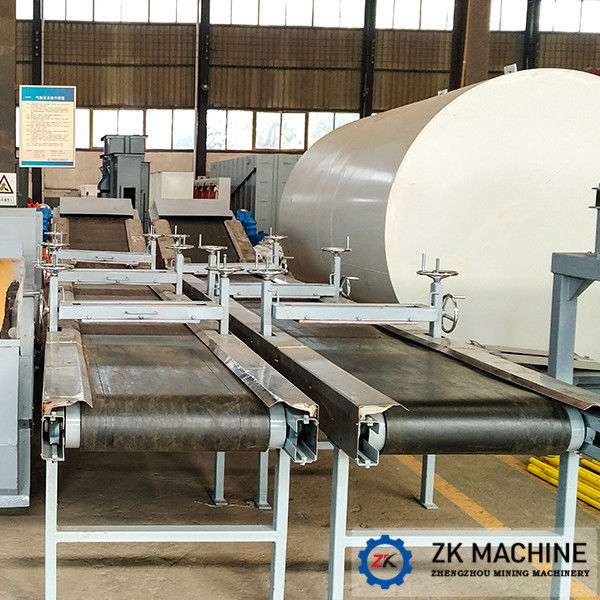

Large Conveying 1500m3/H Feed 300mm Belt Conveying Equipment

Large Conveying Capacity Belt Conveyor Simple Structure Easy Operation





Introduction:

Belt Conveyor is a friction-driven machine that continuously transports material from one place to another place. It can be material in a certain transmission line, from the initial feeding point to the final discharge point between the formation of a material transport process.


Application of Fixed Belt Conveyor:
Metallurgy, mining, coal, chemical engineering industries.


Large Conveying 1500m3/H Feed 300mm Belt Conveying Equipment 0



Mining Conveying Belts Conveyor ​ Structure:
1) Driving device of conveyor has open type and closed type. Open type: it is consist of motor, high speed coupling, brake, gearbox, low speed coupling and pin roller. The unit mount together on a steel base (motor power within 10kW), or mount on concrete base separately. (Motor power more than 115kW). Closed driving device is electric drum, motor and gearbox system are mounted inside of drum. Compared to open driving device. Its features are compact, safe operation, small land area, light, low cost. TD75 various specification drum to match its requirement.
2) At material feeding area, design impact roller to reduce impact from material to belt.
3) In order to avoid off-tracking, install one set groove aligning roller every 10 set on load section, install one set horizontal aligning roller every 6-10 set on on-load branch.
4) The tension gear has different type, which is suitable for to different condition.


Large Conveying 1500m3/H Feed 300mm Belt Conveying Equipment 1



Working Principle:
The belt conveyors manufactured by ZK Corp mainly have various types: please Click for detailed information.
DJ Large Angled Belt Conveyor: It adopts corrugated sidewall belt and diaphragm plate. Its maximum angle of inclination can reach 90 degree, which will save a lot of floor space, equipment investment and construction cost.DTII Fixed Belt Conveyor: It has features of large capacity, long conveying distance, easy operation & maintenace etc, which is widely used in mining, coal, metallurgy, chemical industries.
Portable Belt Conveyor: It can be used for transport bulk material or bags. It can be divided into rise-and-fall and non rise-and-fall type, according to different transport requirements.
TD 75 Belt Conveyor: It has the advantages of large conveying capacity, long conveying distance, stable running, easy operation etc


Large Conveying 1500m3/H Feed 300mm Belt Conveying Equipment 2



Belt Conveyor Belt​ Specifications:



This is the specification of DTII Fixed Belt Conveyor.

Spec Rubber belt

Length

(m)

Dia. of drive drum

(mm)

Max. feeding size

(mm)

Capacity

(m³/h)

Power

(kW)

Width (mm)

Speed

(m/s)

Slope

(°)

DTⅡ-500 500 0.8~2.5 0~20° 2~240 400,500,630 100 69~217 1.5~30
DTⅡ-650 650 0.8~2.5 0~20° 2~240 400,500,630 150 127~397 1.5~45
DTⅡ-800 800 0.8~3.15 0~20° 2~240 400,500,630 200 198~781 2.2~75
DTⅡ-1000 1000 0.8~3.15 0~20° 2~240 500,630,800 300 324~1622 7~100
