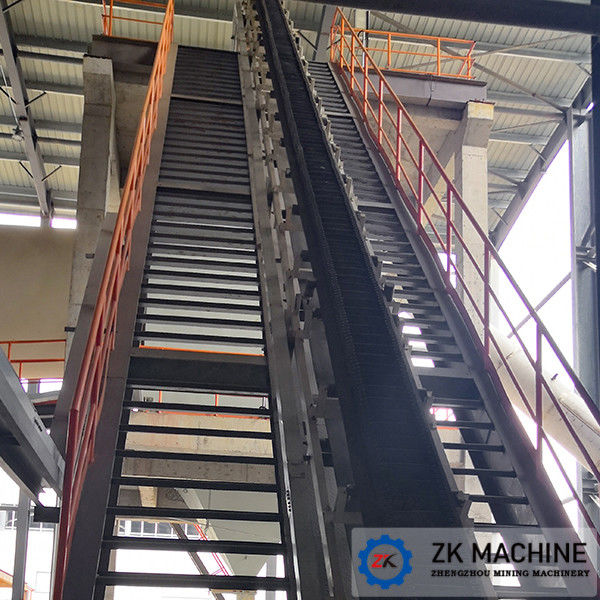

Powdery Conveying Equipment 300m3/H 90° Large Angle Belt Conveyor

Low Noise Stable Operation Large Angle Belt Conveyor Low Investment

Introduction:

DJ Inclined belt conveyor uses corrugated sidewall belt instead of normal belt. Its structure and working principle is same with belt conveyor, and most of its components can be used by normal belt conveyor. DJ Large angle belt conveyor can continuously convey all kinds of bulk material with bulk density 0.5～2.5t/m³at environment temperature -25℃～40℃. Maximum angle of inclination is 90°, and maximum size of the material should ≤180mm.

Application of Large Angle Belt Conveyor:

Usually used for conveying powdery, granular and other bulk materials in Electric power, metallurgy, building materials, light industry, food, mining and other industries.

Large angle belt conveyor is mainly consist of tension device at tail, pinch device at tail, central bracket, roller device, corrugated sidewall belt, driving device at head, cleaning device, belt adjusting device, chute and other components.

Features of Bucket Elevator:
1. Inflow feeding, mixing or centrifugal discharge is adopted, and the large-capacity intensive arrangement of the hopper, there is no return or digging phenomenon when the material is lifted, the loss is small, the driving power is relatively small;
2. The lifting range is wide, and it can be widely used for lifting generally powdery, small granular materials, etc..;
3. Flexible and centrifugal discharge methods can be selected flexibly according to the characteristics of materials and lifting height;
4. Materials are transported in a closed space without dust leakage, clean and environmentally friendly;
5. The middle casing is weld by bending member, which have high overall rigidity and reliability;
6. The rubber belt with small dead weight, good flexibility and smooth operation is used as the traction member, which improves the speed and production efficiency;
7. The overall operation of the equipment is stable and reliable, Can achieve a higher lifting height and a larger delivery volume;
8. With a highly reliable backstop mechanism, which can prevent a sudden power failure or other failures to cause a sudden on-load shutdown, causing the traction member and loading hopper to reverse, resulting in an accident.
