Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
LS200-LS500

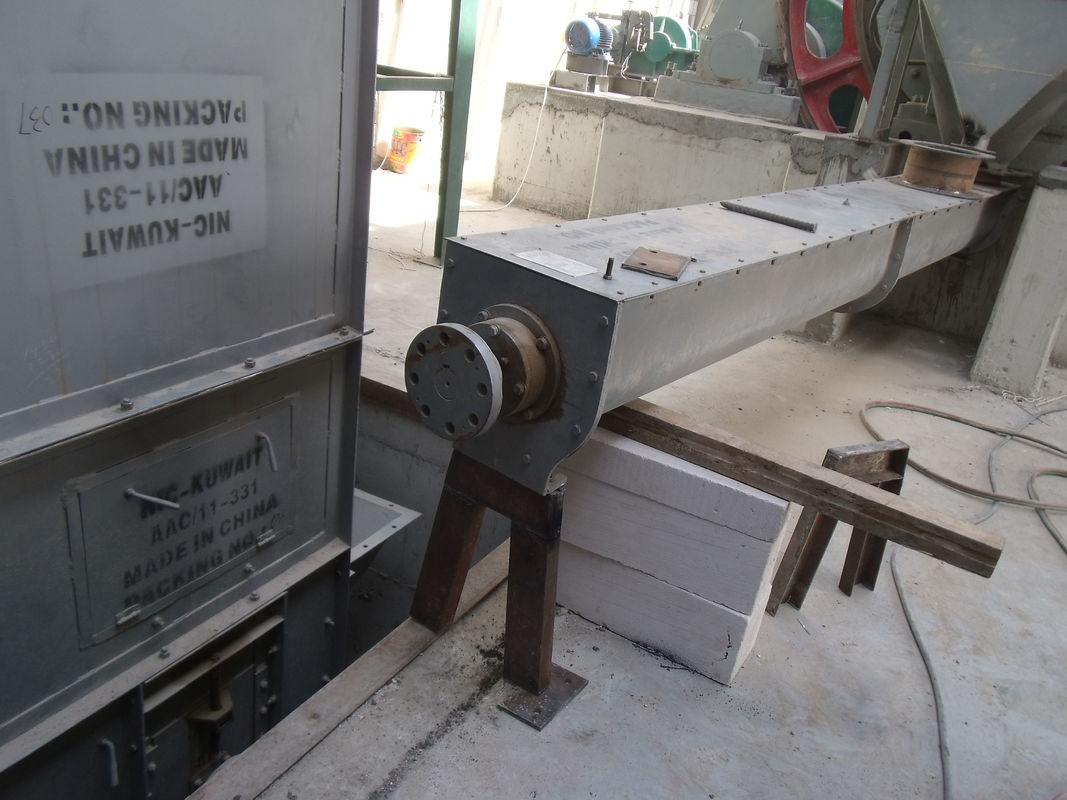

Screw Conveyor for Cement Plant / Screw Conveyor Manufacture
Screw Conveyor Introduction:
Screw conveyor with a compact structure, small cross-sectional area, lightweight, good airproof performance, high transmission efficiency, flexibility process in layout, equipment, demolition, mobile convenience and in safe working order. Applicable to transport all kinds of powder, granular, small block of bulk materials, such as the clay powder, coal, cement, sand, grains, small lump coal, gravel and cast iron. Not suitable for viscous transport, and easy to agglomerate and perishable materials. The form of screw conveyor according to the level of configuration, tilt, and the form of portfolio and work with other transportation device used to complete the set operation, distribution, whip, mixing, dehydration, set list of ingredients, dumping of cut-off, stacking operation, etc.. This product is suitable for bulk cement transportation from cement bin to stirring machine or to dosing machine in concrete batching plant.
Application of Screw Conveyor:
Screw conveyor generally used for continuity conveying bulk materials in short distance at horizontal or slightly oblique (angle β≤15 °) direction. It can mix and stir the material during conveying. The working environment is -20 ~ 50 ℃, and the material should be less than 200 ℃. Its design and fabrication meet the professional standards in JB/T7679-2008-"screw conveyor". The hanging bearing adopts the two structures of rolling and sliding interchangeable. It has low resistance, strong sealing and good wear resistance.
Types of Screw Conveyor:
Screw Conveyor in the form of transmission is divided into shaft screw conveyor and shaft-less screw conveyor, in the shape is divided into U-type screw conveyor and tube screw conveyor.
ZK CORP is a comprehensive enterprise focusing on equipment research and development, equipment manufacturing, and service. The company has rich design and manufacturing experience and many successful performances on the ash handling, slag handling, dust removing, desulfurization and denitration for CFB boiler and pulverizing coal boiler.
Specifications:
| Model | Screwdia(mm) |
Pitch (mm) |
Max Rev.Speed (r/min) |
Capacity(m³/h) | Conveying Distance(m) |
| LS200 | 200 | 200 | 50～90 | 7～12 | 2～15 |
| LS250 | 250 | 200 | 45～90 | 10～20 | 2～20 |
| LS300 | 300 | 300 | 40～80 | 15～30 | 2～20 |
| LS400 | 400 | 300 | 35～70 | 25～55 | 2～25 |
| LS500 | 500 | 400 | 35～65 | 45～90 | 2～25 |
| Wearing Parts List: | |||||
| No. | Name | Quantity | |||
| 1 | Flight | 1 | |||
| 2 | Bearing | 2 | |||
| 3 | Nylon Pin | 8 | |||
