Screw Shaftless Conveying Equipment , Cement Screw Conveyor High Reliability

Screw Shaftless Conveying Equipment , Cement Screw Conveyor High Reliability

  • High Light

    screw conveyor machine

    ,

    chain conveyor system

  • Product Name
    Screw Shaftless Conveyor Cement / Screw Conveyor Cement Manufacturers
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    2-28TPH
  • Material
    Cement, Coal, Chemical Fertilizer, Ash
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    LS200-LS500
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Screw Shaftless Conveying Equipment , Cement Screw Conveyor High Reliability

Screw Shaftless Conveyor Cement / Screw Conveyor Cement Manufacturers



Screw Shaftless Conveyor ​Introduction:

Shaft-less screw conveyor is a fairly recent development in screw conveyor design and is growing in popularity because it is the perfect solution for many bulk solids handling applications. The shaft-less screw conveyor is the solution for conveying many difficult bulk solids. In fact, the shaft-less conveyor was so successful in the Environmental industry, that its use has been promoted in many other industries such as chemical, food, and minerals processing.

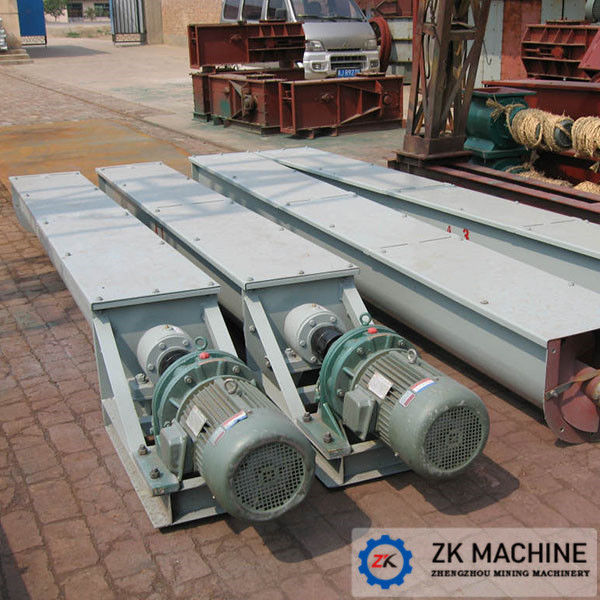

Screw Shaftless Conveying Equipment , Cement Screw Conveyor High Reliability 0
Shaft-less Screw Conveyor Application:
It is widely used in building material, metallurgy, chemical industry, electric power, coal, machinery, light industry, food and food industry, suitable for conveying powder, granule, small block material, such as cement, coal, food, chemical fertilizer, ash, sand, coke, etc.




Screw Conveyor Structure:
A shaft-less conveyor is designed to be supported by a liner that conforms to the radius of the trough. The weight of the shaft-less spiral is distributed over the full length of the spiral on the liner. The drive is connected to one end of the spiral by means of a flanged and bolted drive shaft and spiral end plate, while the tail end of the spiral is not connected and is allowed to rotate freely. If your process consists of bulk solids with high moisture content, then the shaft-less screw conveyor is a perfect solution.

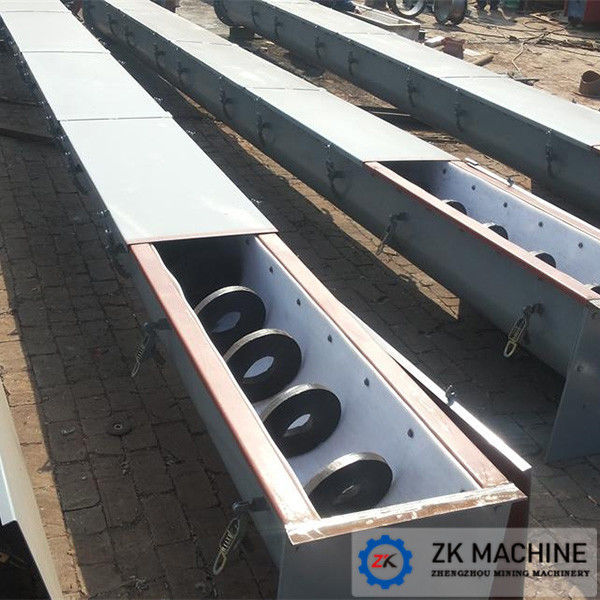

Screw Shaftless Conveying Equipment , Cement Screw Conveyor High Reliability 1



Technical Parameters:



Revolution(r/min) GX-Type Srew Conveyor
GX150 GX200 GX250 GX300 GX400 GX500 GX600
Output(m³/h)
20 0.9 2.1 4.1 7.1 16.8 32.9 56.9
30 1.3 3.2 6.2 10.7 25.3 49.4 85.3
35 1.5 3.7 7.2 12.4 29.5 57.6 99.5
45 2 4.7 9.3 16 37.9 74 127.9
60 2.6 6.3 12.3 21.3 50.5 98.7 170.6
75 3.3 7.6 15.4 26.6 63.2 123.3 213.2
90 4 9.5 18.5 32 75.8 148 255.9
LS-type screw conveyor
Model And Spec

Dia

(mm)

Pitch(mm) Top Rev(r/min) Top Output(m³/h)
Fill Coefficient
Φ=0.45 Φ=0.33 Φ=0.15
LS100 100 100 140 3 2.2 1
LS125 125 125 125 5.2 3.8 1.7
LS160 160 160 112 9.7 7.1 3.2
LS200 200 200 100 16.9 12.4 5.6
LS250 250 260 90 29.7 21.8 9.9
LS315 315 315 80 52.9 38.8 17.6
LS400 400 355 71 85.3 62.5 28.2
LS500 500 400 63 133.2 97.7 44.4
LS630 630 450 50 188.9 138.5 63
LS800 800 500 40 270.7 198.5 70.2
LS1000 1000 560 32 379 277.9 126.3
LS1250 1250 630 25 520.5 381.7 173.5

Our service: Training & Service



Pre-sale services: enthusiasm

We provide you with the prophase plan, process flow design and manufacturer equipment,

according to your special demand.

Sale services: servant

Send technicians to the jobsite for guiding the installation and adjustment, training operators

and finishing the check and accept together with you.



After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.

In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.



Screw Shaftless Conveying Equipment , Cement Screw Conveyor High Reliability 2
