Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
LS150-LS500

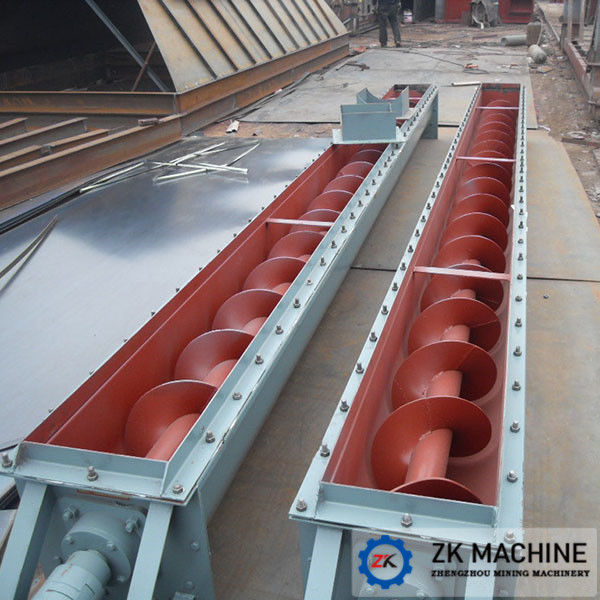

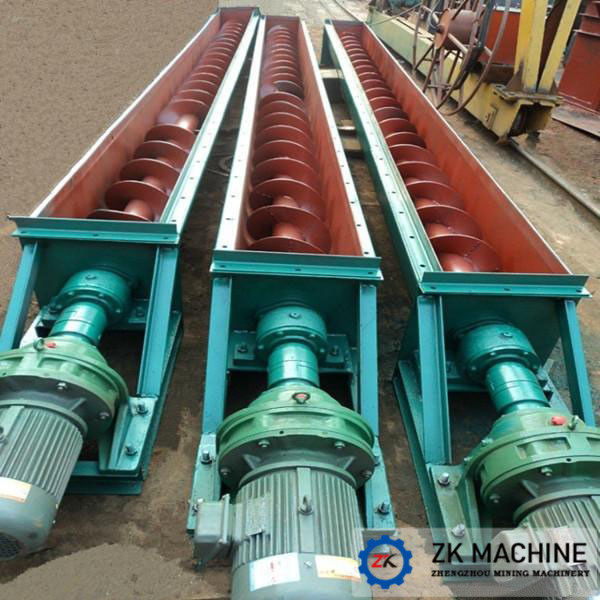

Shaftless Spiral Conveyors / Horizontal Screw Conveyor Manufacturer
Screw Conveyor Introduction:
Shaft-less screw conveyor is a fairly recent development in screw conveyor design and is growing in popularity because it is the perfect solution for many bulk solids handling applications. The shaft-less screw conveyor is the solution for conveying many difficult bulk solids. In fact, the shaft-less conveyor was so successful in the Environmental industry, that its use has been promoted in many other industries such as chemical, food, and minerals processing.
Screw Conveyor Structure:
A shaft-less conveyor is designed to be supported by a liner that conforms to the radius of the trough. The weight of the shaft-less spiral is distributed over the full length of the spiral on the liner. The drive is connected to one end of the spiral by means of a flanged and bolted drive shaft and spiral end plate, while the tail end of the spiral is not connected and is allowed to rotate freely. If your process consists of bulk solids with high moisture content, then the shaft-less screw conveyor is a perfect solution.
Our Advantages:
1. Strong anti-winding, no central axis interference. It has obvious advantages for conveying the sticky material, easy winding material.
2. Good environmental performance. It adopts fully enclosed spiral surface, which can ensure that environmental hygiene and transportation of materials from pollution, no leakage.
3. Large torque, low energy consumption. As the spiral without shaft, the material is not easy to plug, the discharge port is not blocked, which can be lower speed operation, smooth transmission, reduce energy consumption. The torque can be 4000N / m.
4. Large conveying capacity. The capacity is 1.5 times as the traditional shaft screw conveyor with the same diameter. Long conveying distance and ultra-long distance transport materials. The conveying length can reach 30 meters, which also can be adjusted according to user needs and installed by multi-level series.
Technical Parameters:
| Model | Screwdia(mm) |
Pitch (mm) |
Max Rev.Speed (r/min) |
Capacity(m³/h) | Conveying Distance(m) |
| LS200 | 200 | 200 | 50～90 | 7～12 | 2～15 |
| LS250 | 250 | 200 | 45～90 | 10～20 | 2～20 |
| LS300 | 300 | 300 | 40～80 | 15～30 | 2～20 |
| LS400 | 400 | 300 | 35～70 | 25～55 | 2～25 |
| LS500 | 500 | 400 | 35～65 | 45～90 | 2～25 |
| Wearing Parts List: | |||||
| No. | Name | Quantity | |||
| 1 | Flight | 1 | |||
| 2 | Bearing | 2 | |||
| 3 | Nylon Pin | 8 | |||
Our service: Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
