Large Angle Inclined Belt Conveyor Reliable Operation With Corrugated Sidewall Belt

Large Angle Inclined Belt Conveyor Reliable Operation With Corrugated Sidewall Belt

screw conveyor machine

belt conveyor machine

Place of Origin:

CHINA

Brand Name:

ZK

Certification:

ISO,CE

Model Number:

Inclined belt conveyor

Contact Us
Request A Quote
Product Details
Model:
DJ500-DJ800
Inclination:
30-90(°)
Capacity:
84-360(m³/h)
Max Material Size:
100-180(mm)
Applied Material:
Powdery, Granular And Other Bulk Materials
Service:
Design, Manufacturing, Sales
Shipping Port:
Shanghai, Qingdao, Tianjin
Brand Name:
ZK Corp
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Meet the shippment requirements
Delivery Time
30DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 PER MONTH
Product Description

Large Angle Inclined Belt Conveyor Reliable Operation With Corrugated Sidewall Belt





DJ Inclined Belt Conveyor Introduction:

DJ Inclined belt conveyor uses corrugated sidewall belt instead of normal belt. Its structure and working principle is same with belt conveyor, and most of its components can be used by normal belt conveyor. DJ Large angle belt conveyor can continuously convey all kinds of bulk material with bulk density 0.5~2.5t/m³at environment temperature -25℃~40℃. Maximum angle of inclination is 90°, and maximum size of the material should ≤180mm. The corrugated sidewall belt need to be replaced by belt made of special material when conveying special material. According to the flow chart, it can work alone or combine with other conveyors to make an inclined conveying system, to achieve long distance and long span material conveying. Nowadays, our products can meet the purposes and requirements of different users, and establish a good reputation in cooperation clients.

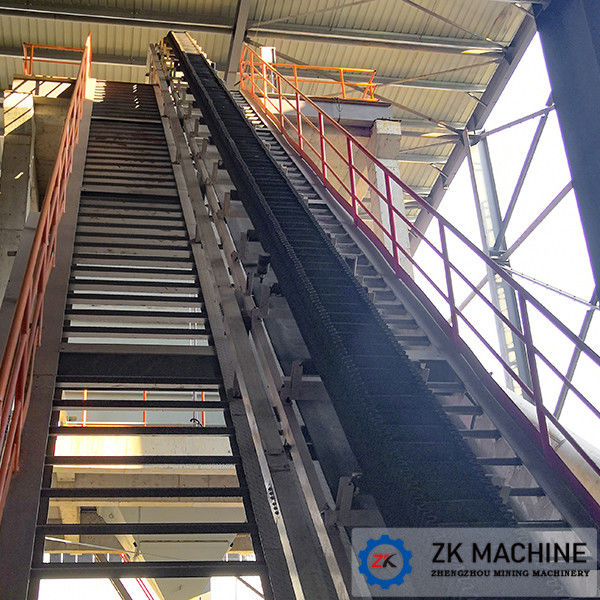

Large Angle Inclined Belt Conveyor Reliable Operation With Corrugated Sidewall Belt 0



Application of Inclined Belt Conveyor :

Usually used for conveying powdery, granular and other bulk materials in Electric power, metallurgy, building materials, light industry, food, mining and other industries.



Large angle belt conveyor is mainly consist of tension device at tail, pinch device at tail, central bracket, roller device, corrugated sidewall belt, driving device at head, cleaning device, belt adjusting device, chute and other components.

Our Advantages:
1.Reliable operation. Its reliability is almost same with normal belt conveyor.
2. With corrugated sidewall belt and diaphragm plate, its maximum angle of inclination can reach 90 degree, which will save a lot of floor space, equipment investment and construction cost. So, DJ Large angle belt conveyor is the most ideal equipment for large angle and vertical conveying.
3. Stable operation, low noise. The noise can be ignored since
4. By improving the structure of the head, we decrease the tension from 800N/mm to 400N/mm, which will extend the belt working life and reduce the maintenance costs for customer.
5. Large capacity. With corrugated sidewall belt, its capacity is larger than normal belt conveyor at same inclination.

Large Angle Inclined Belt Conveyor Reliable Operation With Corrugated Sidewall Belt 1



Specifications:



Belt

Width

(mm)

Sidewall

Height

(mm)

(mm)

Clapboards

Spacing

(mm)

Slope
      30° 35° 40° 45° 50° 55° 60° 65° 70° 75°
300 40 80 11 10 9 8 7 6 - 5 4 --
    120 8 7 6 5 - -- - - -- --
  60 126 12 10 9 8 7 6 - -5 4 -
    252 6 5 - 4 - 3 - - 4 -
  80 126 20 18 17 15 13 10 - - - 7
    252 11 10 9 8 7 - - - 8 4
400 60 126 17 15 13 12 11 10 9 8 7 6
    252 9 8 7 6 - 5 - - - -
  80 126 30 28 25 22 20 18 16 15 13 12
    252 17 15 13 11 10 9 8 - - -
  100 126 40 37 35 32 29 26 23 21 19 17
    252 24 21 19 17 15 13 12 11 - -
500 80 126 42 38 36 31 28 25 22 20 18 16
    252 23 20 18 16 14 13 12 - - -
  100 126 56 52 48 44 40 36 32 29 26 24
    252 34 29 26 23 21 19 17 15 - -
  120 126 - - - - 58 53 48 44 39 35
    252 49 44 39 34 31 28 25 23 20 -
    378 33 29 25 23 - - - - - -
650 100 126 78 73 67 61 56 50 45 41 37 33
    252 47 41 36 32 28 26 24 21 - -
  120 126 - - - - 81 75 68 61 56 50
    252 93 80 71 63 56 51 46 42 38 -
    378 61 53 47 42 - - - - - -
  160 252 93 84 75 67 60 54 49 44 40 36
    378 64 56 49 44 40 36 32 29 26 24
800 120 126 - - - - 106 98 89 80 72 65
    252 93 80 71 63 56 51 46 42 38 -
    378 61 53 47 42 - - - - - -
  160 252 127 115 103 91 82 74 67 60 54 49
    378 88 76 67 60 54 49 44 40 35 32
  200 252 - - - - 135 122 110 100 90 81
    378 144 126 111 99 89 80 72 65 60 53
    504 110 96 85 75 - - - - - -
