Shaftless Screw Conveying Equipment High Reliability Small Overall Dimension

Shaftless Screw Conveying Equipment High Reliability Small Overall Dimension

Product Details:

Place of Origin: China
Brand Name: ZK CORP
Certification: ISO,CE
Model Number: Shaftless screw conveyor

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Packing(Wooden case,Steel truss and Pallet ),suitable for sea-shipping
Delivery Time: 30Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 Per Month
Get Best Price Contact Now

Detail Information

Product Name: Stainless Steel Screw Conveyor,small Screw Conveyor,cement Screw Conveyor Manufacturer Condition: New
Material: Carbon Steel/stainless Steel Application: Metallurgical Industry
Warranty: 12 Months Motor Type: AC Motor
Voltage: 220V/380V/440V Spare Parts: Supply All Using Life
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

chain conveyor system

,

belt conveyor machine

Product Description

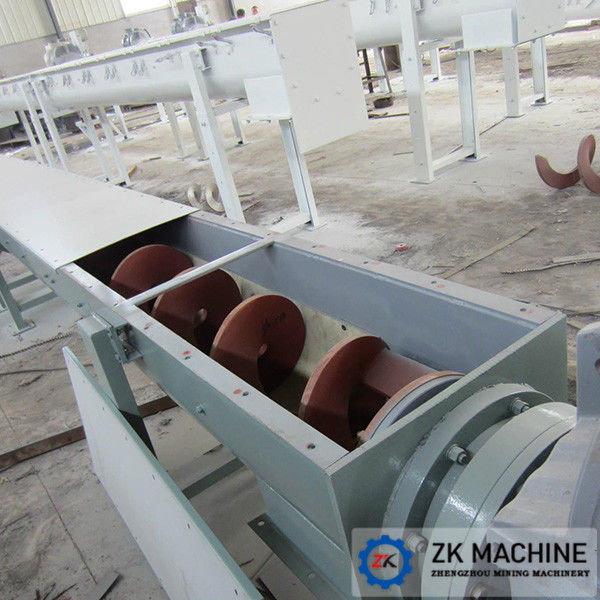

Shaftless Screw Conveyor Product Application

LSS Shaftless Screw Conveyor Introduction:

LSS series shaftless screw conveyor is mainly used in environmental protection,chemical,food,medicine,paper making,beverage and other industries for conveying strong adhesion paste viscous materials(such as: chemical raw material,waste paper pulp,malt,sludge etc.)and easy winding material(such as household garbage).
LSW series shaftless screw conveyor and the general screw conveyor conveying principle is basically the same, shaftless spiral for thicker ribbon blade(no middle pipe shaft),the spiral contact with the scaleboard at the bottom of the casing wall, by driving rotation achieve material conveying.

Shaftless Screw Conveying Equipment High Reliability Small Overall Dimension 0

Shaftless Screw Conveyor Main Features:

1) Good environmental performance,use fully enclosed and easy cleaning of the spiral surface can ensure your material is not polluted and conveying material will not leak.
2) Large capacity,throughput is 1.5 times with same diameter of the shaft screw conveyor.
3) Large torque, low energy consumption, the discharging mouth will not be blocked.
4) Long transmission distance, single conveyor length can reach 60 to 70 m.
5) Compact structure, space saving, beautiful appearance, convenient operation and economic and durable.

Shaftless Screw Conveying Equipment High Reliability Small Overall Dimension 1



LSS Shaftless Screw Conveyor Specifications:



Model

Screwdia

(mm)

Rov. Speed

(rpm)

Horizontal

Conveying

Capacity(m3/h)

Inclined

Conveying

Capacity(M3)

LSS200 160 18-25 1-1.5 Q平*(1-a)
LSS240 200 18-25 1.5-2.2 Q平*(1-a)
LSS260 220 18-25 42769 Q平*(1-a)
LSS300 260 18-25 42799 Q平*(1-a)
LSS320 280 18-25 42861 Q平*(1-a)
LSS360 320 18-25 42896 Q平*(1-a)
LSS380 340 18-25 43022 Q平*(1-a)
LSS420 380 18-25 14-20 Q平*(1-a)
LSS460 420 18-25 20-25 Q平*(1-a)
LSS500 450 18-25 25-35 Q平*(1-a)
LSS600 550 18-25 35-60 Q平*(1-a)
LSS650 600 18-25 60-85 Q平*(1-a)
