Place of Origin:
China
Brand Name:
ZK CORP
Certification:
ISO,CE
Model Number:
Spiral Screw Conveyor

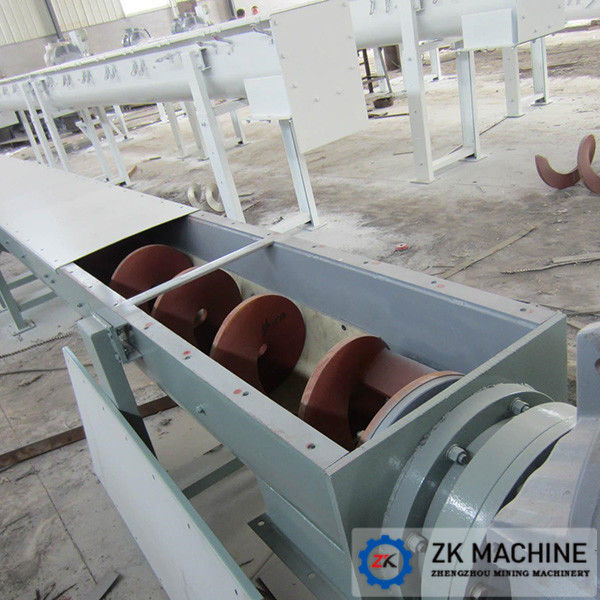

Stainless Steel Spiral Screw Conveyor for Mining Process
Stainless Steel Spiral Screw Conveyor Introduction:
Screw conveyor is a continuous conveying equipment without flexible traction. The materials are conveyed along the fixed machine inner shell and pushed forwards by the force from the rotation of the screw. Its working principle is similar as the forced still nut takes the translational motions along the screw. The forces, which prevent the materials from being rotated with the screw, include the gravity of materials and friction towards the machine shell. The screw conveyer has been widely applied in all kinds of industries to convey several of materials in the state of powder, particles and small lump, such as coal ash, cement, sand, lump coal, cereals and etc. However, it is not easy to convey the caking materials which are easy to go bad and sticky.
Screw Conveyor Characteristics:
♦ It is simple in structure and convenient to be maintained. The outer area of the cross section is not big;
♦The materials outlet can be designed in any positions of the longitudinal direction on the machine.
♦ The cover of the machine shell can be tightly closed to reach a good performance of sealing.
Technical Parameters:
| Model |
Dia of Spiral Leaf (mm) |
Screw Pitch (mm) |
Rotating Speed (r/min) |
Capacity (m³/h) |
Weight |
| GLS100 | 95 | 80 | 71～140 | 1.1～2.2 | Depending on the length |
| GLS150 | 142 | 120 | 50～64 | 1.5～3.5 | Depending on the length |
| GLS250 | 245 | 200 | 50～80 | 10～20 | Depending on the length |
| GLS315 | 296 | 300 | 40～80 | 15～35 | Depending on the length |
| GLS400 | 396 | 300 | 40～80 | 30～60 |
Depending on the length |
Why Choose Us ?
♦ Factory
We have our own factory and skilled workers, rich-experienced R&D and professional service team.
♦ Quality and Price
Our quality is built on good quality material, imported from Japan, Germany etc. We have passed ISO9001,CE, GMP. Our price is based on the quality, and we will give reasonable prices to every customer.
♦ Product Range
We can provide a wide range of products for your One-stop sourcing. Also we can customize according to your specific requirements.
♦ After-sales Service
We can give you one years after-sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller's engineer. We will send some free set of spare parts for the change.
♦ Pre-sales Consultation
Please contact us before you place orders, or need any technical support or guidance.
GLS tube screw conveyor is a continuous conveyer equipment without the flexible traction, and it is suitable for conveying small sticky powders, granular and small pieces of material, and not suitable for conveying perishable, large viscous, easy caking and large pieces of material. For continuous conveying bulk materials with short distance horizontal or slightly inclined (15°or less ). Generally ambient temperature is -20 ~ 50℃, and material temperature is less than 100℃. It can mix materials at the same time.
Application of Tube Screw Conveyor:
Be applied in metallurgical industry, building materials industry, cement industry, mechanical industry, chemical industry, electric power industry, beneficiation industry and etc.
