Place of Origin:
CHINA
Brand Name:
ZKCORP
Certification:
ISO,CE
Model Number:
JAW CRUSHER

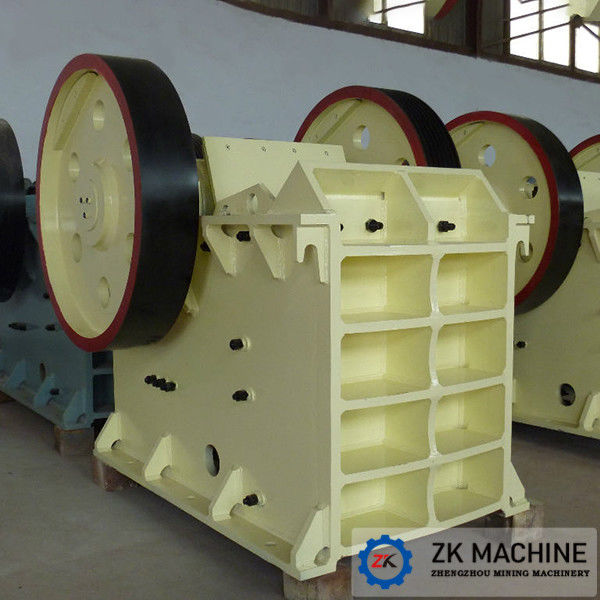

Small Size High Productivity Limestone Jaw Crusher For Sale
Introduction:
Jaw Crusher is ideally suitable for primary and secondary crushing. Jaw crusher is widely used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and our jaw crusher have the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance. The crushing strength of the jaw crusher materials is up to 320 Mpa. JBS river stone crusher is easy to install, operate and maintain.,
Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries
Specifications:
Model |
Feed Inlet Size (mm) |
Max Feed Size (mm) |
Discharge Size Range (mm) |
Capacity (m3/h ) |
Motor Power (kw) |
PE-250x400 | 250x400 | 210 | 20-60 | 3-13 | 15 |
PE-400x600 | 400x600 | 340 | 40-100 | 10-35 | 30 |
PE-500x750 | 500x750 | 425 | 50-100 | 25-60 | 55 |
PE-600x900 | 600x900 | 500 | 65-180 | 30-85 | 55-75 |
PE-750x1060 | 750x1060 | 630 | 80-180 | 72-150 | 90-110 |
PE-800x1060 | 800x1060 | 680 | 100-200 | 85-143 | 90-110 |
PE-870x1060 | 870x1060 | 750 | 170-270 | 145-235 | 90-110 |
PE-900x1060 | 900x1060 | 780 | 200-290 | 170-250 | 90-110 |
PE-900x1200 | 900x1200 | 780 | 95-255 | 100-240 | 110-132 |
PE-1000x1200 | 1000x1200 | 850 | 195-280 | 190-275 | 110-132 |
PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 250-500 | 160 |
PEX-150x500 | 150x500 | 120 | 10-40 | 3-15 | 11 |
PEX-150x750 | 150x750 | 120 | 10-40 | 5-16 | 18.5 |
PEX-250x750 | 250x750 | 210 | 15-50 | 8-35 | 30 |
PEX-250x1000 | 250x1000 | 210 | 15-50 | 13-45 | 37 |
PEX-250x1200 | 250x1200 | 210 | 15-50 | 13-50 | 37 |
PEX-300x1300 | 300x1300 | 250 | 15-50 | 20-60 | 75 |
Working Principle
The strip and strip pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces. It will become bigger when the movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole and spring ,then the end products come out from the crushing cavity.
Product Name | Stone Jaw crusher, primary jaw crusher, fine jaw crusher |
Material | Q345, 45# steel, Manganese casting parts |
Color | Blue, yellow, orange, red, gray, etc |
Capacity | 70-800tph |
Power | Electricity, diesel generator |
Usage | stone crushing for mining, construction |
Function | Primary to reduce the size of raw materials |
Application | limestone, granite, basalt, metal mine etc. |
