Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
According to different models

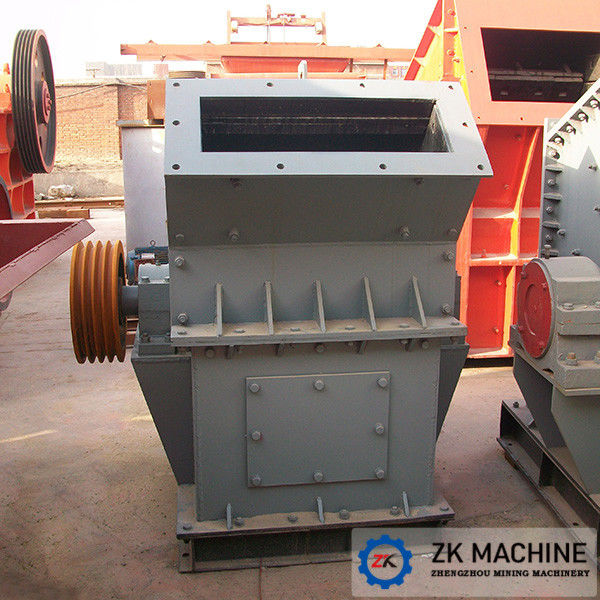

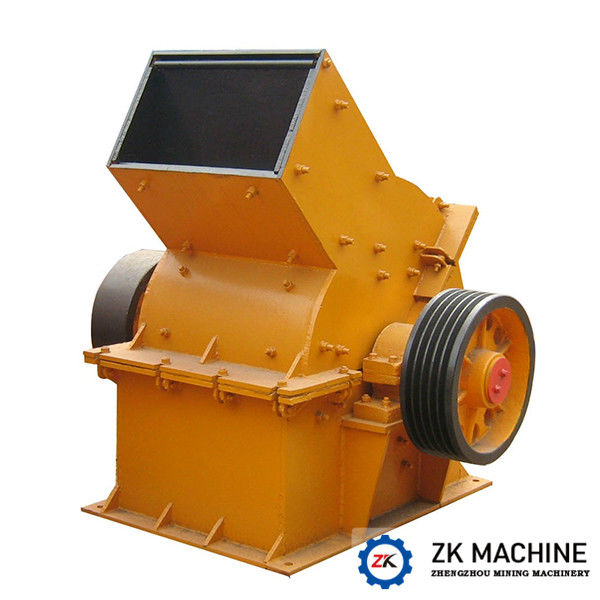

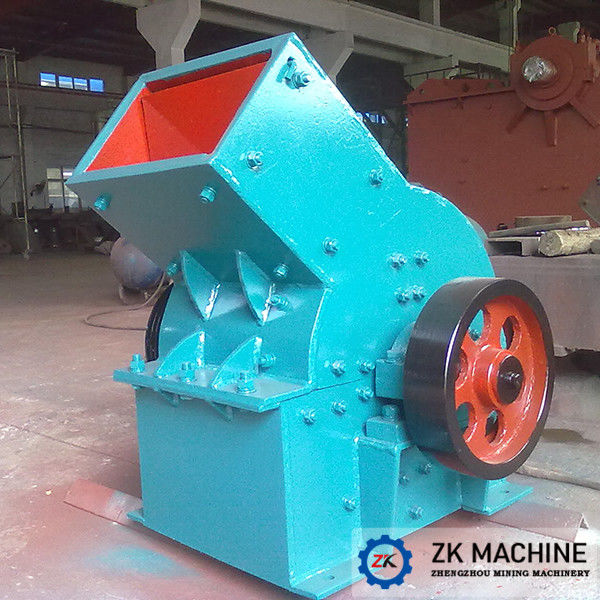

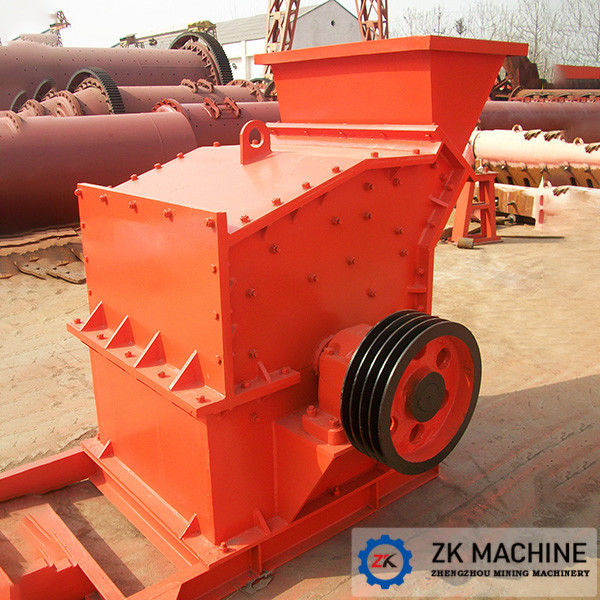

High Efficiency PC600x400 Gypsum Limestone Hammer Crusher Machine For Sale
Hammer Crusher Introduction:
Hammer Crusher is a kind of impact and rotor crusher with ring hammers. When the material enters into the crusher, it will be crushed by the high speed ring hammer firstly. Crushed materials obtain kinetic energy from ring hammer at the same time, rush to the breaking plate with high speed, by the second break, then fell on the screen plate, materials is crushed further by cutting, pressure, grinding from ring hammer and interaction each other, discharged from screen. The sundries cannot be crushed come into the metal collector, cleaning regularly.
Hammer Crusher Applied Material:
various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries.
Application of Hammer Crusher:
Hammer Crusher is used to crush brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100Mpa; the surface water no more than 15%.
Our Hammer Crusher Advantages:
1. It has large crushing ratio (normally is 10-25, or up to 50), high production capacity, even particles size, less over crushing phenomenon, simple structure, high weight and easy operation;
2. It can break material with size of 600-1800mm directly into size of 25mm or below.
Our Hammer Crusher Specifications:
| Model | Feed size(mm) | Discharge size(mm) | capacity(m³/h) | Motor power (kw) | weight(t) | Dimensions(L×W×H)(mm) |
| PCΦ400×300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900×670×860 |
| PCΦ600×400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200×1050×1200 |
| PCΦ800×600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310×1180×1310 |
| PCΦ1000×800 | ≤350 | ≤35 | 25-50 | 75 | 5.9 | 1600×1390×1575 |
| PCΦ1000×1000 | ≤350 | ≤35 | 30-55 | 90 | 8 | 1800×1590×1775 |
| PCΦ1200×1200 | ≤350 | ≤35 | 50-80 | 132-160 | 19.2 | 2060×1600×1890 |
| PCΦ1400×1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2365×1870×2220 |
| PCΦ1600×1600 | ≤350 | ≤35 | 100-150 | 480 | 37.5 | 3050×2850×2800 |
