Place of Origin:
CHINA
Brand Name:
ZK Corp
Certification:
ISO,CE
Model Number:
Mini jaw crusher

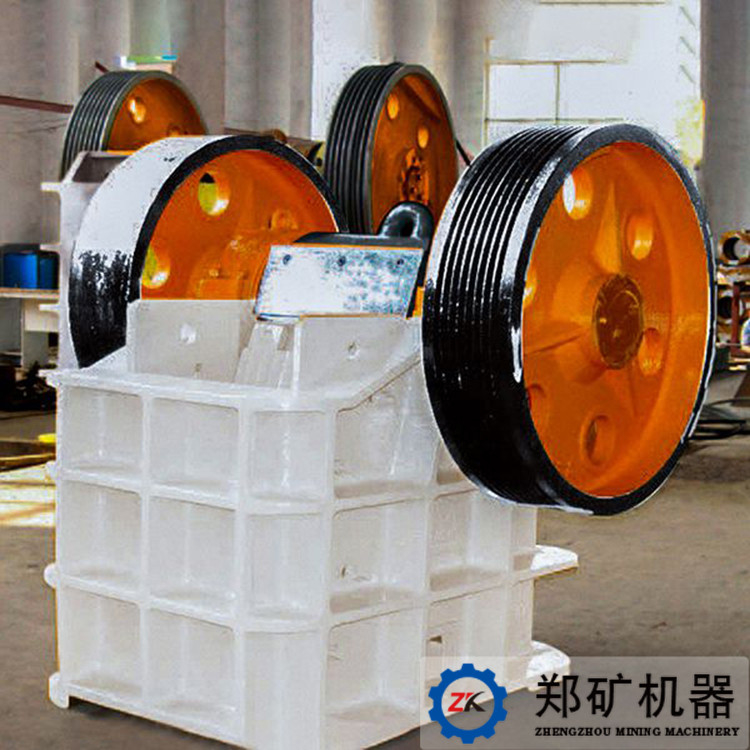

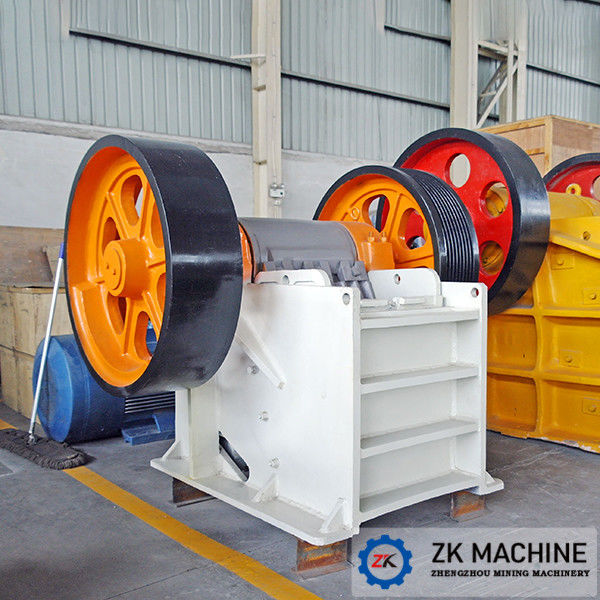

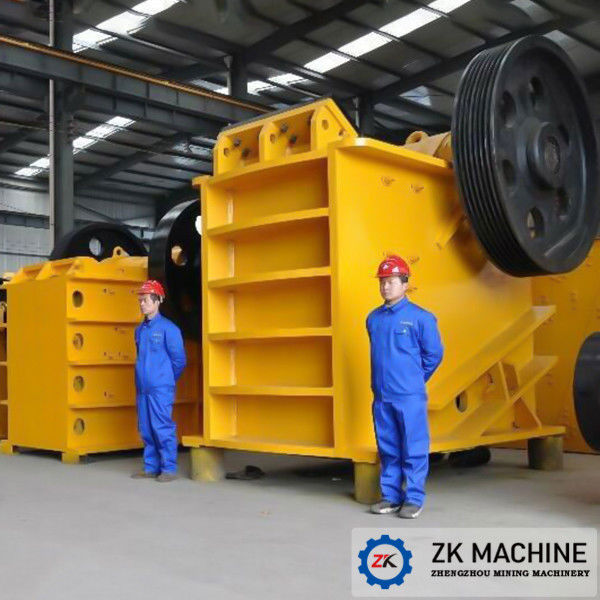

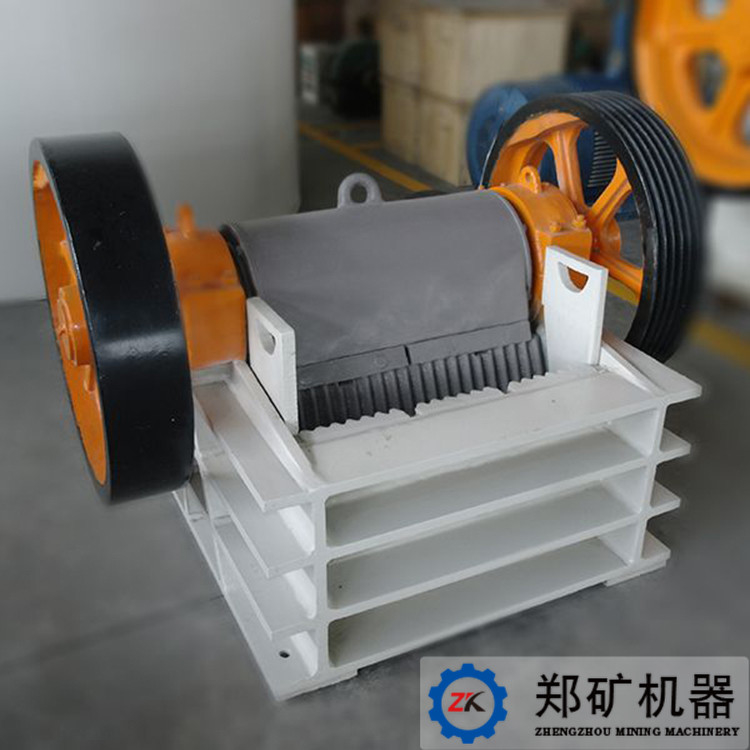

PE Series 600x 900 Jaw Crusher Machine High Efficiency Reliable Working Conditions
Our jaw crushers can meet most capacity requirements in pirmary and secondary crushing and widely applied in areas of mining, smelting, construction material, high way, water conservancy and chemical industries with compression strength of no more than 320mpa. It hasmany advantages, such as big reduction ratio, equal product graularity, simple structure, reliable working conditions, convenient maintenance and economical operation.
1. High quality: Unique jaw head structure sealed guarantee extend bearing life.
2. Deep cavity broken: High crushing ratio, even output granularity.
3. High strength: The crusher has large capacity and big stength.
4. High bearing capacity: The bearing pedestal adopts unitary cast steel structure.
5. Outlet easy operation: More advanced movable jaw assembly makes it more durable.
6. Unique flywheel design: Effecively reduce the vibration the machine running more smoothly.
Be applied in large block of material crushing in mining industry, metallurgical industry, construction industry, highway, railway, water, and chemical industry.
| Model |
Feed Inlet Size (mm) |
Max Feed Size (mm) |
Discharge Size Range (mm) |
Capacity (m3/h ) |
Motor Power (kw) |
| PE-250x400 | 250x400 | 210 | 20-60 | 3-13 | 15 |
| PE-400x600 | 400x600 | 340 | 40-100 | 10-35 | 30 |
| PE-500x750 | 500x750 | 425 | 50-100 | 25-60 | 55 |
| PE-600x900 | 600x900 | 500 | 65-180 | 30-85 | 55-75 |
| PE-750x1060 | 750x1060 | 630 | 80-180 | 72-150 | 90-110 |
| PE-800x1060 | 800x1060 | 680 | 100-200 | 85-143 | 90-110 |
| PE-870x1060 | 870x1060 | 750 | 170-270 | 145-235 | 90-110 |
| PE-900x1060 | 900x1060 | 780 | 200-290 | 170-250 | 90-110 |
| PE-900x1200 | 900x1200 | 780 | 95-255 | 100-240 | 110-132 |
| PE-1000x1200 | 1000x1200 | 850 | 195-280 | 190-275 | 110-132 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 250-500 | 160 |
| PEX-150x500 | 150x500 | 120 | 10-40 | 3-15 | 11 |
| PEX-150x750 | 150x750 | 120 | 10-40 | 5-16 | 18.5 |
| PEX-250x750 | 250x750 | 210 | 15-50 | 8-35 | 30 |
| PEX-250x1000 | 250x1000 | 210 | 15-50 | 13-45 | 37 |
| PEX-250x1200 | 250x1200 | 210 | 15-50 | 13-50 | 37 |
| PEX-300x1300 | 300x1300 | 250 | 15-50 | 20-60 | 75 |
Product Packaging:
The product will be securely packed in a durable cardboard box with appropriate cushioning materials to prevent any damage during transportation. The product will be labeled with the necessary information including product name, quantity, and handling instructions.
Shipping:
We offer worldwide shipping for the product. The shipping cost will vary depending on the destination and the quantity of the product ordered. We will use reliable shipping carriers to ensure timely delivery of the product to our customers. Once the product is shipped, a tracking number will be provided to the customer for easy tracking of the product delivery status.
