Double Roller Granulator Dia 565mm 6TPH Granulation Equipment

Double Roller Granulator Dia 565mm 6TPH Granulation Equipment

  • High Light

    6TPH Granulation Equipment

    ,

    Dia 565mm Granulation Equipment

    ,

    6TPH Double Roller Granulator

  • Product Name
    High Rate Of Finished Products Double Roller Granulator
  • Model
    DG Series Double Roller Granulator
  • Dia (mm)
    285- 565
  • Material
    Powder Or Small Particle Material
  • Spare Parts
    Supply All Using Life
  • Shipping Port
    Shanghai, Qingdao, Tianjin
  • Business Scope
    Design, Manufacturer, Onsite Guidance
  • Warranty
    12 Months
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    ZK Series
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    35 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union,
  • Supply Ability
    25 Set / Sets per Month

Double Roller Granulator Dia 565mm 6TPH Granulation Equipment

High Production Capacity Granulation Equipment /Double Roller Granulator Simple Structure





Double Roller Granulator Introduction:

The Double Roller Granulator is designed by Henan Zhengzhou Mining Machinery Co., Ltd. It is an efficient granulating equipment for granulating powder and small particles.



After more than four years of development, the roller granulator produced by Henan Zhengzhou Mining Machinery Co., Ltd. has undergone several generations of changes and is now very mature. It is widely used in bauxite, coal powder, limestone, coal gangue, shale, Granulation of clay etc.



This type of Double Roller Granulator has significant advantages such as uniform discharge, high yield, large output, compact structure, reasonable layout, and small footprint. At present, it is mainly used in the ceramsite industry, which can fully meet the requirements of sludge ceramsite, shale ceramsite, and fly ash ceramsite for granulation technology.

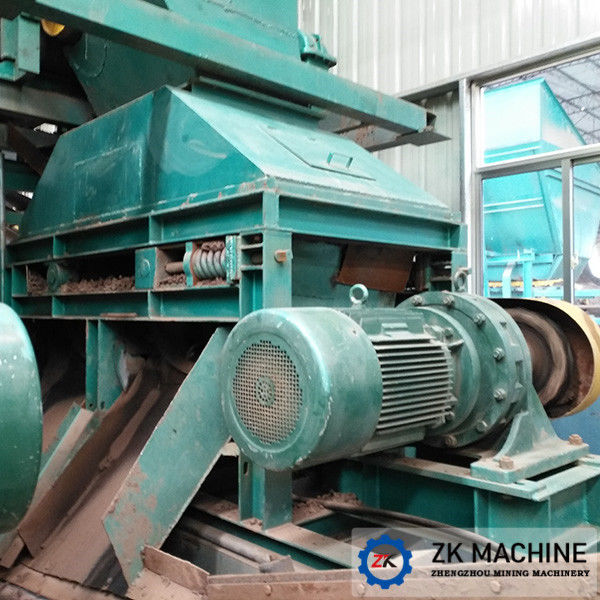

Double Roller Granulator Dia 565mm 6TPH Granulation Equipment 0

Double Roller Granulator Structure:

The equipment is mainly composed of frame, fixed roller device, movable roller device, transmission device and so on. The structure is simple, stable and reliable, easy to clean and maintain, low energy consumption and long life. It is an ideal granulating equipment in the ceramsite industry.



The pair of roller granulator is a motor that uses a belt to drive a speed reducer, and then a chain drives a fixed roller and a movable roller to rotate synchronously. The material is squeezed between the two rollers from above, and the material is squeezed from the round hole on the roller. Out. At the same time of squeezing, it can also discharge the air between the material particles, increasing the density and strength of the particles.

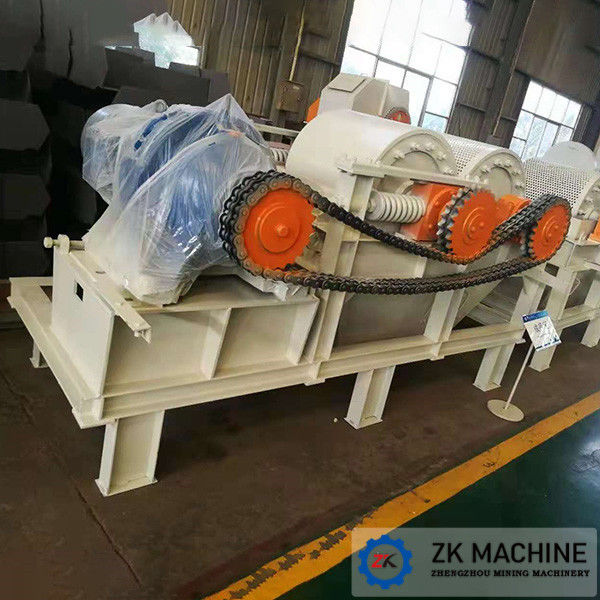

Double Roller Granulator Dia 565mm 6TPH Granulation Equipment 1


Therefore, the roller skin, as an important vulnerable part of the roller granulator, is in direct contact with the material and participates in the whole process of granulation. It is affected by the friction between the roller skin and the roller skin, the reaction force of the material in the crushing process, and the material passes through the roller. As time goes by, the friction force of the skin, such as the thickness of the roller skin becomes thinner, the diameter of the hole expands, and the granulation holes are blocked by metal, which affects the granulation efficiency, the strength of the pellets, and the increase of scrap and burrs. At this time, the roller belt needs to be replaced.


The roller skin is installed on the fixed roller and the movable roller. The roller skin and the bracket are installed separately and fixed by bolts, which can be easily disassembled and replaced.



Double Roller Granulator Dia 565mm 6TPH Granulation Equipment 2

Double Roller Granulator Specifications:

Model Roller Motor Power(kW) Capacity(t/h)

Diameter

(mm)

Length

(mm)

Rotating Speed (r/min)
DG3530 φ350 300 58 5.5 1
DG4035 φ400 350 58 7.5 1-2
DG4540 φ450 400 58 11 2-3
DG5045 φ500 450 58 15 3-4
DG6055 φ600 550 65 18.5 5-6
