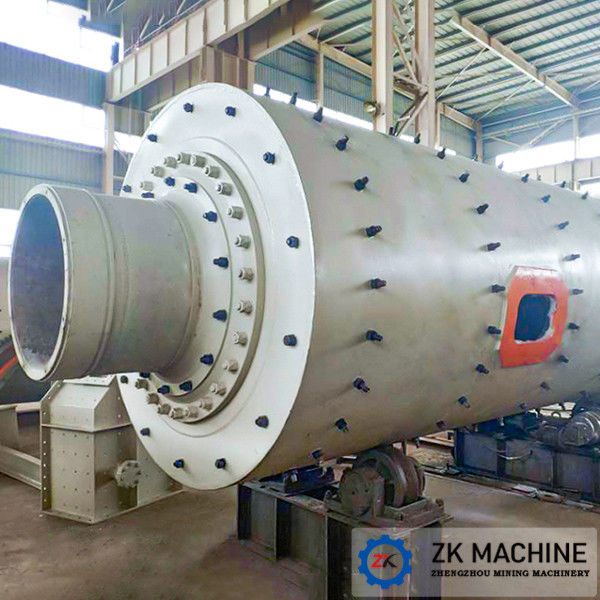

25t/H Continuous Ball Mill Equipment For Powder Making
Product Details:
| Place of Origin: | China |
| Brand Name: | ZK |
| Certification: | CE ISO Certification |
| Model Number: | MQG900X1800,MQG3000x9000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard container or as customers' requirements |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set / Sets per Month |
|
Detail Information |
|||
| Brand Name: | ZK Corp | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 12 Months |
| Capacity: | 0.8-25t/h | Material: | Cement, Iron Ore, Copper Ore |
| Motor Type: | AC Motor | Spare Parts: | Supply All Using Life |
| Voltage: | 220V/380V/440 | ||
| High Light: | 25t/H Continuous Ball Mill,Wear Resistant Continuous Ball Mill,380V High Strength Continuous Ball Mill |
||
Product Description
New Technology Energy Saving China Ball Mill Supplier from China
Introduction:
Ore ball mill is suitable for grinding various ores and other materials. It is widely used for ore grinding, non-ferrous metal beneficiation, new-type building material producing. According to the discharge method, the ball mill divided to dry-type mill and wet-type mill.
Our Advantage:
1. Liner is made of high-quality wear resistant material with high strength, wear resistance and long working life;
2. High grinding efficiency, low consumption; Product fineness is adjustable and uniform;
3. Low energy consumption, low wear, low operating costs;
4. Small vibration, low noise, environmental friendly;
Working Principle:
Ore Ball mill is mainly consisting of feeding device, big gear, discharge device, cylinder, diaphragm plate, hollow shaft, liner, drive device and other components.
1. The feeding device is consisting of inlet chute and screw. There are liners in the inlet chute, which can extend the working life of the feeding device.
2. There is pre-gap on the inlet hallow shaft, that can reduce the tolerance which is made of temperature changes and installation mistake to ensure the gear mesh.
3. Inside the ball mill, different parts have different liner structure, which will greatly improve the grinding efficiency.
4. Dry-type ball mill adopt sliding bearing, which is good of strength, ductility, antifriction, abrasion resistance, lubricity and thermal conductivity. It is able to meet the lubrication requirements of the hollow shaft. That is suitable for the environment of low speed and heavy load in metallurgical & ore dressing industry.
5. Wet-type ball mill adopt roller bearing, reduce useless work consumption and easy to replace.
Technical Specifications:
| model | cylinder rev(r/min) | grind media weight (t) | feeding size(mm) | output size(mm) |
output (t/h) |
motor | |
| type | power | ||||||
| MQG900X1800 | 38 | 1.8 | ≦25 | 0.074-.06 | 0.8-1 | Y255M-8 | 22 |
| MQG900X3000 | 37.4 | 2.7 | ≦25 | 0.074-0.3 | 0.8 | Y225M-6 | 30 |
| MQG1200x2400 | 32 | 4.8 | ≦25 | 0.074-.06 | 1.5-2 | Y280M-8 | 45 |
| MQG1200X4500 | 30 | 5.2 | ≦25 | 0.074-.06 | 1.5 | Y280M-6 | 55 |
| MQG1500x4500 | 28.8 | 10 | ≦25 | 0.074-0.4 | 3-4 | JR126-8 | 110 |
| MQG1500x5700 | 28.8 | 12 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1500x6400 | 28.8 | 13 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1830x5400 | 24.5 | 15 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG18306400 | 24.5 | 19 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG1830x7000 | 24.5 | 20 | ≦25 | 0.074-0.4 | 6-8 | JR138-8 | 245 |
| MQG2200x7000 | 21.6 | 30 | ≦25 | 0.074-0.8 | 8-10 | JR158-8 | 380 |
| MQG2200x9000 | 21.4 | 34 | ≦25 | 0.074-0.8 | 8-10 | JR1510-8 | 475 |
| MQG2400x7000 | 20.4 | 36 | ≦25 | 0.074-0.8 | 10-14 | JR1510-8 | 475 |
| MQG2400x8000 | 20.4 | 42 | ≦25 | 0.074-0.8 | 10-14 | YR630-8 | 560 |
| MQG2600x8000 | 19.6 | 52 | ≦25 | 0.074-0.8 | 16-20 | JR1512-8 | 630 |
| MQG3000x9000 | 18.3 | 78 | ≦25 | 0.074-0.8 | 20-25 | YR1000-8/1180 | 1000 |
