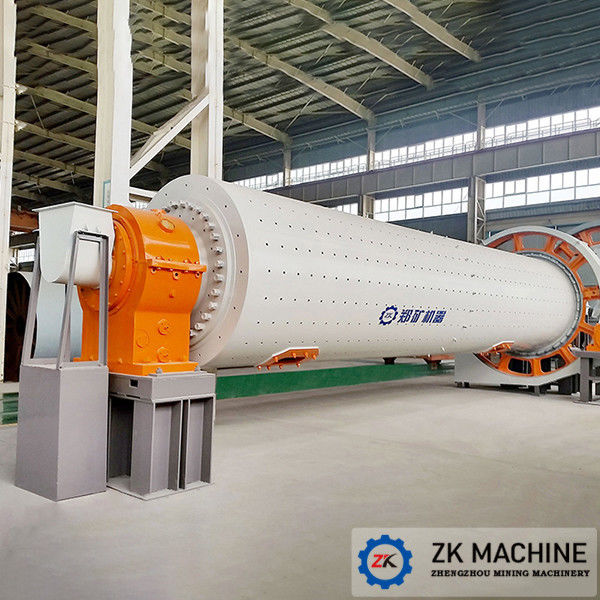

Zirconia Ball Mill Grinder Space Saving Multifunctional For Iron Ore Cement Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | ZK |
| Certification: | CE ISO Certification |
| Model Number: | Ф1.2x4.5-Ф4.2x13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard container or as customers' requirements |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set / Sets per Month |
|
Detail Information |
|||
| Models: | Customized Sizes | Material: | Mining , Ceramic, Steel Slag, Aluminum |
|---|---|---|---|
| Capacity: | 1.7-73（t/h） | Grinding Media: | 5-118（t） |
| Payment Terms: | L/C, D/P, D/A, T/T, Western Union, MoneyGram | Shipping Port: | Shanghai,Qingdao,Tianjin |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | Local Voltage |
| High Light: | Zirconia Ball Mill Grinder,Multifunctional Continuous Ball Mill,Iron Ore Cement Continuous Ball Mill |
||
Product Description
Zirconia Ball Mill Grinding Media for Iron ore, Cement Plant
Introduction:
This ball mill is a key machine and mainly used to process materials from crushing process. It is widely used in various manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics. Besides, it can also be used in dry and wet grinding for all kinds of ores and other grindable materials.
There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine. ZK CORP is a famous cement ball mill in mining machinery manufacturer.
1. The hollow axis adopts the cast steel and the lining can replace , the rotating big gear processes in the way of casting rolling gear;
2. The barrel body is wearable well and bears wearable scaleboard;
3. This machine run steadily and works reliably;
4. Liner of ball mill is made of high-quality wear resistant material with high strength, wear resistance and long working life.
Working Principle:
This Ball Grinding Mill is horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside runs along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse, there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force. Meanwhile, the steel ball is carried to some height and falls to make the material grinding and striking. After grinded coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scaleboard. In the end, the powder is discharged by output material board andthe end products are completed.
Technical Data:
| Model (m) | Capacity (t/h) |
Revolving Speed (r/min) |
Grinding Media Loading (t) |
Motor | Gear Box |
Weight (t) |
||
|
Model |
Power (kW) |
Model |
Ratio |
|||||
| Φ2.2×6.5 | 8-9 | 21.4 | 30 | JRQ158-8 YR630-8 | 380 | ZD70-9 | 5 | 46.2 |
| Φ2.2×6.5 | 14 Closed circuit | 21.4 | 30 | JRQ158-8 YR630-8 | 380 | ZD70-9 | 5 | 46.2 |
| Φ2.2×7 | 12 | 21.4 | 30 | JR158-8 | 380 | ZD70-9 | 5 | 54 |
| Φ2.2×7.5 | 13 | 21.4 | 32 | JR158-8 | 380 | ZD70-9 | 5 | 63 |
| Φ2.2×8 | 11-12 | 21.4 | 37 | JR158-8 | 380 | ZD70-9 | 5 | 65 |
| Φ2.2×9.5 | 14-16 Closed circuit | 21.4 | 43 | JR1510-8 | 475 | ZD70-9 | 5 | 70 |
| Φ2.2×13 | 16 | 20.3 | 55 | YR630-8/1180 Y100L-8 |
630/11 |
JD630 ZS82.5-7 |
6.3 99.96 |
114.4 |
