Gold Chains Hammer Mill Crusher Reasonable Structure Convenient Maintenance

Gold Chains Hammer Mill Crusher Reasonable Structure Convenient Maintenance

  • High Light

    jaw stone crusher

    ,

    stone crushing equipment

  • Type
    Hammer Crusher
  • Capacity
    50-500(t/d)
  • Weight
    Based On The Model
  • Motor Type
    AC Motor
  • Application
    Quarry, Highway, Ore
  • Dimension(l*w*h)
    Various
  • Spare Parts Supply
    Will Supply Any Time
  • Discharge Size
    ≤15 Mm
  • Processing Material
    Ore, Stone, Quarry Crushing
  • Test&installation
    Senior Professional Engineers Assigned
  • Processing Materials
    Various Rocks, Ores, Limestone, Construction Waste, Etc., Used In The Crushing Of Bulk Materials In Metallurgy, Building Materials, Mining, Highway, Mineral Processing And Other Industries
  • Place of Origin
    China
  • Brand Name
    ZK CORP
  • Certification
    CE ISO Certification
  • Model Number
    Various models
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    45 Set / Sets per Month

Gold Chains Hammer Mill Crusher Reasonable Structure Convenient Maintenance

Gold Chains Hammer Mill Crusher Reasonable Structure Convenient Maintenance

Introduction

Hammer crusher, also known as hammer mill, is designed to grind various types of material into fine particles. Hammer crusher machine can support the crushing of materials with a maximum compressive resistance of 100Mpa such as coal, salt, chalk, gypsum, blocks, limestone, etc.

Hammer Mill Crusher Working Principle

The main part of hammer crusher is rotor. Rotor consists of main shaft, disc, pin roll and hammer. Motor drives rotor to rotate at a high speed. Materials are fed into crusher and crushed by the rotor. There is a screen deck at the bottom of rotor, the products that reach the target may discharged through screen deck, and the coarse particles may stay on the deck for crushing until reach the target.

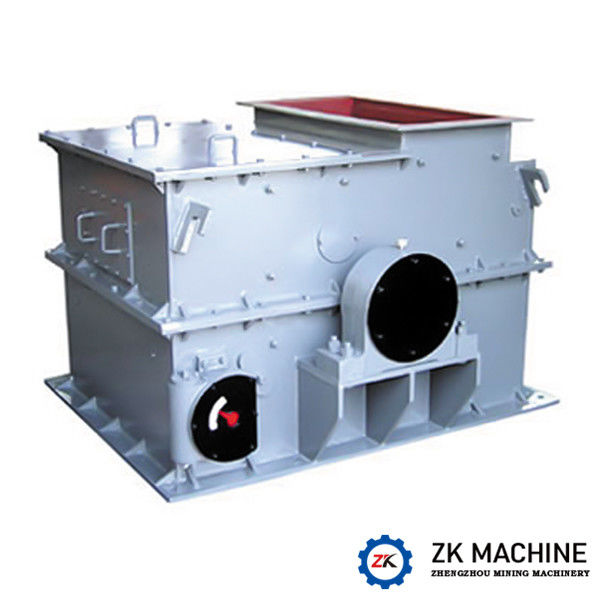

Gold Chains Hammer Mill Crusher Reasonable Structure Convenient Maintenance 0



Hammer Mill Crusher Application
Hammer Crusher is used to crush brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100Mpa; the surface water no more than 15%.



Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries.



Hammer Mill Crusher Advantages



1. It has large crushing ratio (normally is 10-25, or up to 50), high production capacity, even particles size, less over crushing phenomenon, simple structure, high weight and easy operation;



2. It can break material with size of 600-1800mm directly into size of 25mm or below.





Gold Chains Hammer Mill Crusher Reasonable Structure Convenient Maintenance 1



Hammer Mill Crusher Specification:



Model Rotor model (mm) Max feed size(mm) Discharge size (mm) Motor model Power
(kW)
Capacity (t/h)
PCH-0402 400x200 200 ≤30 Y132M2-6 5.5 8-12
PCH-0404 400x400 200 ≤30 Y160L-6 11 16-25
PCH-0604 600x400 200 ≤30 Y180L-6 15 22-33
PCH-0606 600x600 200 ≤30 Y225M-6 30 30-60
PCH-0808 800x800 200 ≤30 Y280M-8 45 75-105
PCH-1010 1000x1000 300 ≤30 Y315M2-8 90 110 160-200
Y315M3-8 200-245
PCH-1016 1000x1600 300 ≤30 Y312-8 155 220 300-350
Y400-8 400-500
PCH-1216 1200x1600 400 ≤30 Y400-8 280 355 500-620
Y450-8 620-800
PCH-1221 1200x2100 400 ≤30 Y450-8 450 800-1000
