Mini Stone Crusher Machine High Efficiency Reliable Working Conditions

Mini Stone Crusher Machine High Efficiency Reliable Working Conditions

jaw stone crusher

rock crusher machine

Place of Origin:


Brand Name:

ZK Corp



Model Number:

Mini jaw crusher

Contact Us
Request A Quote
Product Details
Based On The Model
Jaw Crusher,Impact Crusher,Hammer Crusher,Two Stage Hammers,Roller Crusher
Motor Type:
AC Motor
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Spare Parts Supply:
Will Supply Any Time
Max Feeding Size:
Processing Materials:
Various Rocks, Ores, Limestone, Construction Waste, Etc., Used In The Crushing Of Bulk Materials In Metallurgy, Building Materials, Mining, Highway, Mineral Processing And Other Industries
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Export standard container or as customers' requirements
Delivery Time
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
Product Description


Mini Stone Crusher Machine High Efficiency Reliable Working Conditions


Overview of Stone Crusher

Our jaw crushers can meet most capacity requirements in pirmary and secondary crushing and widely applied in areas of mining, smelting, construction material, high way, water conservancy and chemical industries with compression strength of no more than 320mpa. It hasmany advantages, such as big reduction ratio, equal product graularity, simple structure, reliable working conditions, convenient maintenance and economical operation.


Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries

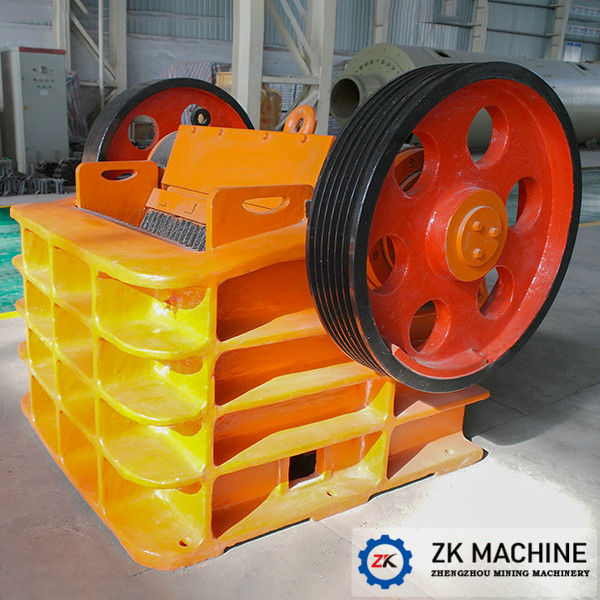

Mini Stone Crusher Machine High Efficiency Reliable Working Conditions 0




1. High quality: Unique jaw head structure sealed guarantee extend bearing life.

2. Deep cavity broken: High crushing ratio, even output granularity.

3. High strength: The crusher has large capacity and big stength.

4. High bearing capacity: The bearing pedestal adopts unitary cast steel structure.

5. Outlet easy operation: More advanced movable jaw assembly makes it more durable.

6. Unique flywheel design: Effecively reduce the vibration the machine running more smoothly.

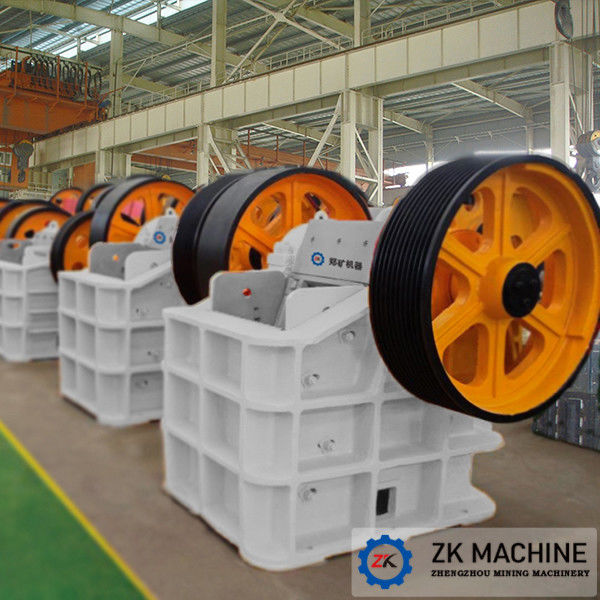

Mini Stone Crusher Machine High Efficiency Reliable Working Conditions 1

Main Technical Parameters

Feed Inlet Size


Max Feed
Size (mm)

Discharge Size

Range (mm)

(m3/h )
Motor Power
PE-250x400 250x400 210 20-60 3-13 15
PE-400x600 400x600 340 40-100 10-35 30
PE-500x750 500x750 425 50-100 25-60 55
PE-600x900 600x900 500 65-180 30-85 55-75
PE-750x1060 750x1060 630 80-180 72-150 90-110
PE-800x1060 800x1060 680 100-200 85-143 90-110
PE-870x1060 870x1060 750 170-270 145-235 90-110
PE-900x1060 900x1060 780 200-290 170-250 90-110
PE-900x1200 900x1200 780 95-255 100-240 110-132
PE-1000x1200 1000x1200 850 195-280 190-275 110-132
PE-1200x1500 1200x1500 1020 150-300 250-500 160
PEX-150x500 150x500 120 10-40 3-15 11
PEX-150x750 150x750 120 10-40 5-16 18.5
PEX-250x750 250x750 210 15-50 8-35 30
PEX-250x1000 250x1000 210 15-50 13-45 37
PEX-250x1200 250x1200 210 15-50 13-50 37
PEX-300x1300 300x1300 250 15-50 20-60 75
