Big Reduction Ratio Limestone Crusher Machine Simple Structure For River Sand Coal

Big Reduction Ratio Limestone Crusher Machine Simple Structure For River Sand Coal

stone crushing equipment

rock crusher machine

Place of Origin:

CHINA

Brand Name:

ZK CORP

Certification:

ISO,CE

Model Number:

Lime stone crusher

Contact Us
Request A Quote
Product Details
Weight:
Based On The Model
Type:
Jaw Crusher,Impact Crusher,Hammer Crusher,Two Stage Hammers,Roller Crusher
Motor Type:
AC Motor
Application:
Mining,Quarry,highway,Ore,chemical Industry And Construction
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Spare Parts Supply:
Will Supply Any Time
Installation:
Engineer Guide
Capacity(t/h):
5-500t/h
Dimension(l*w*h):
Various
Power(w):
15-160 KW
Processing Materials:
Various Rocks, Ores, Limestone, Construction Waste, Etc., Used In The Crushing Of Bulk Materials In Metallurgy, Building Materials, Mining, Highway, Mineral Processing And Other Industries
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
MEET THE SHIPPMENT REQUIRMENTS
Delivery Time
30DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
30 PER MONTH
Product Description



Big Reduction Ratio Limestone Crusher Machine Simple Structure For River Sand Coal

Jaw crusher is a large kind of complex tilting crushing equipment, and it is mainly used for crushing medium hard ore and rock whose compression strength is no more than 250MPa, and with the quality of large crushing ratio, high yield, uniform particle size, reliable, easy to maintain and low operating cost, it is widely used in mining, metallurgy, construction, roads, railways, water conservancy, chemical industry and etc. PE series is used for coarse crushing different kinds of ores and rocks, and PEX series is used for intermediate and fine crushing.



The seroius of our jaw crushers can meet most capacity requirements in pirmary and secondary crushing and widely applied in areas of mining, smelting, construction material, high way, water conservancy and chemical industries with compression strength of no more than 320mpa. It hasmany advantages, such as big reduction ratio, equal product graularity, simple structure, reliable working conditions, convenient maintenance and economical operation.



Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries

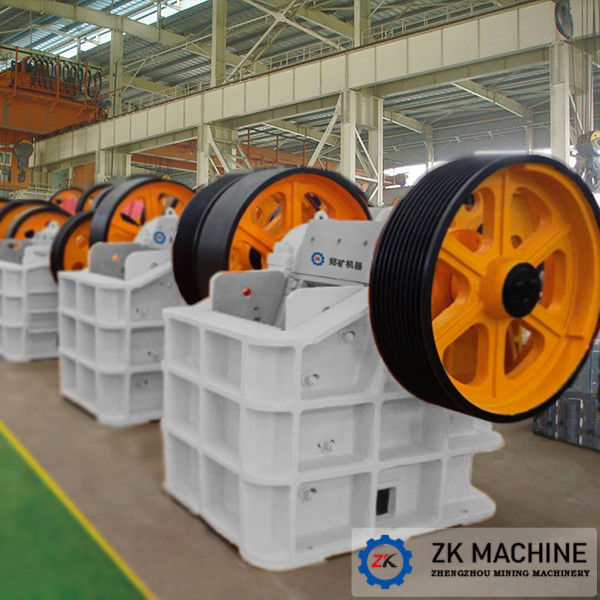

Big Reduction Ratio Limestone Crusher Machine Simple Structure For River Sand Coal 0



Features:



1. High quality: Unique jaw head structure sealed guarantee extend bearing life.

2. Deep cavity broken: High crushing ratio, even output granularity.

3. High strength: The crusher has large capacity and big stength.

4. High bearing capacity: The bearing pedestal adopts unitary cast steel structure.

5. Outlet easy operation: More advanced movable jaw assembly makes it more durable.

6. Unique flywheel design: Effecively reduce the vibration the machine running more smoothly.

 Big Reduction Ratio Limestone Crusher Machine Simple Structure For River Sand Coal 1



Specifications


Main Technical Parameters of Jaw Crusher



Model

Feed Inlet Size

(mm)

Max Feed
Size (mm)

Discharge Size

Range (mm)

Capacity
(m3/h )
Motor Power
(kw)
PE-250x400 250x400 210 20-60 3-13 15
PE-400x600 400x600 340 40-100 10-35 30
PE-500x750 500x750 425 50-100 25-60 55
PE-600x900 600x900 500 65-180 30-85 55-75
PE-750x1060 750x1060 630 80-180 72-150 90-110
PE-800x1060 800x1060 680 100-200 85-143 90-110
PE-870x1060 870x1060 750 170-270 145-235 90-110
PE-900x1060 900x1060 780 200-290 170-250 90-110
PE-900x1200 900x1200 780 95-255 100-240 110-132
PE-1000x1200 1000x1200 850 195-280 190-275 110-132
PE-1200x1500 1200x1500 1020 150-300 250-500 160
PEX-150x500 150x500 120 10-40 3-15 11
PEX-150x750 150x750 120 10-40 5-16 18.5
PEX-250x750 250x750 210 15-50 8-35 30
PEX-250x1000 250x1000 210 15-50 13-45 37
PEX-250x1200 250x1200 210 15-50 13-50 37
PEX-300x1300 300x1300 250 15-50 20-60 75



Main Technical Parameters of Impact Crusher





Model

Spec.(mm)

Feeding  Opening  Size(mm)

Max

Size(mm)

Capacity(t/h)

Motor Power(kw)

PF-0807

Φ850x700

400x730

300

15-30

30-45

PF-1007

Φ1000x700

400x730

300

30-50

37-55

PF-1010

Φ1000x1050

400x1080

350

50-80

55-75

PF-1210

Φ1250x1050

400x1080

350

70-120

110-132

PF-1214

Φ1250x1400

400x1430

350

130-180

132-160

PF-1310

Φ1300x1050

490x1170

400

80-140

110-160

PF-1315

Φ1320x1500

860x1520

500

160-250

180-260

PF-1415

Φ1450x1500

1145x1520

950

220-450

220-315

PF-1520

Φ1520x2000

830x2050

700

300-550

315-440
