Place of Origin:
CHINA
Brand Name:
ZK CORP
Certification:
ISO,CE
Model Number:
Small Jaw Crusher

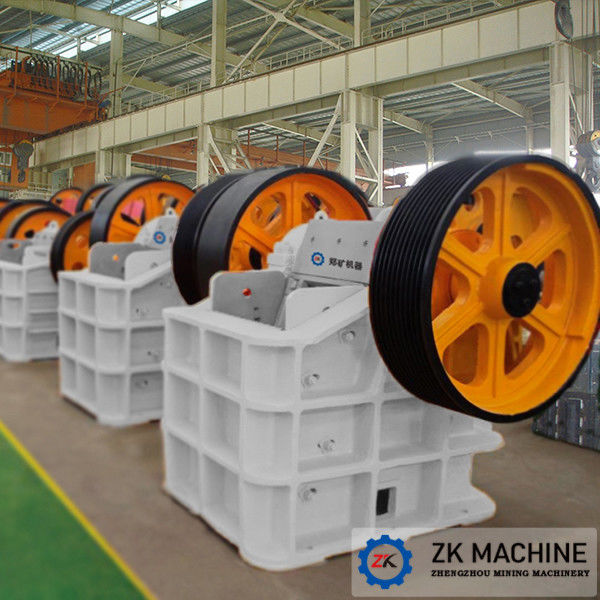

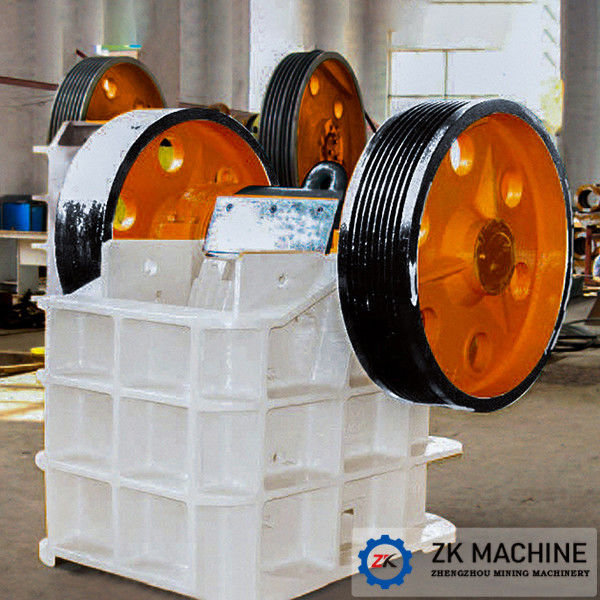

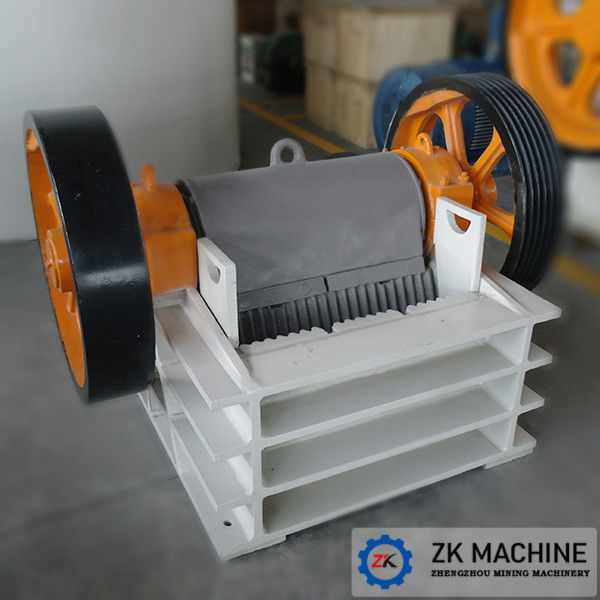

Equal Product Graularity Small Jaw Stone Crusher For Primary / Secondary Crushing
Introduction:
Jaw crusher is a large kind of complex tilting crushing equipment, and it is mainly used for crushing medium hard ore and rock whose compression strength is no more than 250MPa, and with the quality of large crushing ratio, high yield, uniform particle size, reliable, easy to maintain and low operating cost, it is widely used in mining, metallurgy, construction, roads, railways, water conservancy, chemical industry and etc. PE series is used for coarse crushing different kinds of ores and rocks, and PEX series is used for intermediate and fine crushing.
Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries.
Application:
Jaw Crushers is applied in large block of material crushing in mining industry, metallurgical industry, construction industry, highway, railway and chemical industry.
ADVANTAGES:
1. High quality: Unique jaw head structure sealed guarantee extend bearing life.
2. Deep cavity broken: High crushing ratio, even output granularity.
3. High strength: The crusher has large capacity and big stength.
4. High bearing capacity: The bearing pedestal adopts unitary cast steel structure.
5. Outlet easy operation: More advanced movable jaw assembly makes it more durable.
6. Unique flywheel design: Effecively reduce the vibration the machine running more smoothly.
MODELS
Model |
Feed Inlet Size (mm) |
Max Feed Size (mm) |
Discharge Size Range (mm) |
Capacity (m3/h ) |
Motor Power (kw) |
PE-250x400 | 250x400 | 210 | 20-60 | 3-13 | 15 |
PE-400x600 | 400x600 | 340 | 40-100 | 10-35 | 30 |
PE-500x750 | 500x750 | 425 | 50-100 | 25-60 | 55 |
PE-600x900 | 600x900 | 500 | 65-180 | 30-85 | 55-75 |
PE-750x1060 | 750x1060 | 630 | 80-180 | 72-150 | 90-110 |
PE-800x1060 | 800x1060 | 680 | 100-200 | 85-143 | 90-110 |
PE-870x1060 | 870x1060 | 750 | 170-270 | 145-235 | 90-110 |
PE-900x1060 | 900x1060 | 780 | 200-290 | 170-250 | 90-110 |
PE-900x1200 | 900x1200 | 780 | 95-255 | 100-240 | 110-132 |
PE-1000x1200 | 1000x1200 | 850 | 195-280 | 190-275 | 110-132 |
PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 250-500 | 160 |
PEX-150x500 | 150x500 | 120 | 10-40 | 3-15 | 11 |
PEX-150x750 | 150x750 | 120 | 10-40 | 5-16 | 18.5 |
PEX-250x750 | 250x750 | 210 | 15-50 | 8-35 | 30 |
PEX-250x1000 | 250x1000 | 210 | 15-50 | 13-45 | 37 |
PEX-250x1200 | 250x1200 | 210 | 15-50 | 13-50 | 37 |
PEX-300x1300 | 300x1300 | 250 | 15-50 | 20-60 | 75 |
