Place of Origin:
CHINA
Brand Name:
ZK CORP
Certification:
ISO,CE
Model Number:
PE,PEX jaw crusher

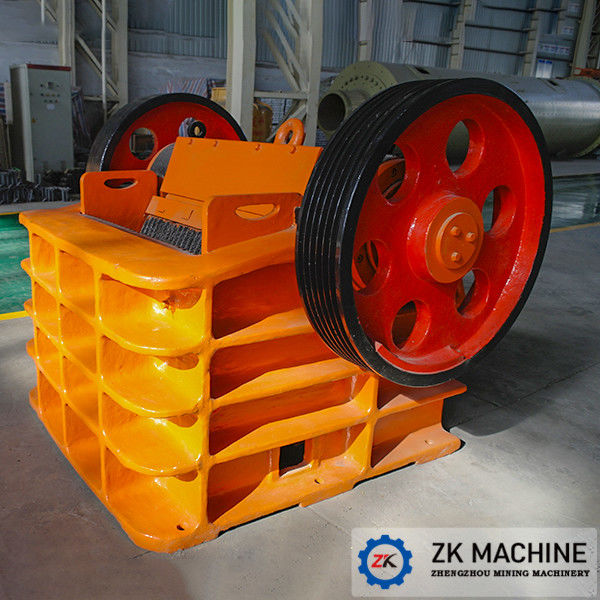

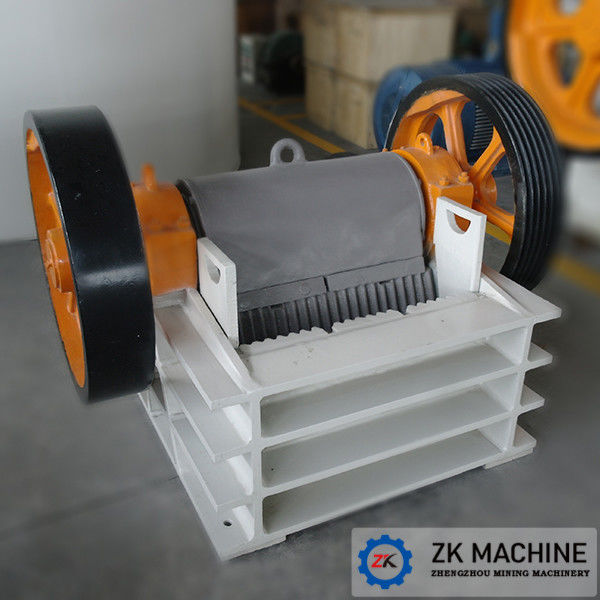

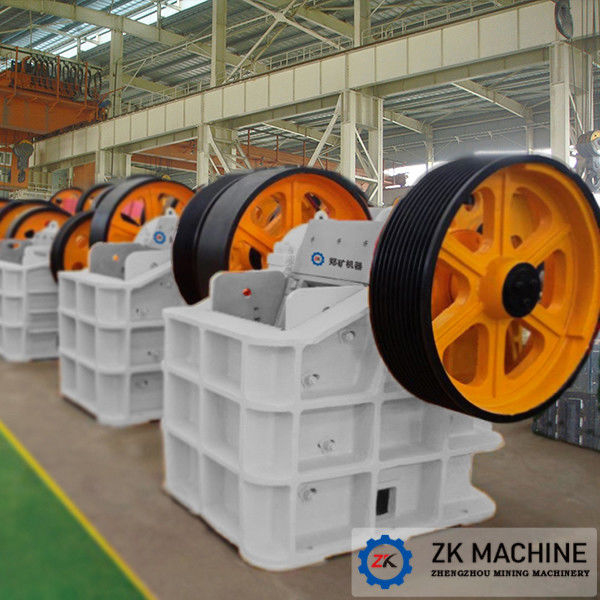

Jaw building material making crusher machinery
Introduction:
The Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.
The stone jaw crusher/rock jaw crusher's largest compression resistance is 320MPa. This series is complete in specifications and the first choice of primary crushing equipment. Its structure iseasy and solid. It is easy to maintain and enjoys satisfactory performance. The jaw crusher is widely used in the industries of mining, metallurgy, building, highway, railway, water conservancy and chemical.
Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries.
Packaging & Shipping:
The goods would be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden box; the big parts are wrapped by plastic sheeting.
Specifications:
| Model |
Feed Inlet Size (mm) |
Max Feed Size (mm) |
Discharge Size Range (mm) |
Capacity (m3/h ) |
Motor Power (kw) |
| PE-250x400 | 250x400 | 210 | 20-60 | 3-13 | 15 |
| PE-400x600 | 400x600 | 340 | 40-100 | 10-35 | 30 |
| PE-500x750 | 500x750 | 425 | 50-100 | 25-60 | 55 |
| PE-600x900 | 600x900 | 500 | 65-180 | 30-85 | 55-75 |
| PE-750x1060 | 750x1060 | 630 | 80-180 | 72-150 | 90-110 |
| PE-800x1060 | 800x1060 | 680 | 100-200 | 85-143 | 90-110 |
| PE-870x1060 | 870x1060 | 750 | 170-270 | 145-235 | 90-110 |
| PE-900x1060 | 900x1060 | 780 | 200-290 | 170-250 | 90-110 |
| PE-900x1200 | 900x1200 | 780 | 95-255 | 100-240 | 110-132 |
| PE-1000x1200 | 1000x1200 | 850 | 195-280 | 190-275 | 110-132 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 250-500 | 160 |
| PEX-150x500 | 150x500 | 120 | 10-40 | 3-15 | 11 |
| PEX-150x750 | 150x750 | 120 | 10-40 | 5-16 | 18.5 |
| PEX-250x750 | 250x750 | 210 | 15-50 | 8-35 | 30 |
| PEX-250x1000 | 250x1000 | 210 | 15-50 | 13-45 | 37 |
| PEX-250x1200 | 250x1200 | 210 | 15-50 | 13-50 | 37 |
| PEX-300x1300 | 300x1300 | 250 | 15-50 | 20-60 | 75 |
