Place of Origin:
CHINA
Brand Name:
ZKCORP
Certification:
ISO,CE
Model Number:
JAW CRUSHER

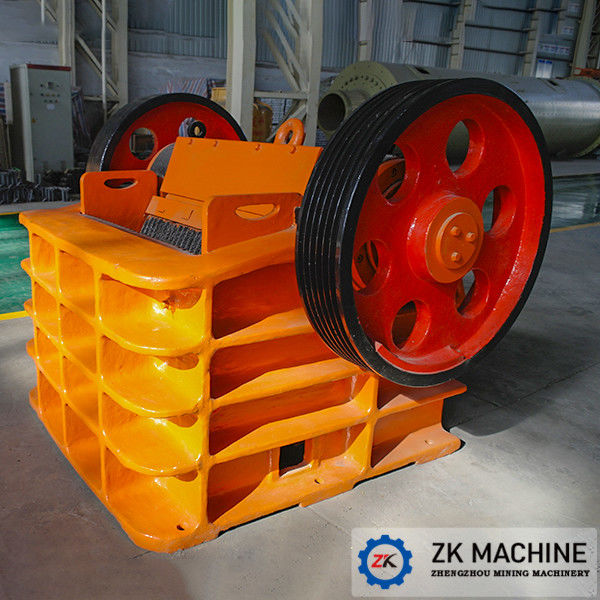

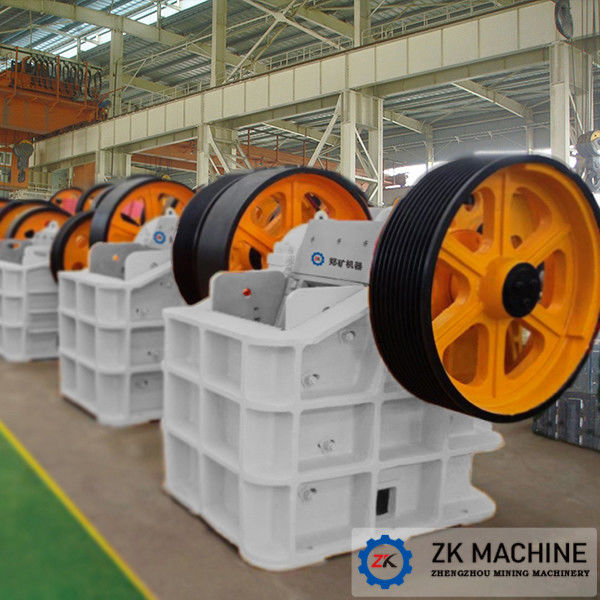

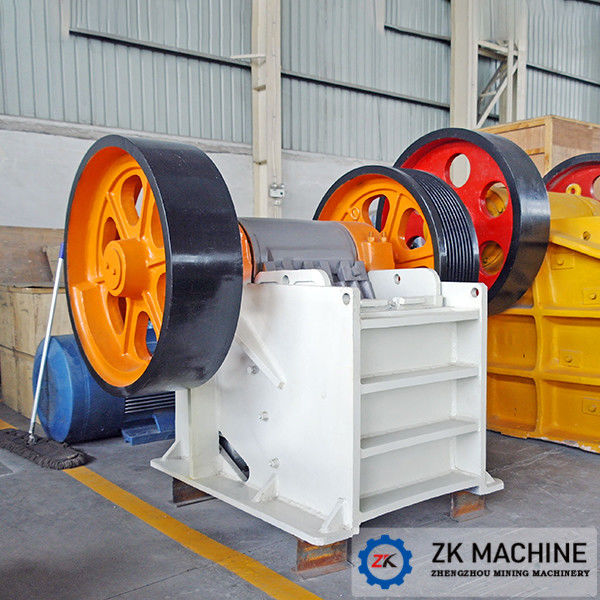

Cobblestone Jaw Crusher Equipment High Reliability Even Output Granularity
Introduction:
Jaw Crusher is ideally suitable for primary and secondary crushing. Jaw crusher is widely used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and our jaw crusher have the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance. The crushing strength of the jaw crusher materials is up to 320 Mpa. JBS river stone crusher is easy to install, operate and maintain.
Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries
Features
1. Simple structure, easy maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.
5. Jaw Crusher have flexible capacity.
Working Principle
The strip and strip pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces. It will become bigger when the movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole and spring ,then the end products come out from the crushing cavity.
Product Name
|
Stone Jaw crusher, primary jaw crusher, fine jaw crusher
|
Material
|
Q345, 45# steel, Manganese casting parts
|
Color
|
Blue, yellow, orange, red, gray, etc
|
Capacity
|
70-800tph
|
Power
|
Electricity, diesel generator
|
Usage
|
stone crushing for mining, construction
|
Function
|
Primary to reduce the size of raw materials
|
Application
|
limestone, granite, basalt, metal mine etc.
|
PE, PEX series jaw crusher is mainly consist of frame, eccentric shaft, pulley, side guard plate, bracket, discharging gate adjusting device, fixed jaw plate, movable jaw plate, safety device and etc. And its main structural features are as following:
1,Frame
It mainly is consist of side panels, front box assembly, rear box, and etc;
2,Eccentric Shaft Rotating Part
It mainly is consist of movable jaw, eccentric shaft, bearings, bearing pedestal, belt pulleys and etc., and it is the major part for dynamic transmission;
3,Crushing Cavity Working Part
It mainly is consist of fixed jaw plate, movable jaw plate, side liners, guard board and etc., and it is the working parts for breaking materials;
4,Safety Device
It is consist of bracket, bracket base, spring, spring rod and etc., and it is the parts that play a security role during crusher works in an abnormal condition.
5,Discharging Gate Adjusting Device
It is mainly consist of adjusting fixed ramp, adjusting sliding ramp, top wire bolt, slide locking lever, and etc., it is used to adjust the size of the discharging gate and to control the discharging particle size.
Specifications:
Model |
Feed Inlet Size (mm) |
Max Feed Size (mm) |
Discharge Size Range (mm) |
Capacity (m3/h ) |
Motor Power (kw) |
PE-250x400 | 250x400 | 210 | 20-60 | 3-13 | 15 |
PE-400x600 | 400x600 | 340 | 40-100 | 10-35 | 30 |
PE-500x750 | 500x750 | 425 | 50-100 | 25-60 | 55 |
PE-600x900 | 600x900 | 500 | 65-180 | 30-85 | 55-75 |
PE-750x1060 | 750x1060 | 630 | 80-180 | 72-150 | 90-110 |
PE-800x1060 | 800x1060 | 680 | 100-200 | 85-143 | 90-110 |
PE-870x1060 | 870x1060 | 750 | 170-270 | 145-235 | 90-110 |
PE-900x1060 | 900x1060 | 780 | 200-290 | 170-250 | 90-110 |
PE-900x1200 | 900x1200 | 780 | 95-255 | 100-240 | 110-132 |
PE-1000x1200 | 1000x1200 | 850 | 195-280 | 190-275 | 110-132 |
PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 250-500 | 160 |
PEX-150x500 | 150x500 | 120 | 10-40 | 3-15 | 11 |
PEX-150x750 | 150x750 | 120 | 10-40 | 5-16 | 18.5 |
PEX-250x750 | 250x750 | 210 | 15-50 | 8-35 | 30 |
PEX-250x1000 | 250x1000 | 210 | 15-50 | 13-45 | 37 |
PEX-250x1200 | 250x1200 | 210 | 15-50 | 13-50 | 37 |
PEX-300x1300 | 300x1300 | 250 | 15-50 | 20-60 | 75 |
