Automatic Rock Impact Crusher Machine Simple Structure Less Grinding Power

Automatic Rock Impact Crusher Machine Simple Structure Less Grinding Power

  • High Light

    jaw stone crusher

    ,

    rock crusher machine

  • Model
    Inlet Size:400x730-830x2050(mm)
  • Capacity
    15-550(t/h)
  • Material
    Stone Crushing,Ore Dressing
  • Motor Type
    AC Motor
  • Condition
    New
  • Product Name
    Stone Crusher, Rock Impact Crusher
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Processing Materials
    Various Rocks, Ores, Limestone, Construction Waste, Etc., Used In The Crushing Of Bulk Materials In Metallurgy, Building Materials, Mining, Highway, Mineral Processing And Other Industries
  • Place of Origin
    China
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    Impact Crusher
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Standard container and the spare parts is packed in wooden cases
  • Delivery Time
    30 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Per Month

Automatic Rock Impact Crusher Machine Simple Structure Less Grinding Power

Hot selling fine equipment stone crusher, rock impact crusher for sale with ISO CE certification



Introduction:

Impact Crusher is one kind of equipment to crushing the brittle material which compression strength no more than 350 Map, the advantage including high crushing ratio, uniform product grain and low over crushing, low energy consumption, high adjustment range of product grain size and optional crushing etc, which is mainly used in mine, metallurgy, cement, construction material, coal etc for secondary crushing and fine crushing the medium hardness material.





Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries.

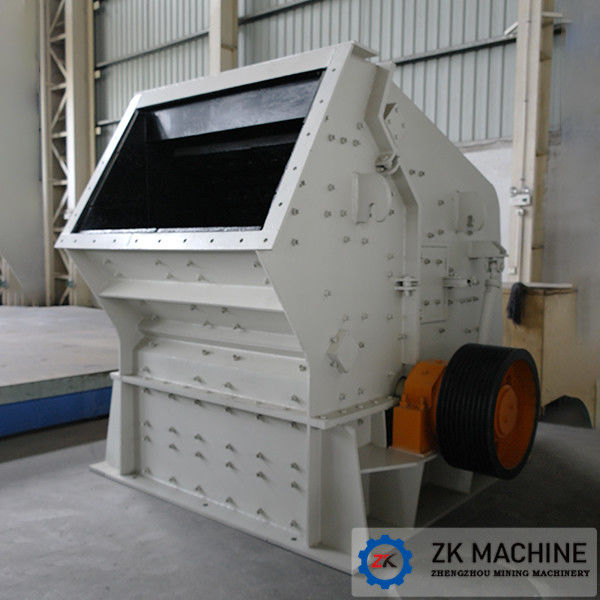

Automatic Rock Impact Crusher Machine Simple Structure Less Grinding Power 0



Application of Impact Crusher:

Metallurgy, construction material, mine, beneficiation and large block material crushing.



Applicable Materials:

Dealing with the material with the side length 500mm, not more than 320Mpa anti-pressure strength



Structure of Impact Crusher:

Impact crusher is mainly compose of the rack, driving system, rotor, hammer and impact plate etc. The main feature including:

1. Rack: It composed by two parts of upper and lower with connection by bolt. All the parts contact the crushed material in the rack have set replaceable lining plate.



2. Driving System: The main shaft and rotor are driving by motor through belt then doing the high speed rotary motion.



3. Rotor: It adopts entire cast steel structure with high mass force, solid and durable, convenient to install the hammer.



4. Impact Plate: It is made from new type abrasion material and hanging freely inside the equipment. One end connect with the two sides of the rack through hanging shaft hinge, another end is bearing in the upper rack cone gasket through stay bolt which is adopt a sphere gasket, it can prevent the equipment damage by non-crushing material when crushing material.



5. Hammer: It is made from new type abrasion material and fixed on the rotor through wedge block.

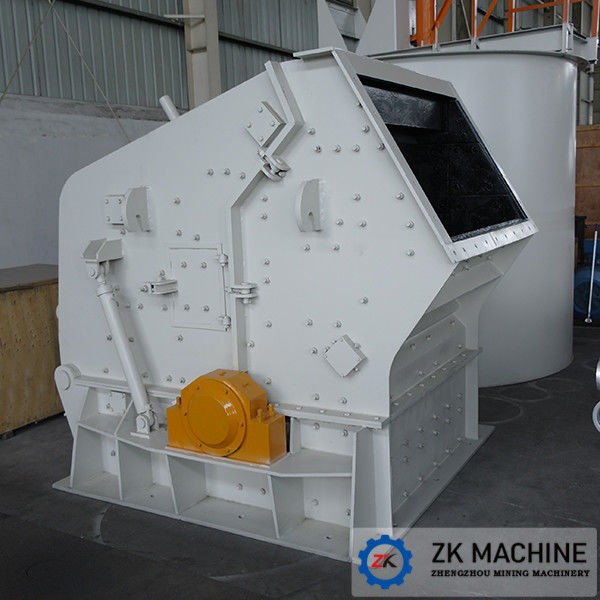

Automatic Rock Impact Crusher Machine Simple Structure Less Grinding Power 1



Our Advantages:

1. Large feeding port and high crushing cavity, suitable to crushing the material with high hardness and big grain size, and less powder.



2. The gap between impact plate and hammer plate is adjustable, so the discharging grain size can be effective control and the grain shape is well.



3. The hammer, impact plate and lining plate are made of new type abrasion-proof material with long working life and impact protection, wear protection.



4. Because of the function of three-stage crushing and plastic, so the crushing ratio is high, and the product shape is cube and can optional crushing.



5. The multi-function hydraulic station has many function of hydraulic discharge gap with high speed, impact plate stable vibration and the body open automatically.

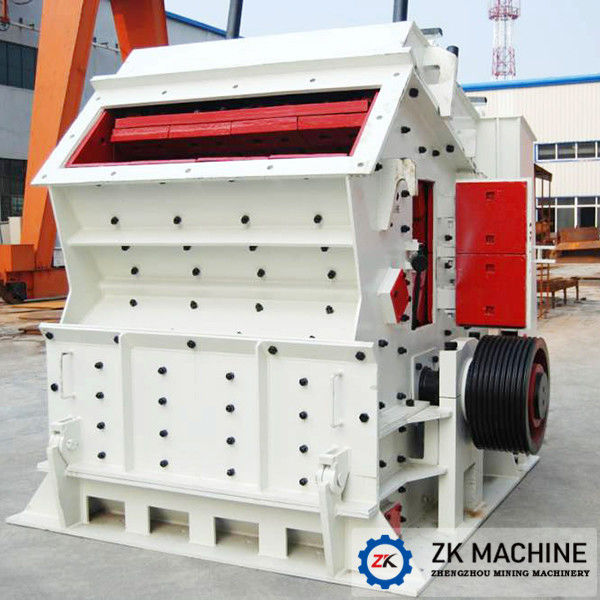

Automatic Rock Impact Crusher Machine Simple Structure Less Grinding Power 2



Technical Data



Model Spec.(mm) Feeding Opening Size(mm)

Max

Size(mm)

Capacity(t/h) Motor Power(kw)
PF-0807 Φ850x700 400x730 300 15-30 30-45
PF-1007 Φ1000x700 400x730 300 30-50 37-55
PF-1010 Φ1000x1050 400x1080 350 50-80 55-75
PF-1210 Φ1250x1050 400x1080 350 70-120 110-132
PF-1214 Φ1250x1400 400x1430 350 130-180 132-160
PF-1310 Φ1300x1050 490x1170 400 80-140 110-160
PF-1315 Φ1320x1500 860x1520 500 160-250 180-260
PF-1415 Φ1450x1500 1145x1520 950 220-450 220-315
PF-1520 Φ1520x2000 830x2050 700 300-550 315-440
