Place of Origin:
CHINA
Brand Name:
ZKCORP
Certification:
ISO,CE
Model Number:
Jaw Crusher
Energy Saving Stone Crusher Machine Low Investment Long Service Life

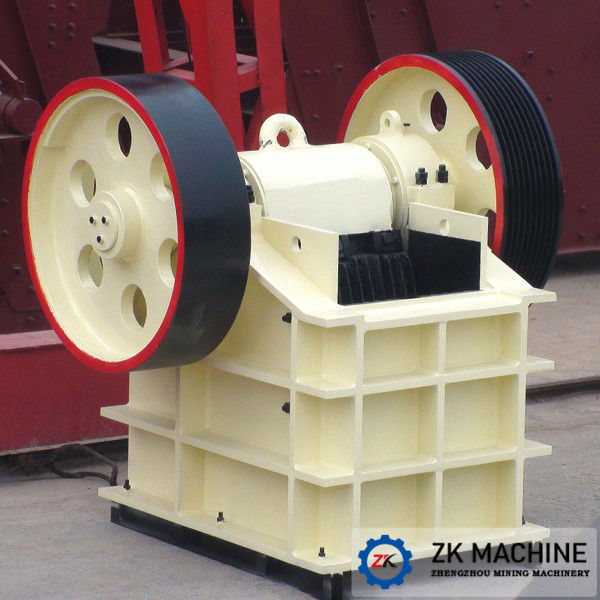

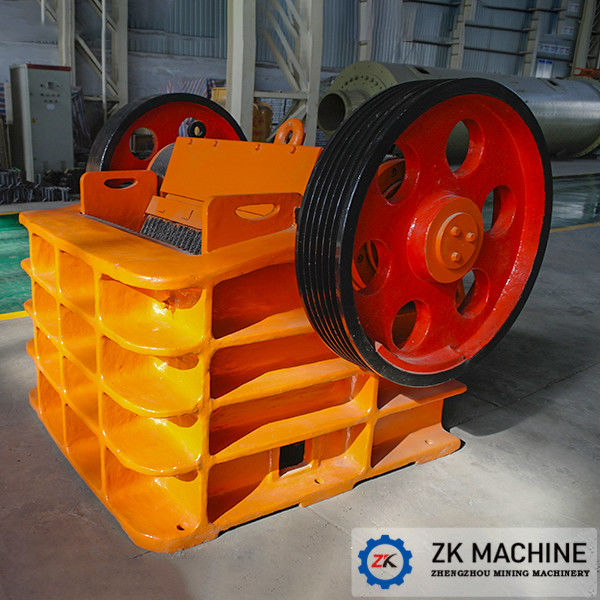

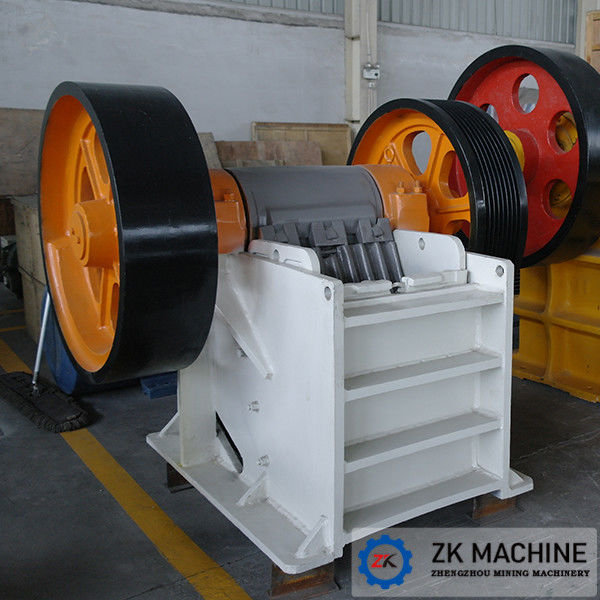

Stone crusher machine Introduction:
Jaw Crusher is ideally suitable for primary and secondary crushing. Jaw crusher is widely used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and our jaw crusher have the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance. The crushing strength of the jaw crusher materials is up to 320 Mpa. JBS river stone crusher is easy to install, operate and maintain.
Stone Crusher Machine Features:
1. Simple structure, easy maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.
5. Jaw Crusher have flexible capacity.,
Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries
We provide a whole set of equipent for stone crushing plant, which includes: vibrating feeder, jaw crusher, impact crusher, cone crusher, vibrating screen, belt conveyor etc.
Application:
Our stone crushing plant equipment can crush various kinds of materials, for example, high hard, mid hard and soft rocks and ores such as iron ore, limestone, slag, marble, quartz, granite, cement, clinker and so on.
Parameter:
| Model |
Feed Inlet Size (mm) |
Max Feed Size (mm) |
Discharge Size Range (mm) |
Capacity (m3/h ) |
Motor Power (kw) |
| PE-250x400 | 250x400 | 210 | 20-60 | 3-13 | 15 |
| PE-400x600 | 400x600 | 340 | 40-100 | 10-35 | 30 |
| PE-500x750 | 500x750 | 425 | 50-100 | 25-60 | 55 |
| PE-600x900 | 600x900 | 500 | 65-180 | 30-85 | 55-75 |
| PE-750x1060 | 750x1060 | 630 | 80-180 | 72-150 | 90-110 |
| PE-800x1060 | 800x1060 | 680 | 100-200 | 85-143 | 90-110 |
| PE-870x1060 | 870x1060 | 750 | 170-270 | 145-235 | 90-110 |
| PE-900x1060 | 900x1060 | 780 | 200-290 | 170-250 | 90-110 |
| PE-900x1200 | 900x1200 | 780 | 95-255 | 100-240 | 110-132 |
| PE-1000x1200 | 1000x1200 | 850 | 195-280 | 190-275 | 110-132 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 250-500 | 160 |
| PEX-150x500 | 150x500 | 120 | 10-40 | 3-15 | 11 |
| PEX-150x750 | 150x750 | 120 | 10-40 | 5-16 | 18.5 |
| PEX-250x750 | 250x750 | 210 | 15-50 | 8-35 | 30 |
| PEX-250x1000 | 250x1000 | 210 | 15-50 | 13-45 | 37 |
| PEX-250x1200 | 250x1200 | 210 | 15-50 | 13-50 | 37 |
| PEX-300x1300 | 300x1300 | 250 | 15-50 | 20-60 | 75 |
