Firm Structure Stone Crusher Machine Stable Performance Low Power Consumption

Firm Structure Stone Crusher Machine Stable Performance Low Power Consumption

  • High Light

    jaw stone crusher

    ,

    stone crushing equipment

  • Type
    Jaw Crusher, Impact Crusher, Hammer Crusher, Two Stage Hammers,Roller Crusher
  • Capacity(t/h)
    40-500TPH
  • Motor Type
    AC Motor
  • Application
    Mining, Quarry, Highway, Ore,chemical Industry And Construction
  • Dimension(l*w*h)
    Various
  • Spare Parts Supply
    Will Supply Any Time
  • Color
    Customized
  • Installation
    Under Technical Guidance
  • Processing Materials
    Various Rocks, Ores, Limestone, Construction Waste, Etc., Used In The Crushing Of Bulk Materials In Metallurgy, Building Materials, Mining, Highway, Mineral Processing And Other Industries
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Various models
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set / Sets per Month

Firm Structure Stone Crusher Machine Stable Performance Low Power Consumption

Firm Structure Stone Crusher Machine Stable Performance Low Power Consumption

Introduction:

Stone crushing plant is an one-stop production line including crushing, feeding, conveying, screening service, which can be used for rock, stone, ore etc. It is widely used in many sectors of mining, smelting, building material, highway, railway, water conservancy and chemical



Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries

ZK Corp Stone Crushing plant includes :

1. vibrating feeder
2. jaw crusher
3. impact crusher
4. cone crusher
5. vibrating screen
6. belt conveyor
7. centrally electric controlling system, etc.

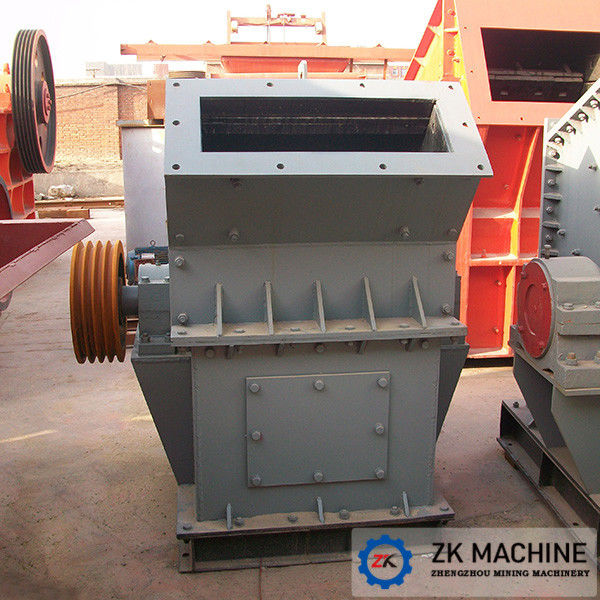

Firm Structure Stone Crusher Machine Stable Performance Low Power Consumption 0



Application:

Our stone crushing plant equipment can crush various kinds of materials, for example, high hard, mid hard and soft rocks and ores such as iron ore, limestone, slag, marble, quartz, granite, cement, clinker and so on.

Advantages:

1. Firm structure
2. Stable performance
3. Large capacity
4. Easy adjustment
5. Perfect pre-service and After-service



Stone Crushing Machine Description:
The Stone Crushing Machine zk company offers are ideal for primary and secondary crushing. Stone Crushing Machine is one of the main types of primary crushers in a mine or ore crushing process plant and also is one of the most widely used crushing equipments in mining industry. Zk is a famous Stone Crushing Machine manufacturers in China, and sold crusher machines to all over the world. This series of Stone Crushing Machine can reach the crushing ratio of 4-6 and the shape of final product is even. Because it is primary crusher, Stone Crushing Machine is designed for long life service with minimum maintenance for hard, tough, abrasive material and overload high capacity

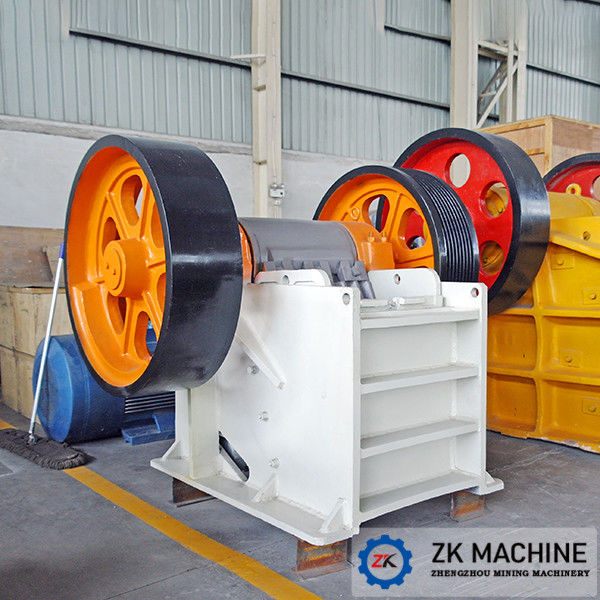

Firm Structure Stone Crusher Machine Stable Performance Low Power Consumption 1



Specifications:



Model Spec.(mm) Feeding Opening Size(mm)

Max

Size(mm)

Capacity(t/h) Motor Power(kw)
PF-0807 Φ850x700 400x730 300 15-30 30-45
PF-1007 Φ1000x700 400x730 300 30-50 37-55
PF-1010 Φ1000x1050 400x1080 350 50-80 55-75
PF-1210 Φ1250x1050 400x1080 350 70-120 110-132
PF-1214 Φ1250x1400 400x1430 350 130-180 132-160
PF-1310 Φ1300x1050 490x1170 400 80-140 110-160
PF-1315 Φ1320x1500 860x1520 500 160-250 180-260
PF-1415 Φ1450x1500 1145x1520 950 220-450 220-315
PF-1520 Φ1520x2000 830x2050 700 300-550 315-440
Model Rotor model (mm) Max feed size(mm) Discharge size (mm) Motor model Power
(kW)
Capacity (t/h)
PCH-0402 400x200 200 ≤30 Y132M2-6 5.5 8-12
PCH-0404 400x400 200 ≤30 Y160L-6 11 16-25
PCH-0604 600x400 200 ≤30 Y180L-6 15 22-33
PCH-0606 600x600 200 ≤30 Y225M-6 30 30-60
PCH-0808 800x800 200 ≤30 Y280M-8 45 75-105
PCH-1010 1000x1000 300 ≤30 Y315M2-8 90 110 160-200
Y315M3-8 200-245
PCH-1016 1000x1600 300 ≤30 Y312-8 155 220 300-350
Y400-8 400-500
PCH-1216 1200x1600 400 ≤30 Y400-8 280 355 500-620
Y450-8 620-800
PCH-1221 1200x2100 400 ≤30 Y450-8 450 800-1000
