High Passing Rate Hammer Mill Crusher Easy Operation Low Power Consumption

High Passing Rate Hammer Mill Crusher Easy Operation Low Power Consumption

  • High Light

    jaw stone crusher

    ,

    stone crushing equipment

  • Model
    PCΦ400×300,PCΦ1600×1600
  • Capacity (t/h)
    5-150
  • Max Feed Size (mm)
    ≤350
  • Motor Type
    AC Motor
  • Dimension(l*w*h)
    Various
  • Spare Parts Supply
    Will Supply Any Time
  • Color
    Customizable
  • Application
    Stone, Ore Crushing Plant
  • Processing Material
    Gangue, Coke, Slag, Red Sandstone, Shale, Loose Limestone
  • Processing Materials
    Various Rocks, Ores, Limestone, Construction Waste, Etc., Used In The Crushing Of Bulk Materials In Metallurgy, Building Materials, Mining, Highway, Mineral Processing And Other Industries
  • Place of Origin
    CHINA
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    Hammer mill crusher
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIREMENT
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/A, T/T, Western Union, D/P, MoneyGram
  • Supply Ability
    30 PER MONTH

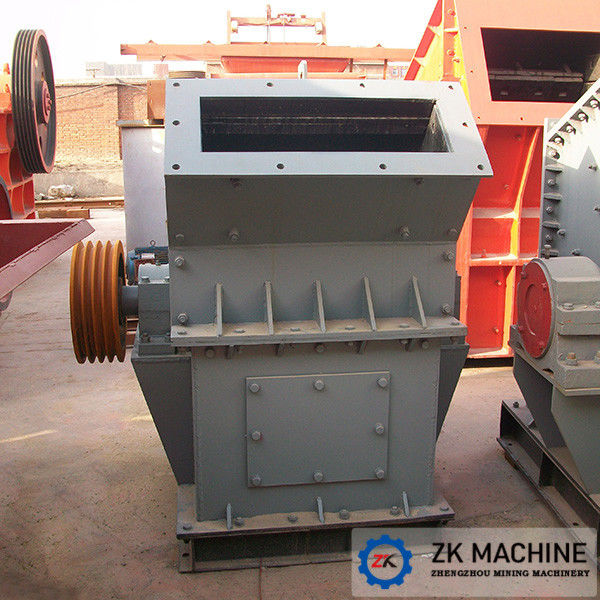

High Passing Rate Hammer Mill Crusher Easy Operation Low Power Consumption


High Passing Rate Hammer Mill Crusher Easy Operation Low Power Consumption

Introduction of Hammer Mill Crusher
Hammer crusher is called hammer mill. This series of crusher is the first choice of equipment for small sand production line with less investment and fast returns, change the form of grid bar. you can do a selective discharge.

Advantages of Hammer Mill Crusher
1. Our Hammer Crusher has relatively simple design and simple component replacement.
2. Our Hammer Crusher has high capacity and lower power consumption.
3. Our Hammer Crusher are easy operation and low investment.
4. Device of Hammer Crusher : Our Hammer Crusher mainly consists of frame, rotor, support iron and grate bars.



Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries

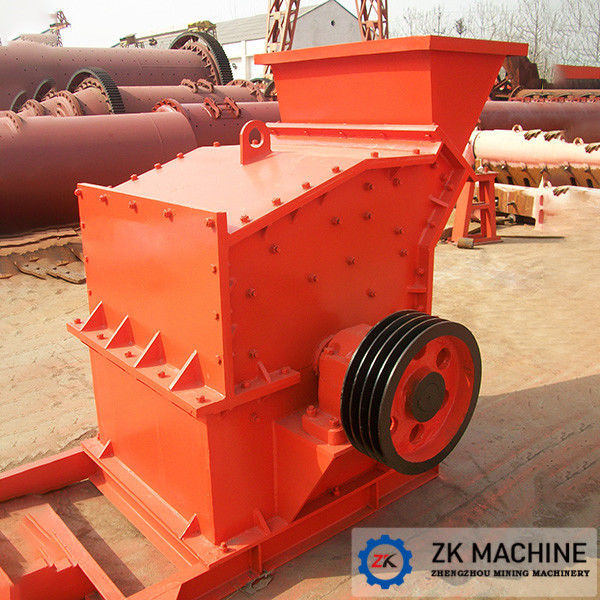

High Passing Rate Hammer Mill Crusher Easy Operation Low Power Consumption 0

Working Principle of Hammer Mill Crusher
In the Hammer Crusher machine, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them. The crushed products meeting the required size can be discharged by the outlet and become the final products, while the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.

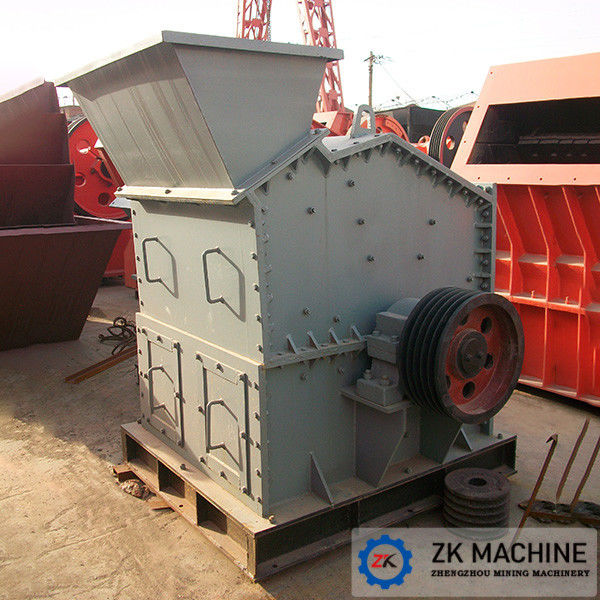

High Passing Rate Hammer Mill Crusher Easy Operation Low Power Consumption 1


In the hammer crusher mill machine,the motor drives the rotor to rotate at a high speed through the belt,and on the rotor there are series of hammers.when the material get into the working area of hammers,the rotating hammers with high rotation speed are crushing the material,the crushed product meeting the required size can be discharged by the outlet and become the final prodcuts,the large size prdocut are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.



Specifications:

Model Feed size(mm) Discharge size(mm) capacity(m³/h) Motor power (kw) weight(t) Dimensions(L×W×H)(mm)
PCΦ400×300 ≤200 ≤25 5-10 11 0.8 900×670×860
PCΦ600×400 ≤250 ≤30 10-22 22 2.26 1200×1050×1200
PCΦ800×600 ≤250 ≤35 18-40 55 4.8 1310×1180×1310
PCΦ1000×800 ≤350 ≤35 25-50 75 5.9 1600×1390×1575
PCΦ1000×1000 ≤350 ≤35 30-55 90 8 1800×1590×1775
PCΦ1200×1200 ≤350 ≤35 50-80 132-160 19.2 2060×1600×1890
PCΦ1400×1400 ≤350 ≤35 50-100 280 32 2365×1870×2220
PCΦ1600×1600 ≤350 ≤35 100-150 480 37.5 3050×2850×2800
