100T/H Impact Crusher Machine , Calcium Carbonate / Rock Crusher Machine

100T/H Impact Crusher Machine , Calcium Carbonate / Rock Crusher Machine

  • High Light

    jaw stone crusher

    ,

    rock crusher machine

  • Capacity
    15-550(t/h)
  • Inlet Size
    400x730-830x2050(mm)
  • Max Feed Size
    300-950(mm)
  • Application
    Stone Crushing, Ore Dressing Etc
  • Model
    PF Series
  • Condition
    New
  • Warranty
    12 Months
  • Motor Type
    AC Motor
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Processing Materials
    Various Rocks, Ores, Limestone, Construction Waste, Etc., Used In The Crushing Of Bulk Materials In Metallurgy, Building Materials, Mining, Highway, Mineral Processing And Other Industries.
  • Place of Origin
    CHINA
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    Calcium Carbonate Crusher
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Meet the shippment requirements
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/A, D/P, Western Union, D/P, T/T, MoneyGram
  • Supply Ability
    20 PER MONTH

100T/H Impact Crusher Machine , Calcium Carbonate / Rock Crusher Machine

100T/H Impact Crusher Machine , Calcium Carbonate / Rock Crusher Machine


Introduction:
Impact crusher be revolutionized by ZK CORP in aggregate crushing industry. ZK CORP makes it simple structure, Non-key Connection, high chromium Flat Hammer, special impact plate, simplified crushing process, and high-efficiency and energy conservation, Cubic Shape for the final products. The discharge opening can be adjusted, etc.




Processing materials: various rocks, ores, limestone, construction waste, etc., used in the crushing of bulk materials in metallurgy, building materials, mining, highway, mineral processing and other industries.

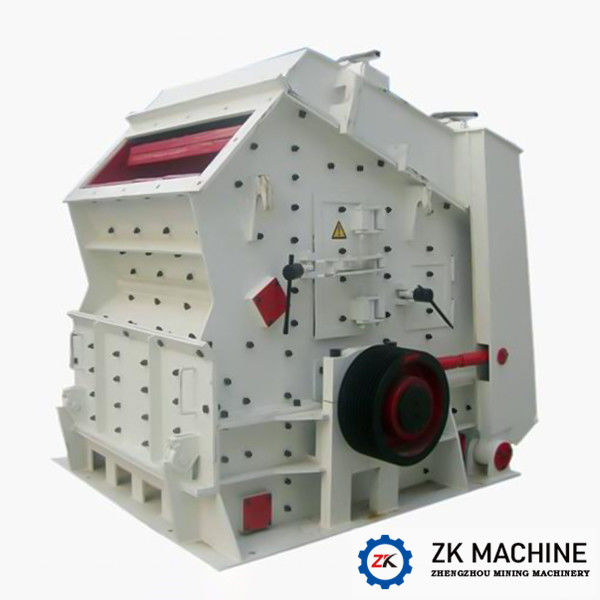

100T/H Impact Crusher Machine , Calcium Carbonate / Rock Crusher Machine 0
Features:
1. High efficient Long service life
2. Strong structure Steady performance
3. Good final products Discharging opening is adjustable
4. No-board connection Easy to disassembly and maintain

Application:
Impact crusher are mostly used as secondary crusher and it well fits for crushing numerous medium and soft mineral &rock materials, such as limestone, feldspar, calcite, talc, barite, clay, tombar thite, kaolin, gypsum, and graphite, etc.

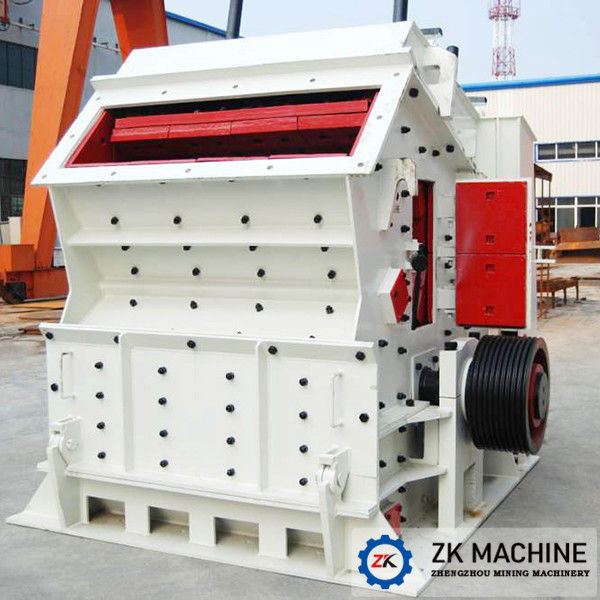

100T/H Impact Crusher Machine , Calcium Carbonate / Rock Crusher Machine 1

Working Principle:

1. When the material into the plate hammer area, subject to board the high-speed impact hammer and broken, and was thrown to the top of the back mounted on the rotor plate broken again, and then bounced back and from back liner plate hammer area re-broken. In this process, there is a mutual impact between the material to achieve the crushing effect.
2. This process is repeated until the material is crushed to a certain size, the discharge of the bottom of the machine.

Parameter:

Model Spec.(mm) Feeding Opening Size(mm)

Max

Size(mm)

Capacity(t/h) Motor Power(kw)
PF-0807 Φ850x700 400x730 300 15-30 30-45
PF-1007 Φ1000x700 400x730 300 30-50 37-55
PF-1010 Φ1000x1050 400x1080 350 50-80 55-75
PF-1210 Φ1250x1050 400x1080 350 70-120 110-132
PF-1214 Φ1250x1400 400x1430 350 130-180 132-160
PF-1310 Φ1300x1050 490x1170 400 80-140 110-160
PF-1315 Φ1320x1500 860x1520 500 160-250 180-260
PF-1415 Φ1450x1500 1145x1520 950 220-450 220-315
PF-1520 Φ1520x2000 830x2050 700 300-550 315-440
