Ore Dressing Building Material 1700t/h Vibrating Screen Machine

Ore Dressing Building Material 1700t/h Vibrating Screen Machine

1700t/H Vibrating Screen Machine

Ore Dressing Vibrating Screen Machine

1700t/H vibrating screen separator

Place of Origin:

China

Brand Name:

ZK

Certification:

CE ISO Certification

Model Number:

YA Series Circular Vibrating Screen

Contact Us
Request A Quote
Product Details
Product Name:
Large Scale Capacity Ore Dressing/ Building Material Vibrating Screen Machine
Capacity:
50-1700(t/h)
Screen Layer:
1-2
Material:
Ore Dressing, Building Material, Electricity, Chemical
Brand Name:
ZK Brand
Type:
Circular
Spare Parts:
Supply All Using Life
Business Scope:
Design, Manufacturer, Onsite Guidance
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 8000-20000 set
Packaging Details
Export standard container or as customers' requirements
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set / Sets per Month
Product Description

Large Scale Capacity Ore Dressing/ Building Material Vibrating Screen Machine



Description of Vibrating Screen Machine:
Vibrating Screen is widely applied in coal dressing, ore dressing, building material, electricity and chemical industries. Vibrating Screen is doing circular movement while at work, and it is of a highly-effective, newly-developed and multilayer machine. With the introduction of eccentric shaft vibration exciter and particular block, the amplitude can be adjustable.



Application of Vibrating Screen Machine:
The application range of Vibrating Screen: mines, coal, metallurgy, construction materials, chemistry industry.



Our Advantages​ of Vibrating Screen Machine:

1. Adopt tire coupling, flexible connection with smooth operation and low compacting to motor.
2. Adopt inclined structure with small amplitude and high frequency, which have features like high screening efficiency,large processing ability, long life time, low energy consumption and low noise.
3. The material of screen is wear-resistance, fatigue-resistance and corrosion-resistance, also have features like high aperture ratio, light weight and high classification accuracy.
4. Adopt steel spiral spring as vibration damper, which have reliable performance and long life time.
5. Flexible for usage, processing capacity can be control by adjusting screen inclination.





Vibrating Screen Machine​ Specifications:




Model And Spec

Layer

Area

Opening Size

Feed Size

Capacity

Frequency

Power
  mm mm t/h v.p.m kw
Circular Vibrating Screen
YA1848 1 7.5 6-50 ≤200 150-525 845 15
2YA1848 2 7.5 6-50 ≤200 150-525 845 15
YAH1848 1 7.5 30-150 ≤50 250-1000 755 13
2YAH1848 2 7.5 30-150 ≤400 250-1000 755 15
YA2148 1 10 6-50 ≤210 180-630 748 18.5
2YA2148 2 10 6-50 ≤210 180-630 748 22
YAH2148 1 10 13-200 ≤400 270-1200 708 18.5
2YAH2148 2 10 30-150 ≤400 270-1200 708 22
YA2160 1 12 3-80 ≤200 230-800 748 18.5
2YAH2160 2 12 6-50 ≤200 230-800 748 22
YAH2160 1 12 6-50 ≤400 350-1500 708 30
2YAH2160 2 12 30-150 ≤400 350-450 708 30
YA2448 1 11 6-50 ≤200 200-700 748 18.5
YAH2448 1 11 6-50 ≤400 310-1300 708 30
2YAH2448 2 11 30-150 ≤400 310-1300 708 30
YA2460 1 14 6-50 ≤200 260-780 748 30
2YA2460 2 14 6-50 ≤200 260-780 748 30
YAH2460 1 14 30-150 ≤400 400-1700 708 30
2YAH2460 2 14 30-150 ≤400 400-1700 708 30

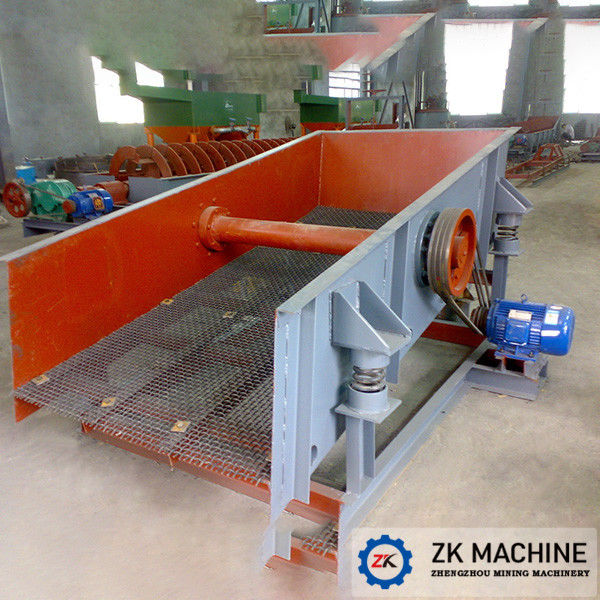

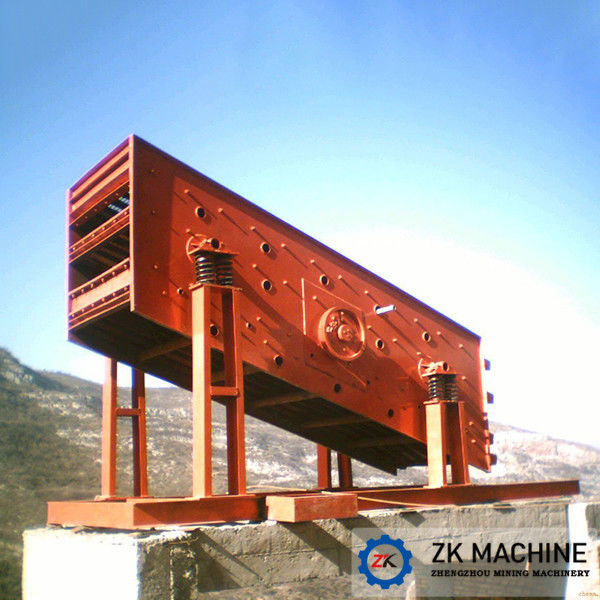

Ore Dressing Building Material 1700t/h Vibrating Screen Machine 0Ore Dressing Building Material 1700t/h Vibrating Screen Machine 1

Working Principle of Vibrating Screen Machine:
When operating, the vibration generator and eccentric shaft is driven by the motor through the spindle coupling to rotate at a high speed. And the strong centrifugal force generated by this rotation impels the screen box to do continuos circular movement compulsorily. The materials on the inclined screen surface keep turn over along with the screen box. The small granularity will move downward the materials and be discharged from the outlet, while the particles stuck in the screen hole can leap out to avoid the blocking of the sieve pit. Thus, again and again the classification and screening is achieved.



Features of Vibrating Screen Machine:
- Adopt tire coupling and soft connection makes operation smooth.
- Simple structure, easy to repair.
- High capacity and reliability
- Easy maintenance
