High Frequency Slurry Coal 8.1m2 Vibrating Screen Machine

High Frequency Slurry Coal 8.1m2 Vibrating Screen Machine

  • High Light

    8.1m2 Vibrating Screen Machine

    ,

    Slurry Vibrating Screen Machine

    ,

    8.1m2 high frequency vibrating screen

  • Product Name
    High Frequency Screen Machine
  • Capacity
    10-50(t/h)
  • Model
    GPS-4,GPS-8
  • Feeding Size
    ≤320(mm)
  • Screen Square
    4.5-8.1 (m2)
  • Material
    Slurry, Coal, Ore Dressing
  • Solution
    Customized
  • After Sale Service
    Engineers Available To Service Machinery Overseas
  • Shipping Port
    Shanghai, Qingdao, Tianjin
  • Equipment Condition
    New
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    GPS-4,GPS-8
  • Minimum Order Quantity
    1 set
  • Price
    USD 8000-20000 set
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set / Sets per Month

High Frequency Slurry Coal 8.1m2 Vibrating Screen Machine

Low Investment High Frequency Screen/ Low Energy Consumption Vibrating Screen Machine



Introduction:

High frequency screen is a kind of feeding and classifying screen that divided into upper way, medium way and lower way, which is a high efficient screen used to screening andclassifying of small size materials. Each way can complete feeding, screening and discharging processes independently. The screen device is assembled by three overlapped screens with different screen sizes. It is used very widely in many kinds of dressing plants, such as ironore, titanium iron ore, tungsten ore, tin ore, tantalum ore,ect.

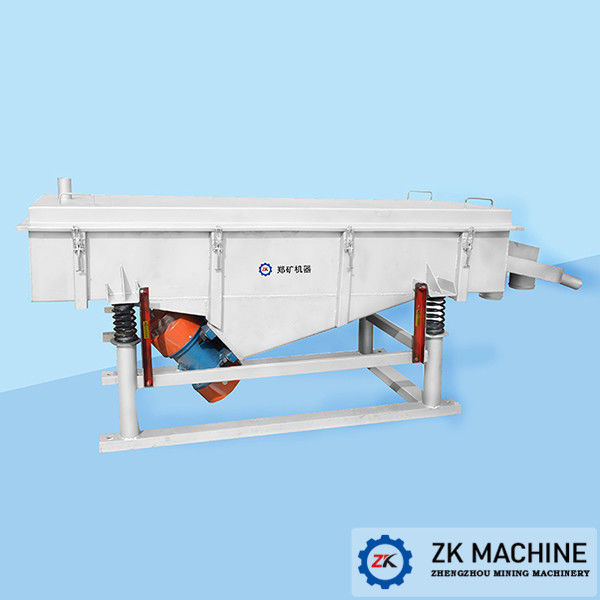

High Frequency Slurry Coal 8.1m2 Vibrating Screen Machine 0



Our Advantages​:

1. Adopt tire coupling, flexible connection with smooth operation and low compacting to motor.
2. Adopt inclined structure with small amplitude and high frequency, which have features like high screening efficiency,large processing ability, long life time, low energy consumption and low noise.
3. The material of screen is wear-resistance, fatigue-resistance and corrosion-resistance, also have features like high aperture ratio, light weight and high classification accuracy.
4. Adopt steel spiral spring as vibration damper, which have reliable performance and long life time.
5. Flexible for usage, processing capacity can be control by adjusting screen inclination.

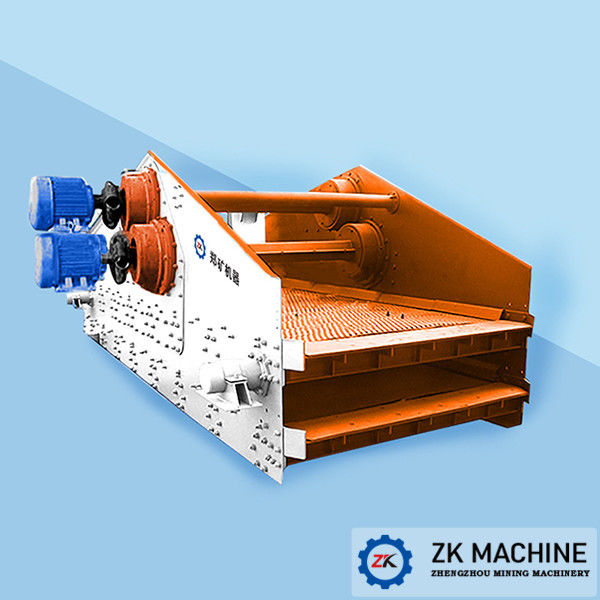

High Frequency Slurry Coal 8.1m2 Vibrating Screen Machine 1





Working Principle:

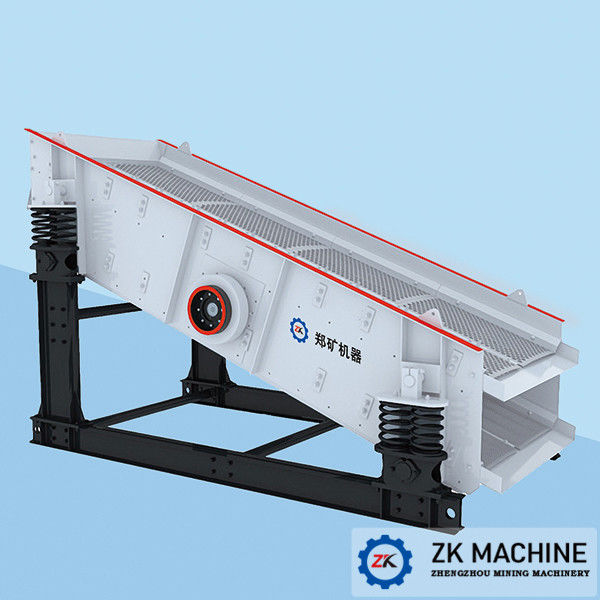

The screen is operated by electric motor to drive vibrator with eccentric mass via delta belt, allowing screen box to vibrate, with the motional orbit of the screen box being circular. The screen is composed of screen box, vibrator, spring, damping, supporting under frame and others, as shown in Fig.1. The screen box uses the advanced ring groove rivet for connection to compose of frame structure. The vibrator adopts eccentric shaft, eccentric block and the spring damping device with steel spiral spring.



Screening​ Specifications:



Model

Screen square

(m2)

Thickness of input material (%) Capacity (t/h) Power (kw)
GPS-4 4.5 30%-40% 15-25 0.72
GPS-5 5.2 30%-40% 20-30 1.1
GPS-6 6 30%-40% 24-36 1.5
GPS-8 8.1 30%-40% 32-48 2.2
