Large Processing Ability ore 500t/H Vibrating Screen Machine

Large Processing Ability ore 500t/H Vibrating Screen Machine

  • High Light

    500t/H Vibrating Screen Machine

    ,

    Iron Ore Vibrating Screen Machine

    ,

    500t/H vibrating sieve machine

  • Product Name
    Multifunctional Vibrating Screen Machine
  • Capacity
    20-500(t/h)
  • Model
    ZK1022, 2ZK3660
  • Feeding Size
    ≤350(mm)
  • Screen Square
    4-8 (m2)
  • Sieve Layer
    1-4
  • Material
    Chemicals, Building Materials, Carbon
  • Advantage
    High Degree Of Automation
  • After Sale Service
    Engineers Available To Service Machinery Overseas
  • Shipping Port
    Shanghai, Qingdao, Tianjin
  • Spare Parts
    Supply All Using Life
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    ZK Series
  • Minimum Order Quantity
    1 set
  • Price
    USD 8000-20000 set
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set / Sets per Month

Large Processing Ability ore 500t/H Vibrating Screen Machine

Multifunctional Vibrating Screen Machine Large Processing Ability High Precision



Introduction:

ZK series linear vibrating screen developed this new series of vibrating screen, based on the absorption from abroad experience and combined with the national conditions.

High frequency screen is a kind of feeding and classifying screen that divided into upper way, medium way and lower way, which is a high efficient screen used to screening andclassifying of small size materials. Each way can complete feeding, screening and discharging processes independently. The screen device is assembled by three overlapped screens with different screen sizes. It is used very widely in many kinds of dressing plants, such as ironore, titanium iron ore, tungsten ore, tin ore, tantalum ore, ect.

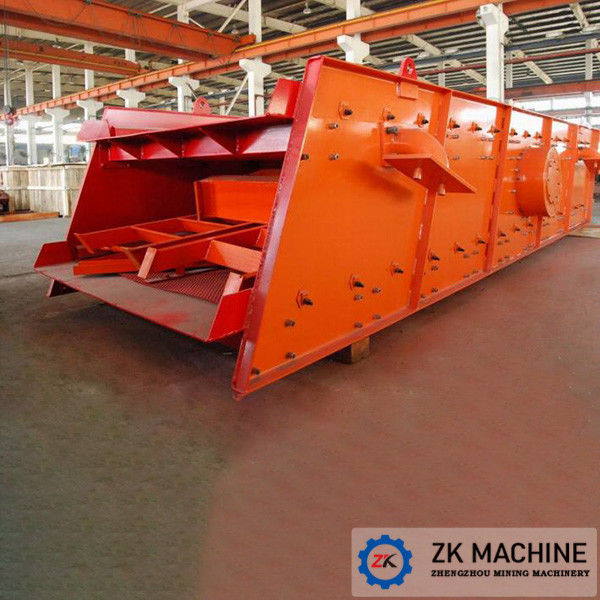

Large Processing Ability ore 500t/H Vibrating Screen Machine 0



Our Advantages​:

1. Sieve machine design, ingenious and easy to assemble, one person can operate the screening machine.
2. Independent and other related brand manufacturers, compared with a larger screen area and high efficiency of processing capacity.
3. Unique screen structure design, convenient and fast change screen (only 3 to 5 minutes), in addition, this design allows the use of a variety of screen (nylon, special dragon, PP nets).
4. The parent network to fully support the fine mesh, so fine mesh scored a longer life, and reduce the supplies of fine mesh, the production process and the long time can reduce a lot of cost.

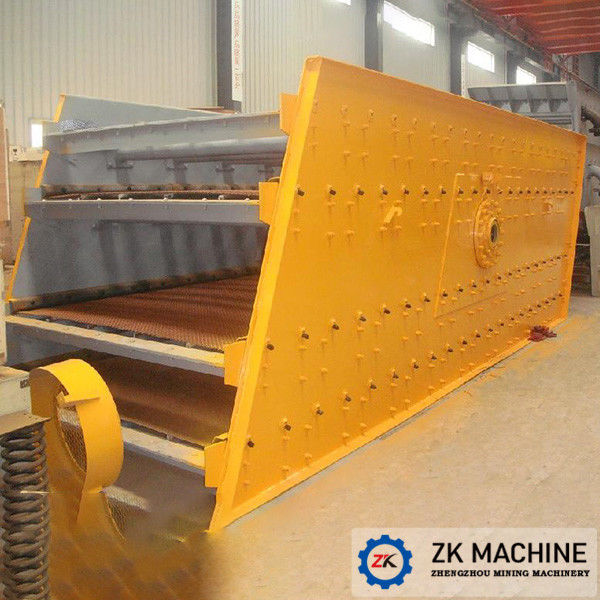

Large Processing Ability ore 500t/H Vibrating Screen Machine 1





Working Principle:

The straight shaking movement is realizedby two unbalanced gravities of high frequency screen. Two motors drive upperand lower shaft separately do reversed rotation movements. The existing forces,produced by synchronous opposite rotation and formed 30°with screen face, are overlapped. At the same, existing forces inother direction are offset. Then the single direction existing force is formedso that the screen shaking reciprocally along straight line. Because the screenis shaking along overlapped exciting force in high frequency and no shaking inother direction, the screen is working stably.

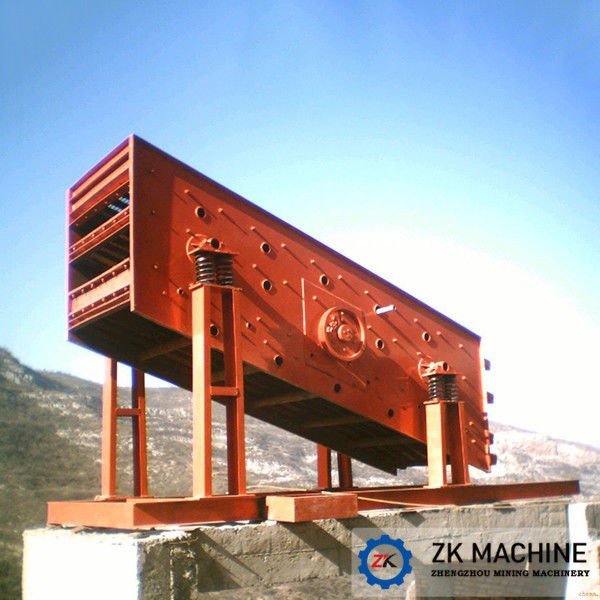

Large Processing Ability ore 500t/H Vibrating Screen Machine 2



Specifications:



Model Screen deck Max feed size(mm) Motor power(kw) Capacity(t/h)
  Area(m3) Installation slope(?)
ZK1022 2.25 -5-5 <250 3X2 2.2
ZK1230 3.6 -5-5 <250 4X2 2.6
ZK1237 4.5 -5-5 <250 5.5X2 3.1
ZK1437 5.25 -5-5 <250 5.5X2 3.2
ZK1445 6.3 -5-5 <250 7.5X2 4.1
ZK1637 6 -5-5 <250 5.5X2 3.5
ZK1645 7.32 -5-5 <250 11X2 4.5
ZK1837 6.75 -5-5 <250 11X2 5
ZK1845 8.1 -5-5 <250 11X2 5.5
ZK1852 9.45 -5-5 <250 11X2 5.9
ZK2045 9 -5-5 <250 11X2 6
ZK2052 10.5 -5-5 <250 11X2 6.4
ZK2060 12 -5-5 <250 15X2 7.6
ZK2445 10.8 -5-5 <250 15X2 7.4
ZK2452 12.6 -5-5 <250 15X2 8.2
ZK2460 14.4 -5-5 <250 15X2 9.2
ZK3045 13.5 -5-5 <250 15X2 10
ZK3052 15.75 -5-5 <250 22X2 10
ZK3060 18 -5-5 <250 22X2 11
ZK3645 16.2 -5-5 <250 22X2 12.2
ZK 3652 18.9 -5-5 <250 22X2 13.4
ZK 3660 21.6 -5-5 <250 22X2 14.3
ZK 3675 27 -5-5 <250 30X2 17.1
2ZK1022 2.25 -5-5 <250 4X2 3
2ZK1230 3.6 -5-5 <250 5.5X2 3.7
2ZK1237 4.5 -5-5 <250 7.5X2 4.4
2ZK1437 5.25 -5-5 <250 7.5X2 5
2ZK1445 6.3 -5-5 <250 15X2 6.9
2ZK1637 6 -5-5 <250 15X2 6.9
2ZK1645 7.32 -5-5 <250 15X2 8.6
2ZK1837 6.75 -5-5 <250 15X2 7.9
2ZK1845 8.1 -5-5 <250 15X2 8.1
2ZK1852 9.45 -5-5 <250 15X2 9
2ZK2045 9 -5-5 <250 15X2 9.1
2ZK2052 10.5 -5-5 <250 22X2 10.1
2ZK2060 12 -5-5 <250 22X2 10.8
2ZK2445 10.8 -5-5 <250 22X2 11
2ZK2452 12.6 -5-5 <250 22X2 12.5
2ZK2460 14.4 -5-5 <250 22X2 13.5
2ZK3045 13.5 -5-5 <250 30X2 15.4
2ZK3052 15.75 -5-5 <250 37X2 16.9
2ZK3060 18 -5-5 <250 37X2 18.2
2ZK3645 16.2 -5-5 <250 45X2 21
2ZK3652 18.9 -5-5 <250 45X2 24
2ZK3660 21.6 -5-5 <250 45X2 25.4
