Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
Linear Vibrating Screen

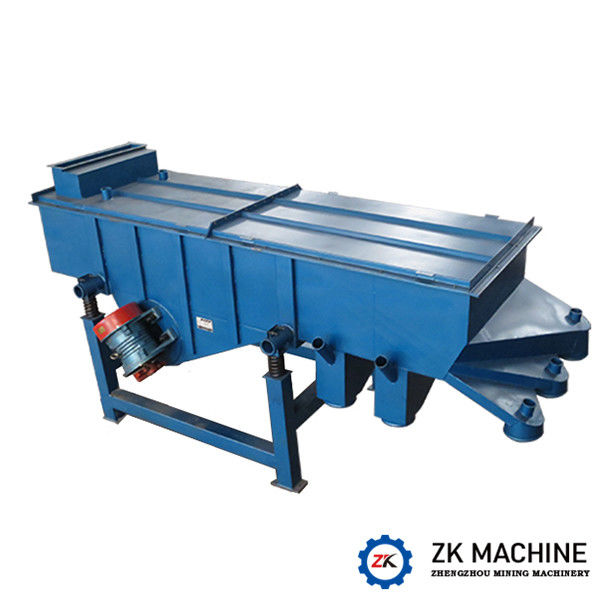

Low Investment Building Materials Vibrating Screen Machine From Manufacturer
Introduction
Linear vibrating screen can screen and classify powder and granular material. It is applied widely in plastics, abrasives, chemicals, pharmaceuticals, building materials, food, carbon, fertilizer and other industries. Vibrating screen is composed of eccentric exciter, screen box, motor, base and supporting device.
Our Advantages of Vibrator Screening Equipment:
1. Adopt tire coupling, flexible connection with smooth operation and low compacting to motor.
2. Adopt inclined structure with small amplitude and high frequency, which have features like high screening efficiency,large processing ability, long life time, low energy consumption and low noise.
3. The material of screen is wear-resistance, fatigue-resistance and corrosion-resistance, also have features like high aperture ratio, light weight and high classification accuracy.
4. Adopt steel spiral spring as vibration damper, which have reliable performance and long life time.
5. Flexible for usage, processing capacity can be control by adjusting screen inclination.
Working Principle:
Linear vibrating screen uses the vibration motor as vibration source. Make the material on the screen being thrown up, at the same time it moves forward in a straight line. Material goes into the screening machine feed inlet evenly from the feeder, through the multi-screen sieve several size material is discharged from their outlet.
Screening Specifications:
| Model | Sieve Specifi- cations |
Sieve layer | Mesh size |
Feeding size | Cap-acity | Motor Power | Total Weight |
Vibr-ating frequ-ency | Double ampl- itude |
Sieve obliq-uity |
Dimensions |
| (L*W)(mm) | Layer | mm | mm | (t/h) | kw | kg | (Hz) | (mm) | o | L*W*H(mm) | |
| ZSG1237 | 3700*1200 | 1 | 4-50 | <=200 | 10-100 | 5.5*2 | 2250 | 16 | 6-8 | 15 | 3800*2050*1920 |
| 2ZSG1237 | 3700*1200 | 2 | 4-50 | <=200 | 10-100 | 5.5*2 | 3345 | 16 | 6-8 | 15 | 3800*2050*2200 |
| ZSG1443 | 4300*1400 | 1 | 4-50 | <=200 | 10-150 | 5.5*2 | 4100 | 16 | 6-8 | 15 | 4500*3040*2500 |
| 2ZSG1443 | 4300*1400 | 2 | 4-50 | <=200 | 10-150 | 5.5*2 | 4900 | 16 | 6-8 | 15 | 4500*3040*2700 |
| 3ZSG1443 | 4300*1400 | 3 | 4-50 | <=200 | 10-150 | 5.5*2 | 5870 | 16 | 6-8 | 15 | 4500*3040*2820 |
| 2ZSG1548 | 4800*1500 | 2 | 5-50 | <=200 | 15-200 | 7.5*2 | 5836 | 16 | 8-10 | 15 | 4800*3140*2814 |
| 3ZSG1548 | 4800*1500 | 3 | 5-50 | <=200 | 15-200 | 7.5*2 | 6900 | 16 | 8-10 | 15 | 4799*3140*3014 |
| 2ZSG1848 | 4800*1800 | 2 | 5-50 | <=300 | 50-500 | 7.5*2 | 6489 | 16 | 8-10 | 15 | 4799*3440*2814 |
| 3ZSG1848 | 4800*1800 | 3 | 5-50 | <=300 | 50-500 | 7.5*2 | 7750 | 16 | 8-10 | 15 | 4799*3440*3014 |
| 4ZSG1848 | 4800*1800 | 4 | 5-50 | <=200 | 50-500 | 11*2 | 8300 | 16 | 8-10 | 15 | 4799*3440*3503 |
| 2ZSG1860 | 6000*1800 | 2 | 5-150 | <=300 | 80-600 | 11*2 | 9950 | 16 | 8-10 | 15 | 6000*3440*3326 |
