High Capacity Vibrating Screen Machine Large Processing Ability Smooth Operation
Product Details:
| Place of Origin: | China |
| Brand Name: | ZK |
| Certification: | CE ISO Certification |
| Model Number: | YA Series Circular Vibrating Screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 8000-20000 set |
| Packaging Details: | Export standard container or as customers' requirements |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set / Sets per Month |
|
Detail Information |
|||
| Product Name: | High Capacity Vibrating Screen Machine | Capacity: | 150-1200(t/h) |
|---|---|---|---|
| Screen Layer: | 1-2 | Material: | Ore Dressing, Building Material, Electricity, Chemical |
| Shipping Port: | Shanghai, Qingdao, Tianjin | Warranty: | 12 Months |
| Spare Parts: | Supply All Using Life | Motor Type: | AC Motor |
| Voltage: | Local Voltage | Business Scope: | Design, Manufacturer, Onsite Guidance |
Product Description
High Capacity Vibrating Screen Machine Large Processing Ability Smooth Operation
Introduction:

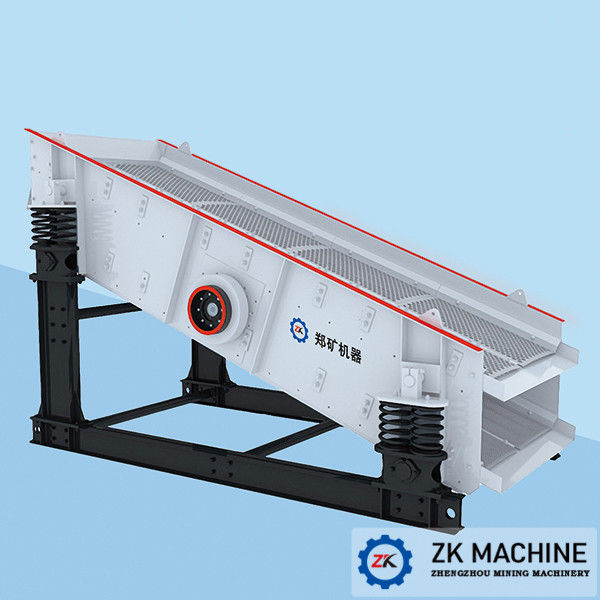

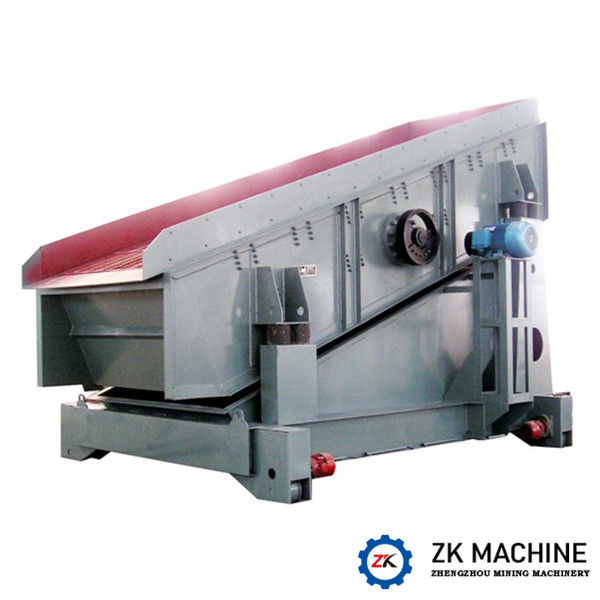

YA Series Vibrating Screen is primarily applied coal, metallurgical, power generation, building material, water conservancy, light and chemical industries and other industries. Highly efficient screening machine classify coal, ore, coke and other bulk materials. Vibrating screen is composed of eccentric exciter, screen box, motor, base and supporting device.
Our Advantages of Vibrator Screening Equipment:
1. Adopt tire coupling, flexible connection with smooth operation and low compacting to motor.
2. Adopt inclined structure with small amplitude and high frequency, which have features like high screening efficiency,large processing ability, long life time, low energy consumption and low noise.
3. The material of screen is wear-resistance, fatigue-resistance and corrosion-resistance, also have features like high aperture ratio, light weight and high classification accuracy.
4. Adopt steel spiral spring as vibration damper, which have reliable performance and long life time.
5. Flexible for usage, processing capacity can be control by adjusting screen inclination.
Working Principle of High Frequency Screen:

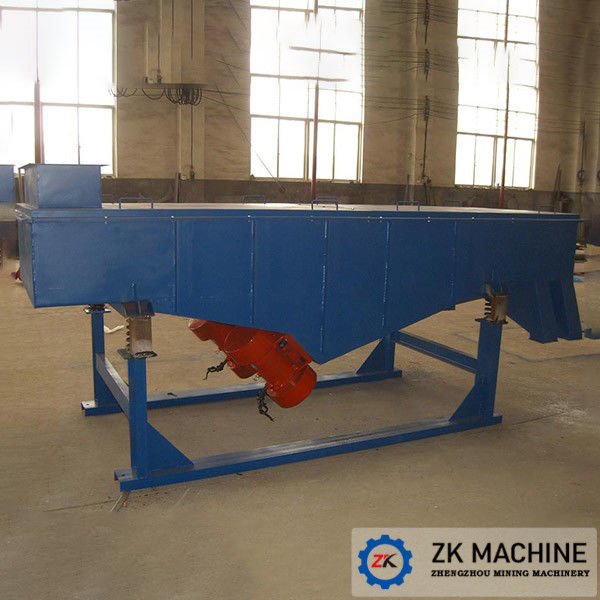

The straight shaking movement is realizedby two unbalanced gravities of high frequency screen. Two motors drive upperand lower shaft separately do reversed rotation movements. The existing forces,produced by synchronous opposite rotation and formed 30°with screen face, are overlapped. At the same, existing forces inother direction are offset. Then the single direction existing force is formedso that the screen shaking reciprocally along straight line. Because the screenis shaking along overlapped exciting force in high frequency and no shaking inother direction, the screen is working stably.
Sand Screening Specifications:
Model And Spec |
Layer |
Area |
Opening Size |
Feed Size |
Capacity |
Frequency |
Power |
| m² | mm | mm | t/h | v.p.m | kw | ||
| Circular Vibrating Screen | |||||||
| YA1848 | 1 | 7.5 | 6-50 | ≤200 | 150-525 | 845 | 15 |
| 2YA1848 | 2 | 7.5 | 6-50 | ≤200 | 150-525 | 845 | 15 |
| YAH1848 | 1 | 7.5 | 30-150 | ≤50 | 250-1000 | 755 | 13 |
| 2YAH1848 | 2 | 7.5 | 30-150 | ≤400 | 250-1000 | 755 | 15 |
| YA2148 | 1 | 10 | 6-50 | ≤210 | 180-630 | 748 | 18.5 |
| 2YA2148 | 2 | 10 | 6-50 | ≤210 | 180-630 | 748 | 22 |
| YAH2148 | 1 | 10 | 13-200 | ≤400 | 270-1200 | 708 | 18.5 |
| 2YAH2148 | 2 | 10 | 30-150 | ≤400 | 270-1200 | 708 | 22 |
| YA2160 | 1 | 12 | 3-80 | ≤200 | 230-800 | 748 | 18.5 |
| 2YAH2160 | 2 | 12 | 6-50 | ≤200 | 230-800 | 748 | 22 |
| YAH2160 | 1 | 12 | 6-50 | ≤400 | 350-1500 | 708 | 30 |
| 2YAH2160 | 2 | 12 | 30-150 | ≤400 | 350-450 | 708 | 30 |
| YA2448 | 1 | 11 | 6-50 | ≤200 | 200-700 | 748 | 18.5 |
| YAH2448 | 1 | 11 | 6-50 | ≤400 | 310-1300 | 708 | 30 |
| 2YAH2448 | 2 | 11 | 30-150 | ≤400 | 310-1300 | 708 | 30 |
| YA2460 | 1 | 14 | 6-50 | ≤200 | 260-780 | 748 | 30 |
| 2YA2460 | 2 | 14 | 6-50 | ≤200 | 260-780 | 748 | 30 |
| YAH2460 | 1 | 14 | 30-150 | ≤400 | 400-1700 | 708 | 30 |
| 2YAH2460 | 2 | 14 | 30-150 | ≤400 | 400-1700 | 708 | 30 |
