Circular Sand Lightweight Rotary Trommel Screen

Circular Sand Lightweight Rotary Trommel Screen

  • High Light

    Lightweight rotary trommel screen

    ,

    Sand rotary trommel screen

  • Product Name
    Trommel (Drum) Screen
  • Model
    GTS-3,GTS-15
  • Output (t/h)
    10-50
  • Diameter( Mm )
    Φ1200--Φ1500
  • Length( M )
    3.5-6
  • Business Scope
    Design, Manufacturer, Onsite Guidance
  • Shipping Port
    Qingdao, Tianjin
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440V
  • Warranty
    12 Months
  • Place of Origin
    CHINA
  • Brand Name
    ZK
  • Certification
    ISO,CE
  • Model Number
    GTS-3,GTS-15 Trommel Screen
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/A, T/T, Western Union, MoneyGram
  • Supply Ability
    30 PER MONTH

Circular Sand Lightweight Rotary Trommel Screen

Light Weight Sand Trommel Screen Large Process Volume Circular Vibrating Screen



Introduction:

Trommel (Rotary Rrum ) Screen is widely used in quarry, coal industry, chemical, mineral-selecting industry, metallurgy, construction and other industries. It have advantages that they are proficient in wet applications as well as dry and the lifting and dropping action will enhance separation.

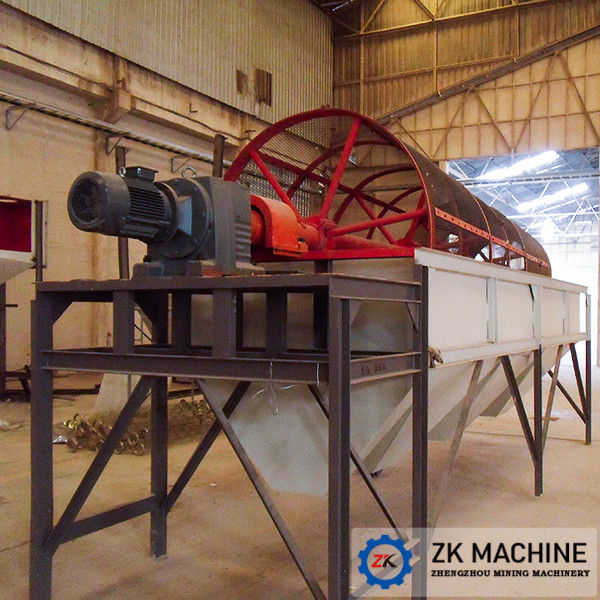

Circular Sand Lightweight Rotary Trommel Screen 0



Our Advantages

1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site;
2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well;
3. Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc;
4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption.

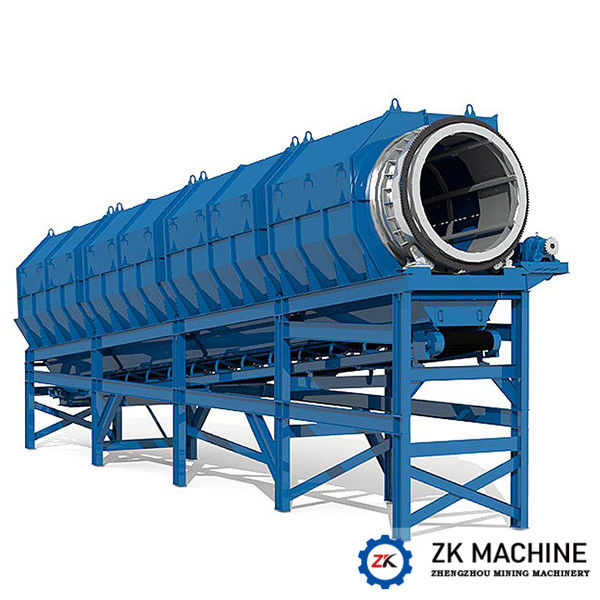

Circular Sand Lightweight Rotary Trommel Screen 1



Working Principle

The screening tube is whirling in high speed by variable speed reducer system causing the materials to separate where the fine particle is passing through the opening part of the screening tube while the heavy and rough material is separated at the rear of the drum. Furthermore, GTS Drum screen consists of a comb shape screen structure which works simultaneity with screening tube to clean the screen continuously. By this action, the Drum screen is able to achieve clean, non-stick, no blocking performance along the operation.

Specifications

Model Capacity
(t)
Output
(t/h)
Diameter
(mm)
Length
(m)
Powder
(kw)
GTS-3 30000 10.4 Φ1200 3.5 4
GTS-5 50000 13.8 Φ1200 4 5.5
GTS-10 100000 27.8 Φ1400 5 7.5
GTS-15 150000 47.7 Φ1500 6 11

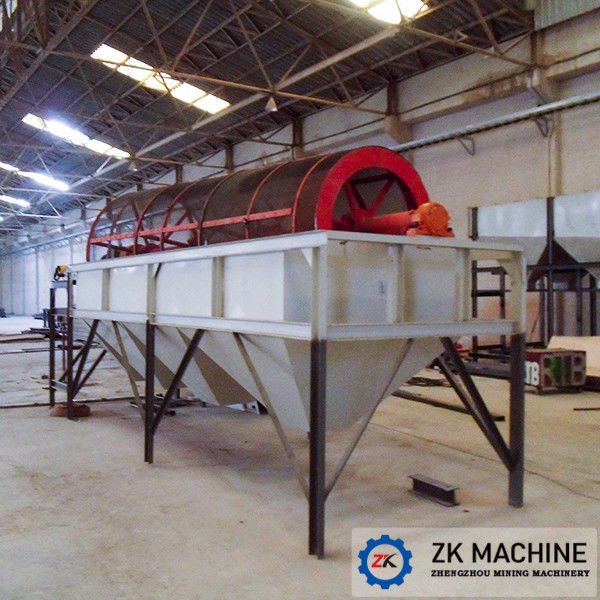

Circular Sand Lightweight Rotary Trommel Screen 2
