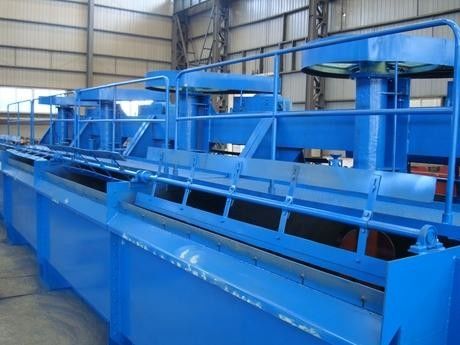

U Type Mineral Separation 180t/H Flotation Machine

U Type Mineral Separation 180t/H Flotation Machine

180t/H Flotation Machine

Mineral Separation Flotation Machine

Place of Origin:

CHINA

Brand Name:

ZK CORP

Certification:

ISO,CE

Model Number:

XCF/KYF Series Flotation Machine

Contact Us
Request A Quote
Product Details
Model:
XCF/KYF Series Flotation Machine
Volume (m3):
0.35-100
Capacity(t/h):
30-180
Equipment Condition:
New
Application:
Mineral, Ore Beneficiation Plant
Spare Parts:
For The Whole Using Life
Installation:
Under Our Engineer's Guide
Place Of Origin:
Henan, China
Advantage:
High Degree Of Automation
Motor Type:
AC Motor
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
MEET THE SHIPPMENT REQUIRMENTS
Delivery Time
30 DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
15 PER MONTH
Product Description

Low Investment XCF/KYF Series Flotation Machine Used For Ore Beneficiation Plant



Introduction:



Flotation Machine is mainly used for separating copper, zinc, lead, nickel, gold and other non-ferrous metals, and it can also be used for ferrous metals and non-metallic rough and refined. Our company mainly supply BF Series Flotation Machine, XCF/KYF Series Flotation Machine, Aerated Flotation Machine etc.





Working principle of Flotation Machine:


The tank is made as u type, reducing sand settlement to the least .Due to reasonable design of the impeller structure and the impeller space, impeller wearing is even. So the service life of the impeller and stator are extended. Model KYF is unable to spontaneously suck slurry, while has low power consumption. In contrast, model XCF has the ability to automatically suck slurry, and may be allocated horizontally without needing foam pump, but consumes more power than model KYF. Therefore, model XCF and model KYF are combined into a set, such as XCF as the sucking tank, and KYF as the direct tank. The combined set can be arranged horizontally without foam pump either.







When the flotation cells machine equipment works



1). The impeller of the flotation cells is driven by the spinning engine triangle to form the centrifugal formation and produce the negative pressure.

2). On one hand, large of inhaled air is mixed with the pulp;

3). On the other hand, the stirred pulp is mixed with the drug to fine the bubble, to make a certain mineral bond on the bubble. Adjust the height of the disc to control the liquid surface and the useful bubble will be scraped out.





XCF/KYF Series Floation Machine Advantages as Followings:
1. Big suction and low power loss;
2. Each cell can suck air, slurry and flotation. It can make a flotation circulate route by itself but without any auxiliary device, The level disposition, is easy for chaging route;
3. The slurry circulation is reasonable, can reduce the coarse sand precipitation mostly furthest;
4. With slurry surface automatic control and electric control system, the adjustment is convenient.



Parameters:

XCF/KYF Series Flotation Equipment

Model Volume (m3) Cell Size (mm) Impeller Dia. (mm) Impeller Speed (r/min) Capacity (m3/min) Power (kw)
XCF/KYF 1 1000x1000x1100 400/340 358/281 0.2-1 5.5/4/1.1
XCF/KYF 2 1300x1300x1250 470/410 331/247 0.4-2 7.5/5.5/1.1
XCF/KYF 3 1600x1600x1400 540/480 266/219 0.6-3 11/7.5/1.5
XCF/KYF 4 1800x1800x1500 620/550 215/200 1.2-4 15/11/1.5
XCF/KYF 6 2050x2050x1750 620/550 215/200 3-6 15/11/1.5
XCF/KYF 50 4400x4400x3500 1200/1030 134 10-40 90/75/1.5
XCF/KYF 70 5100x5100x3800 1120/1120 121 13-50 90/90/1.5
XCF/KYF 100 5900x5900x4200 1260/1260 - 20-60 132/110/1.5


BF Series Flotation Equipment

Model Volume (m3) Cell size (mm) Impeller Dia. (mm) Capacity (m3/min) Power (kw)
BF-0.37 0.37 740x740x750 286 0.2-0.4 1.5/1.1
BF-0.65 0.65 850x950x900 300 0.3-0.7 3/1.1
BF-1.2 1.2 1050x1150x1100 450 0.6-1.2 5.5/1.1
BF-2.0 2 1400x1450x1120 500 1-2 7.5/1.1
BF-2.8 2.8 1650x1650x1150 550 1.4-3 11/1.5
BF-4 4 1900x2000x1200 650 2-4 15/1.5
BF-6 6 2200x2350x1300 700 3-6 18.5/1.5
BF-8 8 2250x2850x1400 760 4-8 30/1.5
BF-10 10 2250x2850x1700 760 5-10 30/1.5
BF-16 16 2850x3800x1700 850 8-16 37/1.5
BF-20 20 2850x3800x2000 850 10-20 37/1.5
BF-24 24 3150x4150x2000 920 12-24 45/1.5
