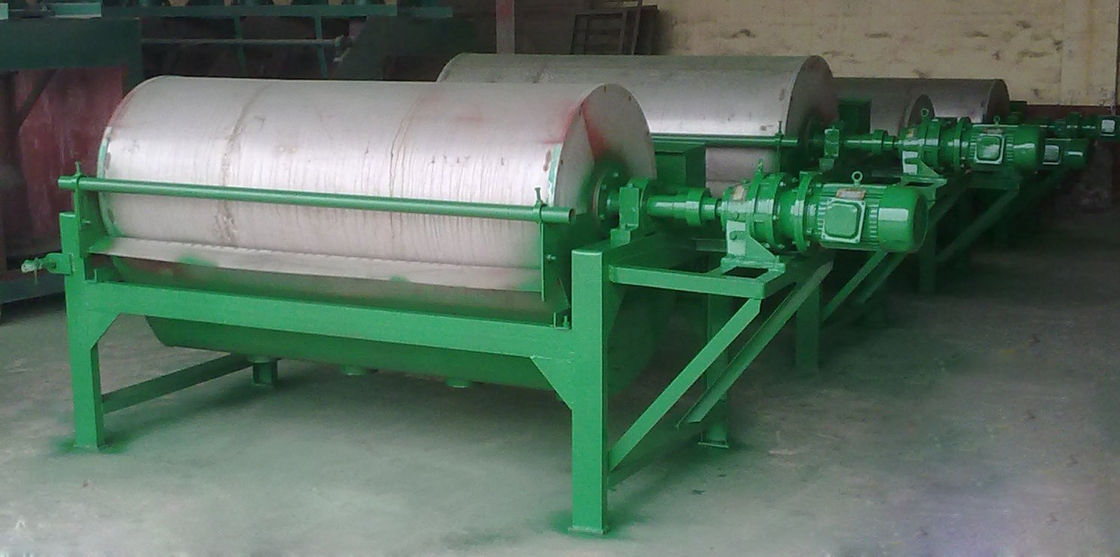

Widely Used Iron Ore Magnetic Separator Machine, Wet / Dry Magnetic Separator
Magnetic separator introduction:
The magnetic separator can separate raw materials with different magnetic rigidities. The magnetic separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.
WORKING PRINCIPLE
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum.
OUR ADVANTAGES
Magnetic separator is suitable for material with particle size below 3mm, it can use wet seperation process for magnetite, pyrrhotite, calcination ore, ilmenite and other materials, but also can remove iron from coal, non-metallic minerals, building materials etc. Its magnetic system adopt high quality ferrite material or material compound with rare-earth magnet material, the magnetic strength of drum surface is 100-600mT.
1. The Magnetic separator can be down-flow, semi-countercurrent, countercurrent type according to customer’s need. There are different magnetic strength for each type.
2. Easy operation and maintenance, simple structure, stable and reliable performance
3. The advantage of magnetic separator is simple structure,large process capacity, easy operation and maintenance and so on.
Parameter:
Model |
DrumDia(mm) |
DrumLength(mm) |
Rotate Speed r/min | Feed Size mm |
Capacity t/h |
Power Kw |
CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
