Product Details:

Place of Origin: CHINA
Brand Name: ZK CORP
Certification: ISO,CE
Model Number: Iron ore flotation machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Delivery Time: 30DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Model: XJ, SF, XCF, KYF, BF Volume (m3): 0.35-100
Capacity (m3/min): 0.18-60 Application: Ore Dressing
After Sale Service: For The Whole Using Life Installation: Under Our Engineer's Guide
Design: Customized Place Of Origin: Henan, China
High Light:

sand flotation

,

flotation equipment

Product Description

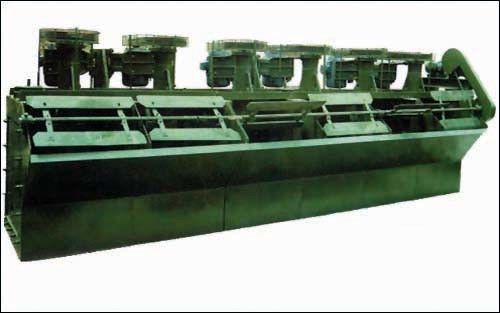

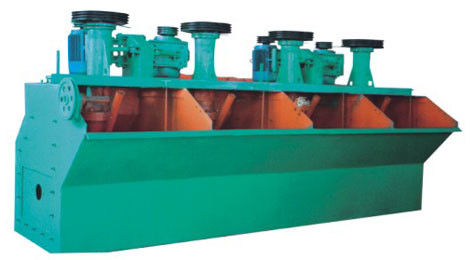

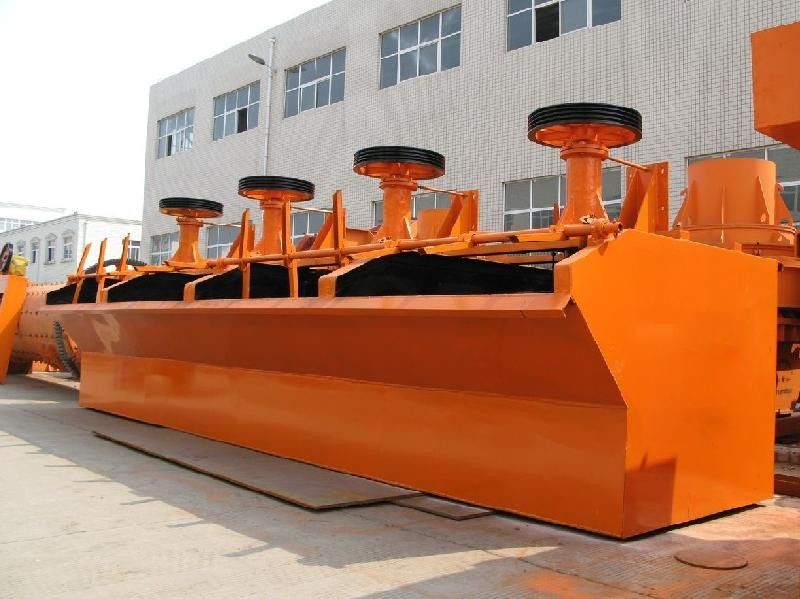

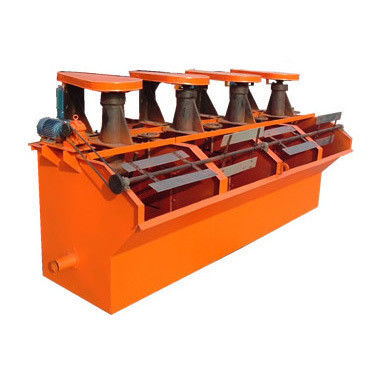

0.35-100m3 Gold Ore Flotation Separator Machine Simple Structure Reliable Operation

Introduction of Flotation Machine

Flotation machine is mainly used for separating copper, zinc, lead, nickel, gold and other non-ferrous metals, and it can also be used for ferrous metals and non-metallic rough and refined. Our company mainly produces three kinds of flotation machine as follows:

0.35-100m3 Gold Ore Flotation Separator Machine Simple Structure Reliable Operation 0

Mechanical Agitating Flotation Machine With Auto Air Suction
New structure of impeller is backwards inclined double impellers equipped with honeycomb duct and dummy bottom. Therefore, the slurry in the tank will cycle upward and downward in a fixed flow manner, which is helpful to the suspension of those coarse particles. Air and slurry are naturally sucked without need for foam pump.


Mechanical Agitating Aeration Flotation Machine Set
Models XCF and KYF are enforced aeration flotation machine. It has a smaller diameter of impeller, thus lower peripheral speed, saving 30-50% of power. Because and air distribut
or is equipped in the tank, air is evenly dispersed. The impeller acts as a centrifugal pump, so as to make the solid particles suspending. The tank is mode as u type, reducing sand settlement to the least .Due to reasonable design of the impeller structure and the impeller space, impeller wearing is even, so , the service life of the impeller and stator are extended. Model KYF is unable to spontaneously suck slurry, while has low power consumption. In contrast, model XCF has the ability to automatically suck slurry, and may be allocated horizontally without need for foam pump, but consumes more power than model KYF. Therefore, model XCF and model KYF are combined into a set, i.e., XCF as the sucking tank, and KYF as the direct tank. The combined set can be arranged horizontally without foam pump either.

Mechanical Agitating Flotation Machine with Auto Air Suction
The BF flotation machine impeller is composed of the closed double frustum, may produce the strong slurry under to circulate, its characteristic: (1) the suction intensity is big, the power loss is low.(2)each trough has the suction, attracts the thick liquid and the flotation process function, from becomes the flotation process return route, does not need any supporting facility, the level disposition, is advantageous for the flow change.(3) the slurry circulation is reasonable, can maximum limit reduce the coarse sand precipitation.(4) is equipped with the slurry surface automatic control and the electrically controlled installment, the adjustment is convenient.

0.35-100m3 Gold Ore Flotation Separator Machine Simple Structure Reliable Operation 1

Parameter of Flotation Machine

Model

Volume

(m3)

Cell Size

(mm)

Impeller Dia.

(mm)

Impeller Speed

(r/min)

Capacity

(m3/min)

Power

(kw)

XCF/KYF 1 1000x1000x1100 400/340 358/281 0.2-1 5.5/4/1.1
XCF/KYF 2 1300x1300x1250 470/410 331/247 0.4-2 7.5/5.5/1.1
XCF/KYF 3 1600x1600x1400 540/480 266/219 0.6-3 11/7.5/1.5
XCF/KYF 4 1800x1800x1500 620/550 215/200 1.2-4 15/11/1.5
XCF/KYF 6 2050x2050x1750 620/550 215/200 3-6 15/11/1.5
XCF/KYF 50 4400x4400x3500 1200/1030 134 10-40 90/75/1.5
XCF/KYF 70 5100x5100x3800 1120/1120 121 13-50 90/90/1.5
XCF/KYF 100 5900x5900x4200 1260/1260   20-60 132/110/1.5
