Copper Ore Froth Flotation Machine High Efficiency Long Service Life
Product Details:
Place of Origin: | CHINA |
Brand Name: | ZK CORP |
Certification: | ISO,CE |
Model Number: | Iron ore flotation machine |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Delivery Time: | 30DAYS |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information |
|||
Model: | XJ, SF, XCF, KYF, BF | Volume (m3): | 0.35-100 |
---|---|---|---|
Capacity (m3/min): | 0.18-60 | Application: | Ore Dressing |
After Sale Service: | For The Whole Using Life | Installation: | Under Our Engineer's Guide |
Design: | Customized | Place Of Origin: | Henan, China |
High Light: | flotation equipment,flotation cell |
Product Description

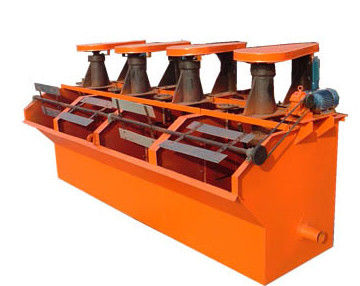

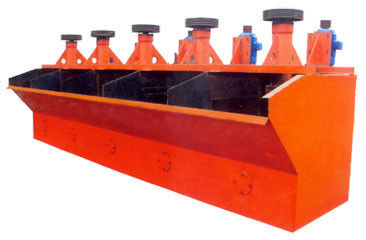

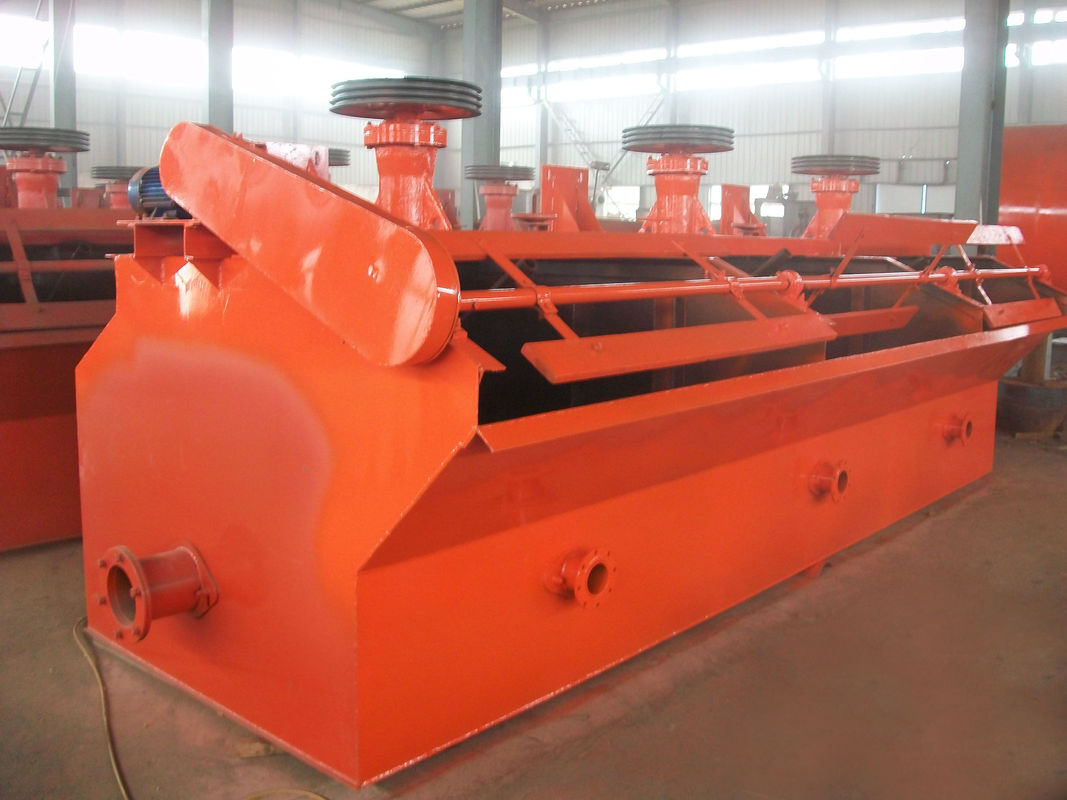

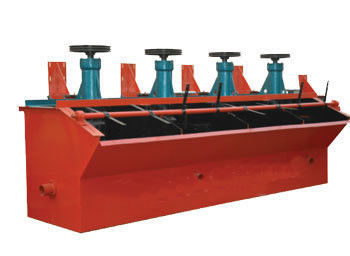

New Style BF Series Beneficiation Copper Ore Froth Flotation Machine
Introduction:
Flotation machine is applicable for the extraction of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum and the separation of ferrous metals and non-metals. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral absorbs on bubbles, floats on the surface of slurry and then is scraped out, other minerals still stay.
Working principle of Flotation Machine:
Flotation cell equipment is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electro motor.
When the flotation cells machine equipment works
1). The impeller of the flotation cells is driven by the spinning engine triangle to form the centrifugal formation and produce the negative pressure.
2). On one hand, large of inhaled air is mixed with the pulp;
3). On the other hand, the stirred pulp is mixed with the drug to fine the bubble, to make a certain mineral bond on the bubble. Adjust the height of the disc to control the liquid surface and the useful bubble will be scraped out.
Advantages of Floatation Machine:
Parameters:
XCF/KYF Series Flotation Equipment
Model | Volume (m3) | Cell Size (mm) | Impeller Dia. (mm) | Impeller Speed (r/min) | Capacity (m3/min) | Power (kw) |
XCF/KYF | 1 | 1000x1000x1100 | 400/340 | 358/281 | 0.2-1 | 5.5/4/1.1 |
XCF/KYF | 2 | 1300x1300x1250 | 470/410 | 331/247 | 0.4-2 | 7.5/5.5/1.1 |
XCF/KYF | 3 | 1600x1600x1400 | 540/480 | 266/219 | 0.6-3 | 11/7.5/1.5 |
XCF/KYF | 4 | 1800x1800x1500 | 620/550 | 215/200 | 1.2-4 | 15/11/1.5 |
XCF/KYF | 6 | 2050x2050x1750 | 620/550 | 215/200 | 3-6 | 15/11/1.5 |
XCF/KYF | 50 | 4400x4400x3500 | 1200/1030 | 134 | 10-40 | 90/75/1.5 |
XCF/KYF | 70 | 5100x5100x3800 | 1120/1120 | 121 | 13-50 | 90/90/1.5 |
XCF/KYF | 100 | 5900x5900x4200 | 1260/1260 | - | 20-60 | 132/110/1.5 |
BF Series Flotation Equipment
Model | Volume (m3) | Cell size (mm) | Impeller Dia. (mm) | Capacity (m3/min) | Power (kw) |
BF-0.37 | 0.37 | 740x740x750 | 286 | 0.2-0.4 | 1.5/1.1 |
BF-0.65 | 0.65 | 850x950x900 | 300 | 0.3-0.7 | 3/1.1 |
BF-1.2 | 1.2 | 1050x1150x1100 | 450 | 0.6-1.2 | 5.5/1.1 |
BF-2.0 | 2 | 1400x1450x1120 | 500 | 1-2 | 7.5/1.1 |
BF-2.8 | 2.8 | 1650x1650x1150 | 550 | 1.4-3 | 11/1.5 |
BF-4 | 4 | 1900x2000x1200 | 650 | 2-4 | 15/1.5 |
BF-6 | 6 | 2200x2350x1300 | 700 | 3-6 | 18.5/1.5 |
BF-8 | 8 | 2250x2850x1400 | 760 | 4-8 | 30/1.5 |
BF-10 | 10 | 2250x2850x1700 | 760 | 5-10 | 30/1.5 |
BF-16 | 16 | 2850x3800x1700 | 850 | 8-16 | 37/1.5 |
BF-20 | 20 | 2850x3800x2000 | 850 | 10-20 | 37/1.5 |
BF-24 | 24 | 3150x4150x2000 | 920 | 12-24 | 45/1.5 |
