Product Details:

Place of Origin: CHINA
Brand Name: ZK CORP
Certification: ISO,CE
Model Number: Iron ore flotation machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Delivery Time: 30DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Model: XJ, SF, XCF, KYF, BF Volume (m3): 0.35-100
Capacity (m3/min): 0.18-60 After Sale Service: For The Whole Using Life
Installation: Under Our Engineer's Guide Design: Customized
Application: Mineral, Ore Beneficiation Plant Type: Flotation Separator, Magnetic Separator
Color: Customers' Requirements Keywords: Flotation Machine,flotation Cell
High Light:

flotation equipment

,

flotation cell

Product Description

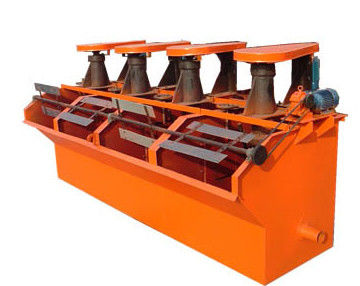

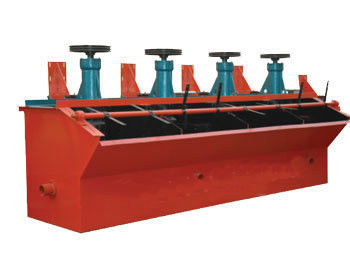

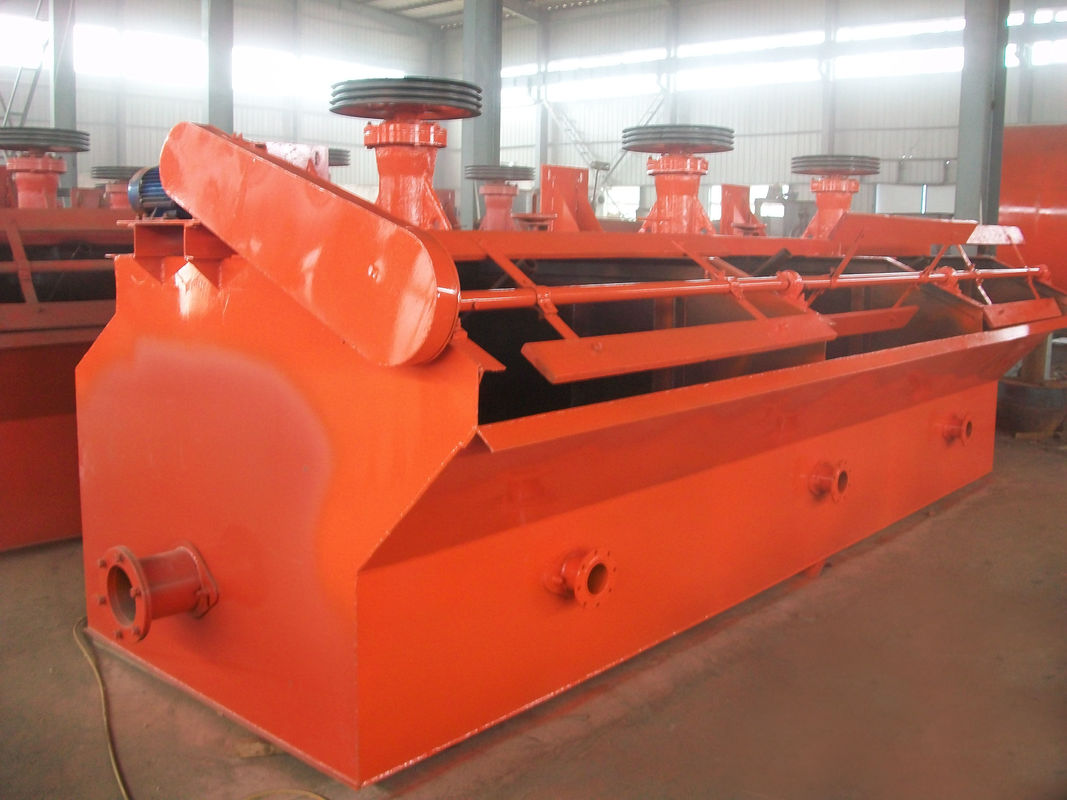

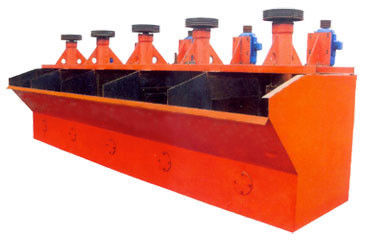

Efficient Mining Flotation Machine Easy Installation Superior Performance



Introduction:

Flotation Machine is mainly used for separating copper, zinc, lead, nickel, gold and other non-ferrous metals, and it can also be used for ferrous metals and non-metallic rough and refined. Our company mainly produces three kinds of flotation machine as follows:

Efficient Mining Flotation Machine Easy Installation Superior Performance 0



- Mechanical Agitating Flotation Equipment With Auto Air Suction
New structure of impeller is backwards inclined double impellers equipped with honeycomb duct and dummy bottom. Therefore, the slurry in the tank will cycle upward and downward in a fixed flow manner, which is helpful to the suspension of those coarse particles. Air and slurry are naturally sucked without need for foam pump.

- Mechanical Agitating Aeration Flotation Equipment Set
Models XCF and KYF are enforced aeration flotation machine. It has a smaller diameter of impeller, thus lower peripheral speed, saving 30-50% of power. Because and air distribut or is equipped in the tank, air is evenly dispersed. The impeller acts as a centrifugal pump, so as to make the solid particles suspending. The tank is mode as u type, reducing sand settlement to the least .Due to reasonable design of the impeller structure and the impeller space, impeller wearing is even, so , the service life of the impeller and stator are extended. Model KYF is unable to spontaneously suck slurry, while has low power consumption. In contrast, model XCF has the ability to automatically suck slurry, and may be allocated horizontally without need for foam pump, but consumes more power than model KYF. Therefore, model XCF and model KYF are combined into a set, i.e., XCF as the sucking tank, and KYF as the direct tank. The combined set can be arranged horizontally without foam pump either.

- Mechanical Agitating Flotation Machine with Auto Air Suction
The BF flotation machine impeller is composed of the closed double frustum, may produce the strong slurry under to circulate, its characteristic: (1) The suction intensity is big, the power loss is low. (2) Each trough has the suction, attracts the thick liquid and the flotation process function, from becomes the flotation process return route, does not need any supporting facility, the level disposition, is advantageous for the flow change. (3) The slurry circulation is reasonable, can maximum limit reduce the coarse sand precipitation. (4) Is equipped with the slurry surface automatic control and the electrically controlled installment, the adjustment is convenient.



Advantages of Flotation Machine

1. Self-absorption of air.
2. Good cycling property of pulp.
3. Flotation machine's suction volume is relatively stable.
4. Medium mixing strength and good suspension of solid particles.
5. The liquid level of the flotation machine is stable and it has low power consumption.


BF Series Flotation Equipment

Model Volume (m3) Cell size (mm) Impeller Dia. (mm) Capacity (m3/min) Power (kw)
BF-0.37 0.37 740x740x750 286 0.2-0.4 1.5/1.1
BF-0.65 0.65 850x950x900 300 0.3-0.7 3/1.1
BF-1.2 1.2 1050x1150x1100 450 0.6-1.2 5.5/1.1
BF-2.0 2 1400x1450x1120 500 1-2 7.5/1.1
BF-2.8 2.8 1650x1650x1150 550 1.4-3 11/1.5
BF-4 4 1900x2000x1200 650 2-4 15/1.5
BF-6 6 2200x2350x1300 700 3-6 18.5/1.5
BF-8 8 2250x2850x1400 760 4-8 30/1.5
BF-10 10 2250x2850x1700 760 5-10 30/1.5
BF-16 16 2850x3800x1700 850 8-16 37/1.5
BF-20 20 2850x3800x2000 850 10-20 37/1.5
BF-24 24 3150x4150x2000 920 12-24 45/1.5
