Iron Manganese Ore Magnetic Separation Equipment Low Power Consumption

Iron Manganese Ore Magnetic Separation Equipment Low Power Consumption

Product Details:

Place of Origin: China
Brand Name: ZK
Certification: ISO,CE
Model Number: Magnetic separator

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Meet the shippment requirments
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 per month
Get Best Price Contact Now

Detail Information

Capaicty: 10-180 (t/h) Model: CTB6012,CTB1230
Shell Dia: 600-1200 (mm) Shell Length: 1200-3000 (mm)
Type: Wet And Dry Place Of Origin: Henan, China
Dimension(L*W*H): Customer Request Installation: Under Our Engineer's Guide
Design: By Our Professional Engineer Condition: New
High Light:

magnetic separation equipment

,

iron ore magnetic separator

Product Description

Iron Manganese Ore Magnetic Separation Equipment Low Power Consumption



Magnetic separator introduction:

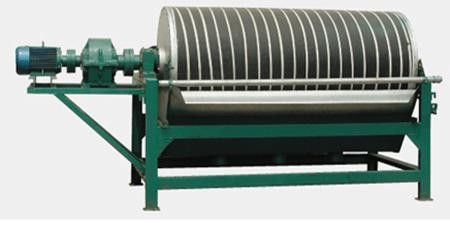

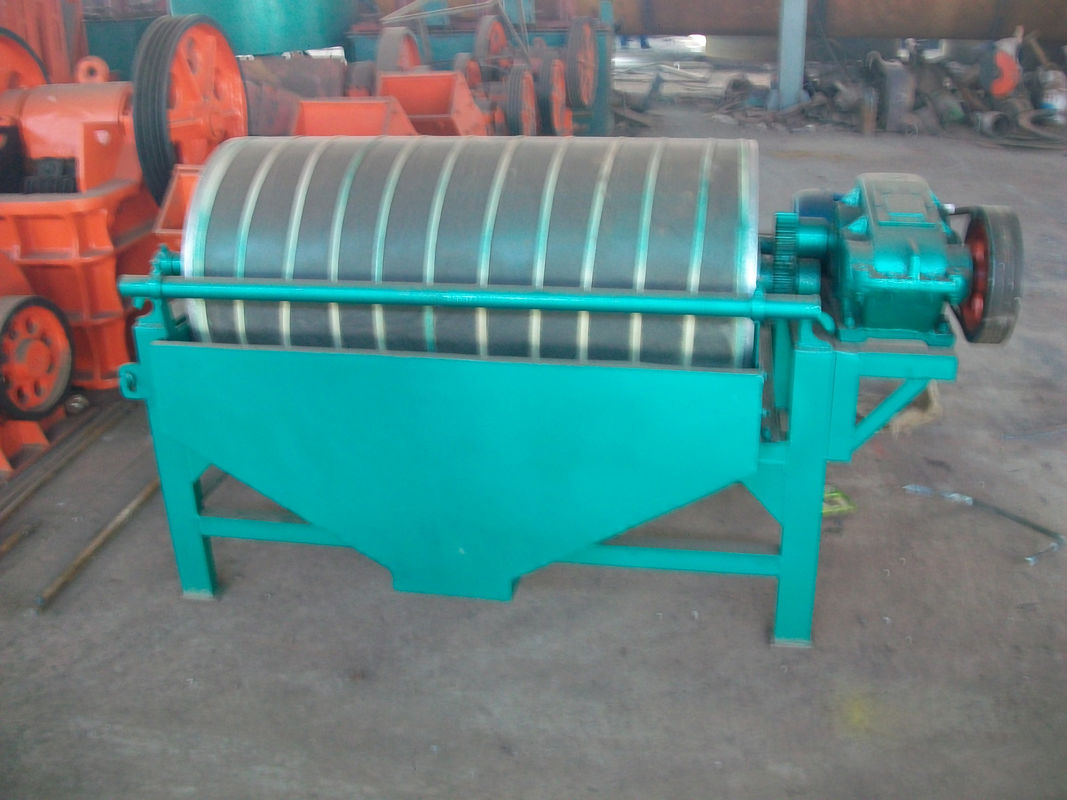

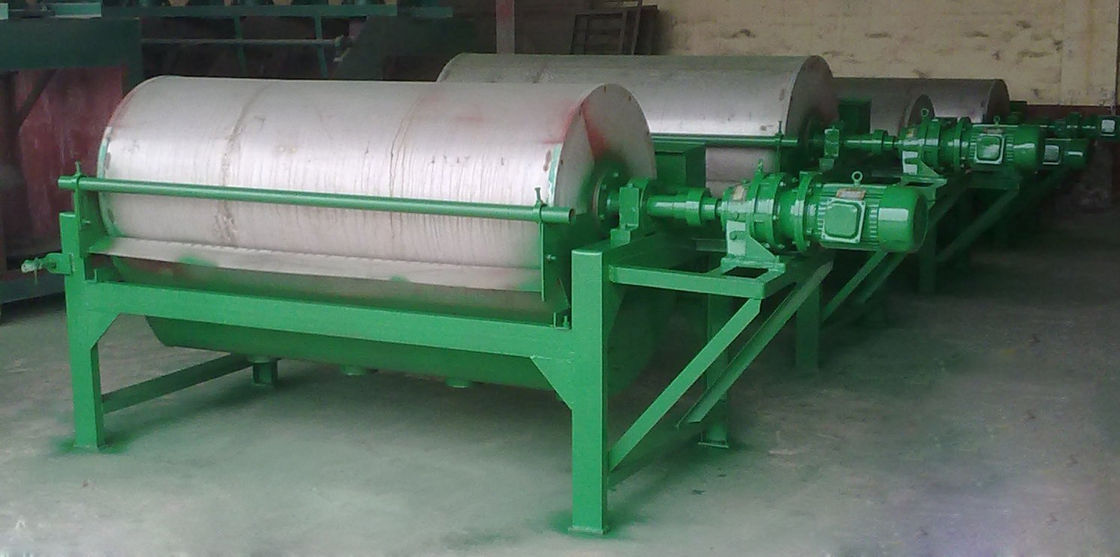

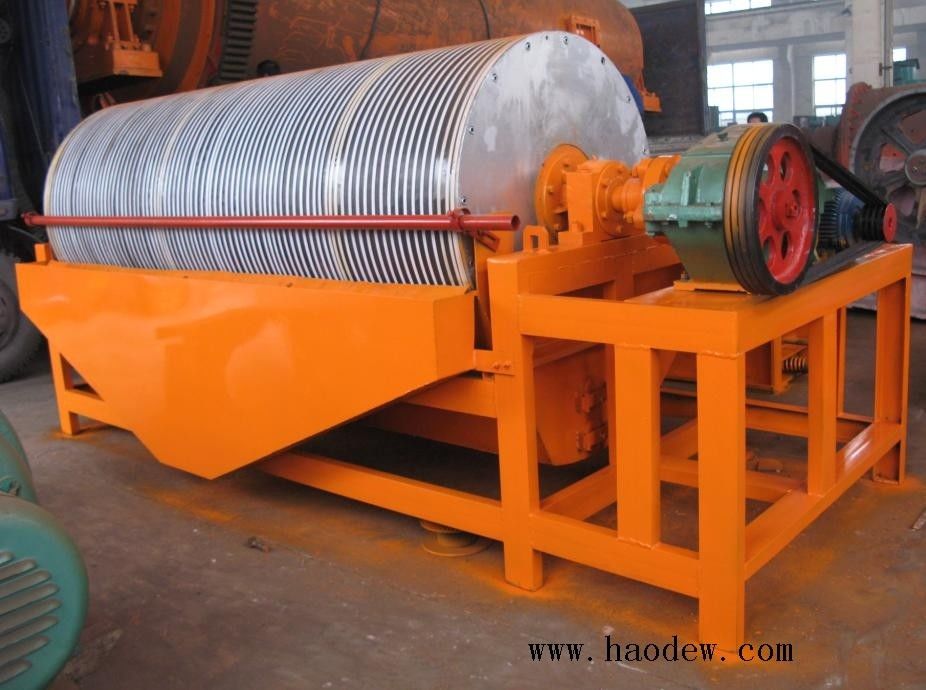

The iron ore dry magnetic separator is a piece of mineral processing equipment used to recover ferromagnetic materials. It is fit for processing fine, feebly magnetic materials, such as magnetite, pyrrhotite, ilmenite and other materials. In recent years, it can also be used in removing the magnetic minerals from coal, non-metallic minerals, building materials and more.jiangtai iron ore dry magnetic separator is a kind of permanent magnetic drum magnetic separator. Three types of tanks including concurrent flow tank, backflow tank and semi-backflow tank are available to suit different materials and process.



Iron Manganese Ore Magnetic Separation Equipment Low Power Consumption 0


Working Principle:
Since the magnetization coefficient of various minerals is different, so under the same magnetic force, strong magnetic materials will get stuck onto the surface of the shell, thus separating from the materials that can not be attracted


Features :
1. Reasonable structure, easy installation and operation,
2. Applicable to both wet and dry process
3. Permanent magnetic shell, the magnetic intensity on the shell surface can be designed according to actual application, with strong processing capacity and low maintenance cost.

Model

Drum Dia
mm

Drum Length
mm

Rotate Speed r/minFeed Size
mm
Capacity
t/h
Power
Kw
CTB60126001200<352-010-201.5
CTB60186001800<352-015-302.2
CTB75187501800<352-020-452.2
CTB90189001800<353-040-603
CTB90219002100<353-045-603
CTB90249002400<283-045-704
CTB101810501800<203-050-755.5
CTB102110502100<203-050-1005.5
CTB102410502400<203-060-1205.5
CTB121812001800<183-080-1405.5
CTB122412002400<183-085-1807.5
CTB123012003000<183-0100-1807.5
