2-180 T/H Magnetic Separator Machine , Wet / Dry Iron Ore Magnetic Separator

2-180 T/H Magnetic Separator Machine , Wet / Dry Iron Ore Magnetic Separator

magnetic drum separator

iron ore magnetic separator

Brand Name:

ZK

Certification:

ISO,CE

Model Number:

Magnetic separator

Contact Us
Request A Quote
Product Details
Place Of Origin:
Henan, China
Capaicty:
10-180 (t/h)
Model:
CTB6012,CTB1230
Shell Dia:
600-1200 (mm)
Shell Length:
1200-3000 (mm)
Type:
Wet And Dry
Dimension(L*W*H):
Customer Request
Installation:
Under Our Engineer's Guide
Design:
By Our Professional Engineer
Condition:
New
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Meet the shippment requirments
Delivery Time
30days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 per month
Product Description

2-180 T/H Magnetic Separator Machine , Wet / Dry Iron Ore Magnetic Separator



Magnetic separator is the high versatility machine, which is widely used in ore dressing, recycling, ceramic, chemical industry. The main function is remove iron from powdery material.

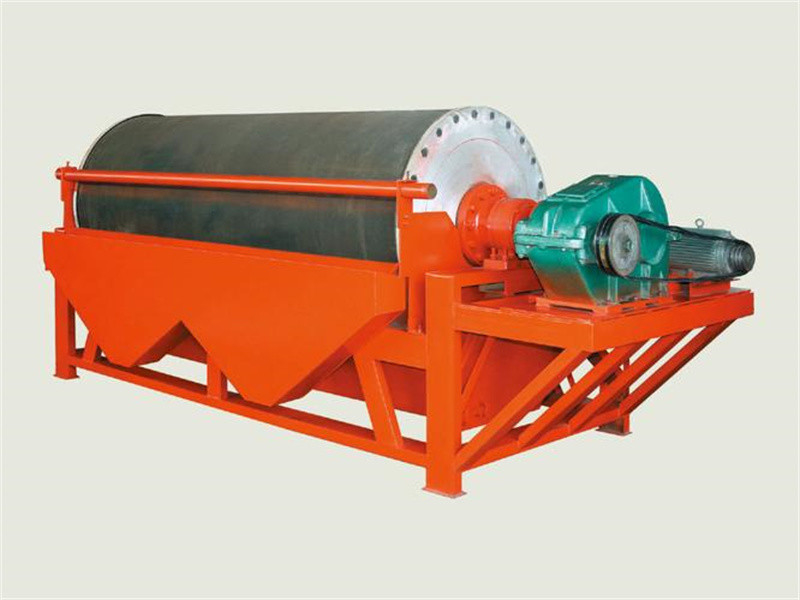

2-180 T/H Magnetic Separator Machine , Wet / Dry Iron Ore Magnetic Separator 0

Magnetic separator is suitable for maaterial with particle size below 3mm, it can use wet seperation process for magnetite, pyrrhotite, calcination ore, ilmenite and other materials, but also can remove iron from coal, non-metallic minerals, building materials etc. Its magnetic system adopt high quality ferrite material or material compound with rare-earth magnet material, the magnetic strength of drum surface is 100-600mT.

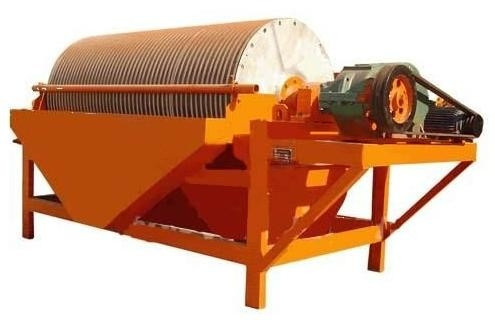

2-180 T/H Magnetic Separator Machine , Wet / Dry Iron Ore Magnetic Separator 1

The magnetic separator can separate raw materials with different magnetic rigidities. The magnetic separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.



Working Principle of Magnetic Separator:
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.

Advantages of Magnetic Seperator:



1. Magnetic system material is high performance & high quality Ferrite material.

2. Wide range of granularity, high separation precision, simple structure, maintain conveniently.

3. Simple structure,large process capacity, easy operation and maintenance and so on.



Parameter:





Model Shell Diameter (mm) Shell Length
(mm)
Magnetic Strength Revolving Speed (r/min) Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
CTB6012 600 1200 MT>100 <35 2-0 10-20 1.5
CTB6018 600 1800 MT>100 <35 2-0 15-30 2.2
CTB7518 750 1800 MT>120 <35 2-0 20-45 2.2
CTB9018 900 1800 MT>130 <35 3-0 40-60 3
CTB9021 900 2100 MT>130 <35 3-0 45-60 3
CTB9024 900 2400 MT>130 <28 3-0 45-70 4
CTB1018 1050 1800 MT>135 <20 3-0 50-75 5.5
CTB1021 1050 2100 MT>135 <20 3-0 50-100 5.5
CTB1024 1050 2400 MT>135 <20 3-0 60-120 5.5
CTB1218 1200 1800 MT>135 <18 3-0 80-140 5.5
CTB1224 1200 2400 MT>135 <18 3-0 85-180 7.5
CTB1230 1200 3000 MT>135 <18 3-0 100-180 7.5
CTB1530 1500 3000 MT>135 <14 3-0 170-280 11
