Place of Origin:
China
Brand Name:
ZK
Certification:
ISO,CE
Model Number:
Magnetic separator

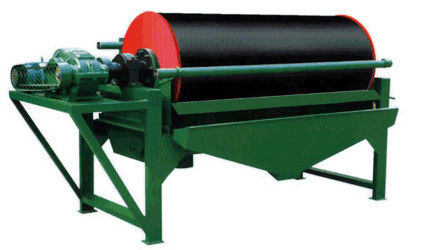

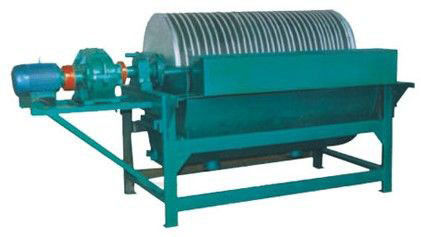

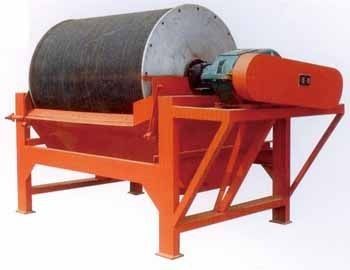

Low Noise Dry Magnetic Separator Machine Ore River Sand Gold Fluorite Beneficiation Plant
Magnetic separator introduction:
The iron ore dry magnetic separator is a piece of mineral processing equipment used to recover ferromagnetic materials. It is fit for processing fine, feebly magnetic materials, such as magnetite, pyrrhotite, ilmenite and other materials. In recent years, it can also be used in removing the magnetic minerals from coal, non-metallic minerals, building materials and more.jiangtai iron ore dry magnetic separator is a kind of permanent magnetic drum magnetic separator. Three types of tanks including concurrent flow tank, backflow tank and semi-backflow tank are available to suit different materials and process.
Working Principle:
Since the magnetization coefficient of various minerals is different, so under the same magnetic force, strong magnetic materials will get stuck onto the surface of the shell, thus separating from the materials that can not be attracted
Features :
1. Reasonable structure, easy installation and operation,
2. Applicable to both wet and dry process
3. Permanent magnetic shell, the magnetic intensity on the shell surface can be designed according to actual application, with strong processing capacity and low maintenance cost.
Model |
Drum Dia mm |
Drum Length mm |
Rotate Speed r/min | Feed Size mm |
Capacity t/h |
Power Kw |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
