Customized Iron Sand Magnetic Separator Easy Installation Low Power Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | ZK |
| Certification: | ISO,CE |
| Model Number: | Magnetic separator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Meet the shippment requirments |
| Delivery Time: | 30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 per month |
|
Detail Information |
|||
| Capaicty: | 10-180 (t/h) | Model: | CTB6012,CTB1230 |
|---|---|---|---|
| Shell Dia: | 600-1200 (mm) | Shell Length: | 1200-3000 (mm) |
| Type: | Wet And Dry | Place Of Origin: | Henan, China |
| Dimension(L*W*H): | Customer Request | Installation: | Under Our Engineer's Guide |
| Design: | By Our Professional Engineer | Condition: | New |
| High Light: | magnetic separation equipment,iron ore magnetic separator |
||
Product Description
Customized Iron Sand Magnetic Separator Easy Installation Low Power Consumption
1. Magnetic separator introduction:

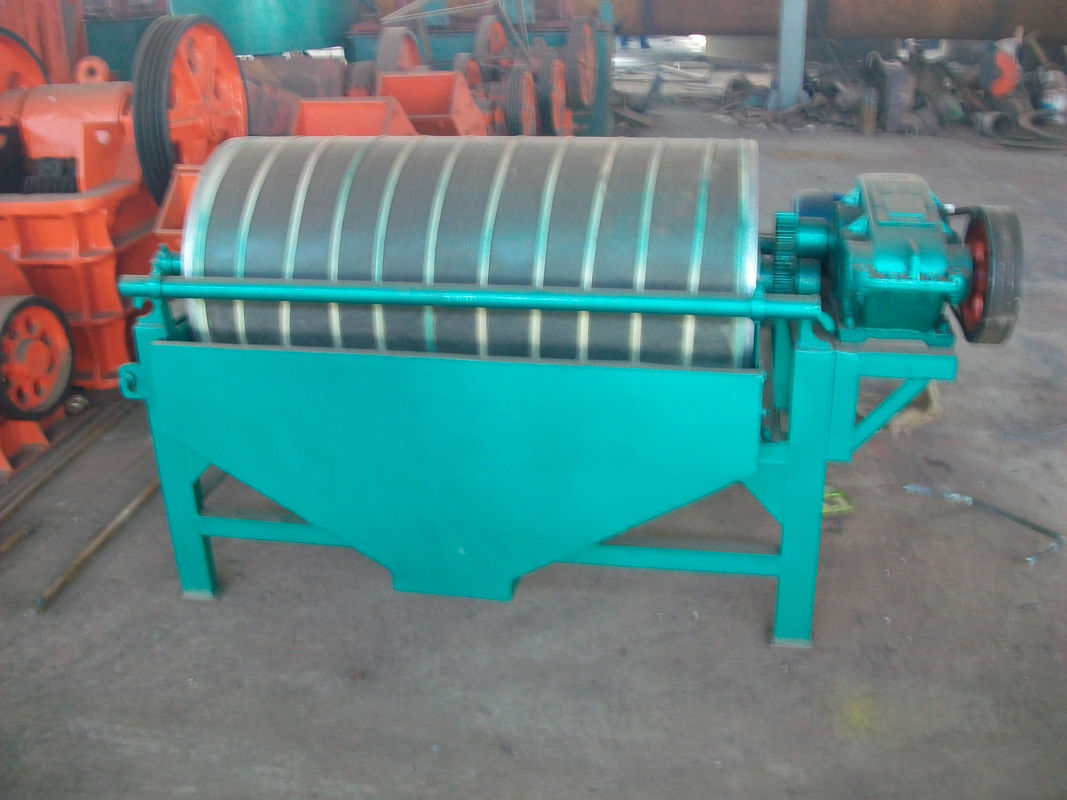

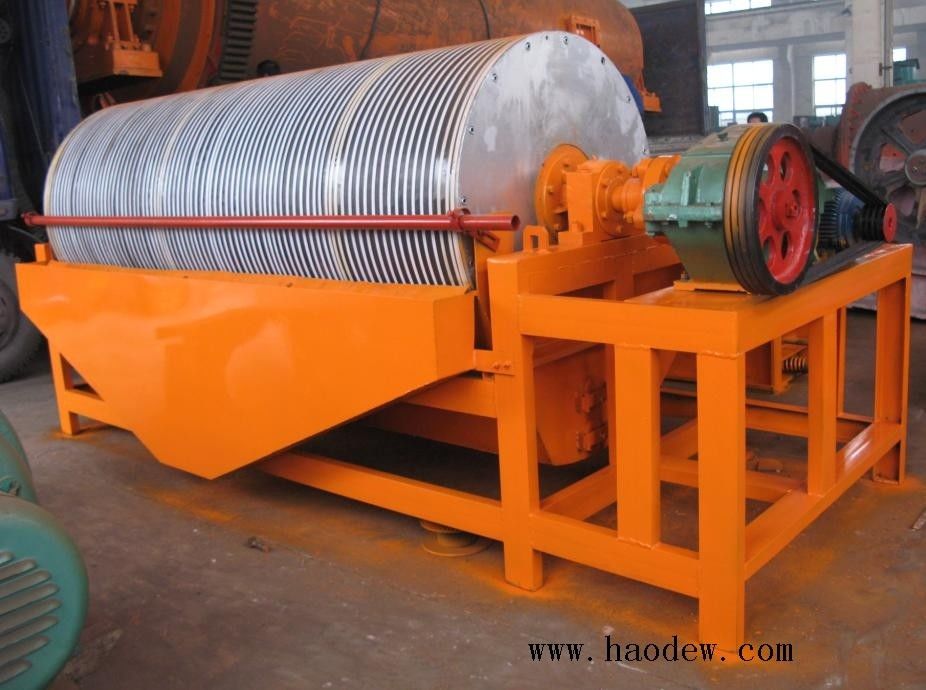

The iron ore dry magnetic separator is a piece of mineral processing equipment used to recover ferromagnetic materials. It is fit for processing fine, feebly magnetic materials, such as magnetite, pyrrhotite, ilmenite and other materials. In recent years, it can also be used in removing the magnetic minerals from coal, non-metallic minerals, building materials and more.jiangtai iron ore dry magnetic separator is a kind of permanent magnetic drum magnetic separator. Three types of tanks including concurrent flow tank, backflow tank and semi-backflow tank are available to suit different materials and process.
2. Working Principle:
Since the magnetization coefficient of various minerals is different, so under the same magnetic force, strong magnetic materials will get stuck onto the surface of the shell, thus separating from the materials that can not be attracted
3. Features :
1. Reasonable structure, easy installation and operation,
2. Applicable to both wet and dry process
3. Permanent magnetic shell, the magnetic intensity on the shell surface can be designed according to actual application, with strong processing capacity and low maintenance cost.
| Model |
Drum Dia mm |
Drum Length mm |
Rotate Speed r/min | Feed Size mm |
Capacity t/h |
Power Kw |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
