Mining Metal Ore Magnetic Separator Machine High Separation Precision

Mining Metal Ore Magnetic Separator Machine High Separation Precision

magnetic drum separator

iron ore magnetic separator

Place of Origin:


Brand Name:




Model Number:

Ore Magnetic Separator

Contact Us
Request A Quote
Product Details
CTB6012 -- CTB1230
Shell Dia:
600 - 1500 (mm)
Shell Length:
1200 - 3000 (mm)
10 - 280 (t/h)
Magnetic Separator, Centrifuge, Mineral Magnet Roller Drum Magnetic Separator
12 Months
Customers' Requirements
Ore,Chemical Industry And Construction,stone,Manganese Tungsten Columbite,Quarry
Magnetic Separator, Flotation Machine
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Delivery Time
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
Product Description


Mining Metal Ore Magnetic Separator Machine High Separation Precision

This magnetic separator can separate raw materials with different magnetic rigidities. The machine works by using magnetic force and the machine force. Magnetic separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications.

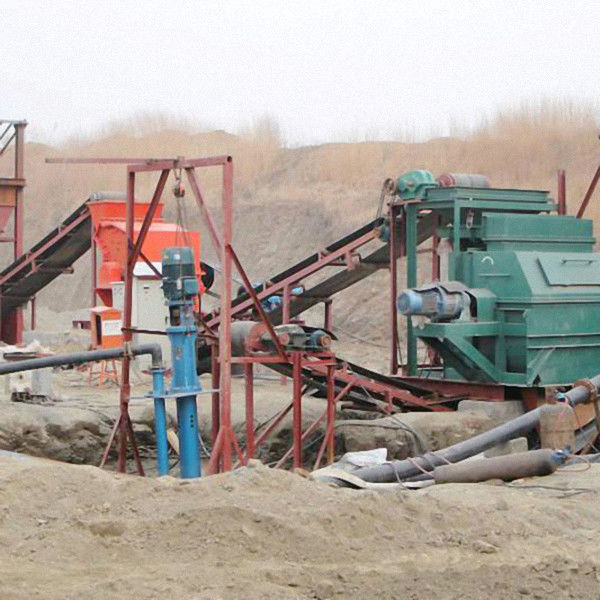

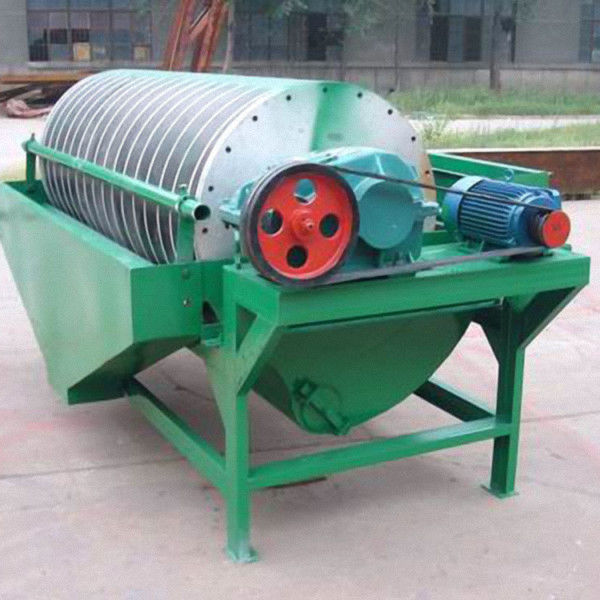

Mining Metal Ore Magnetic Separator Machine High Separation Precision 0

Magnetic Separator Structure:
The heart of each separator is the magnetic system. with a unique design it has a proven record of high efficiency. Available in a circular design with process vessel diameters smaller than 3mm, this magnetic separator is an efficient piece of equipment for processing fine magnetic minerals, such as hematite, limonite, wolfram, ilmenite and tantalum-niobium. Recently, this equipment has also been more and more frequently used in purifying quartz, feldspar and nephline.

Magnetic Separator Features:
The magnetic system is a ring-shaped chain closed magnetic circuit with energizing coils made of copper tubing and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as a magnetic matrix. This separator features a short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, a simple structure and easy maintenance.


Working principle:
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.

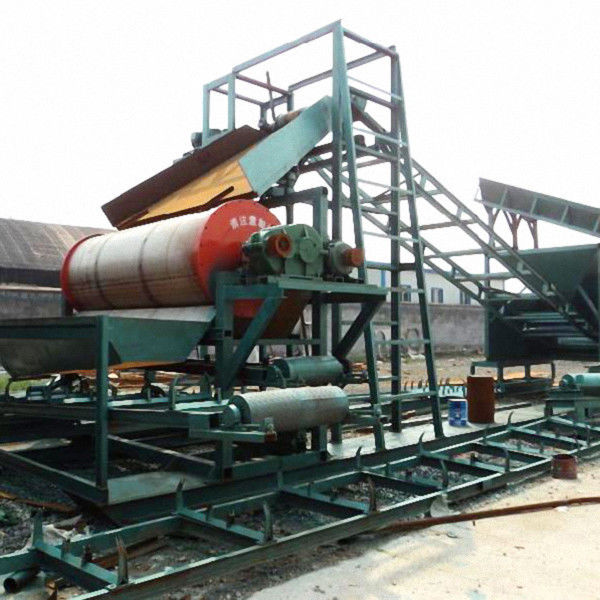

Mining Metal Ore Magnetic Separator Machine High Separation Precision 1

1. Magnetic system material is high performance & high quality Ferrite material.
2. Wide range of granularity, high separation precision, simple structure, maintain conveniently.


Model Shell Diameter (mm) Shell Length (mm) Magnetic Strength Revolving Speed (r/min) Feeding Size(mm) Capacity (t/h) Power (kw)
CTB6012 600 1200 MT>100 <35 2-0 10-20 1.5
CTB6018 600 1800 MT>100 <35 2-0 15-30 2.2
CTB7518 750 1800 MT>120 <35 2-0 20-45 2.2
CTB9018 900 1800 MT>130 <35 3-0 40-60 3
CTB9021 900 2100 MT>130 <35 3-0 45-60 3
CTB9024 900 2400 MT>130 <28 3-0 45-70 4
CTB1018 1050 1800 MT>135 <20 3-0 50-75 5.5
CTB1021 1050 2100 MT>135 <20 3-0 50-100 5.5
CTB1024 1050 2400 MT>135 <20 3-0 60-120 5.5
CTB1218 1200 1800 MT>135 <18 3-0 80-140 5.5
CTB1224 1200 2400 MT>135 <18 3-0 85-180 7.5
CTB1230 1200 3000 MT>135 <18 3-0 100-180 7.5
CTB1530 1500 3000 MT>135 <14 3-0 170-280 11
