Name: Multipurpose Linear Motion Vibrating Screen For Chemical Metallurgy Industry
Brand: ZK CORP
SKU: Screen Layer:1-2
Rating: 4.9 (170 reviews)

Home > products > Vibrating Screen Machine >

Multipurpose Linear Motion Vibrating Screen For Chemical Metallurgy Industry

linear vibrating screen

vibratory sand screening machine

Place of Origin:

China

Brand Name:

ZK CORP

Certification:

ISO,CE

Model Number:

Screen Layer:1-2

Request A Quote

Multipurpose Linear Motion Vibrating Screen For Chemical Metallurgy Industry

Product Details

Product Name:

Circular Vibrating Screen, Linear Vibrating Screen, Vibrating Screen Price

Works:

Rotary Vane Shaker

Condition:

New

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Warranty:

12 Months

Motor Type:

AC Motor

Spare Parts:

Supply All Using Life

Voltage:

220V/380V/440

Mining Object:

Vibrating Screen

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Meet the shipment requirments

Delivery Time

30days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

80 Set / Sets per Month

10-600TPH Vibrating Screen Machine For Ore Dressing

Get Best Price

High Frequency Slurry Coal 8.1m2 Vibrating Screen Machine

Get Best Price

Low Noise Chemicals 650t/H Linear Vibrating Screen

Get Best Price

Electric Motor 8m2 550TPH Vibrating Screen Machine

Get Best Price

86-18037866379

ec09@zkcorp.com

86-371-55902858

Contact Now

Product Description

Multipurpose Linear Motion Vibrating Screen For Chemical Metallurgy Industry

Introduction:

YK Vibrating Screen is the high efficiency screen that manufacture with German technology. It is suitable for screening stones in quarry, and also applicable for Coal dressing, Ore beneficiation, Construction, Metallurgy, Electricity and Chemical industry, etc.

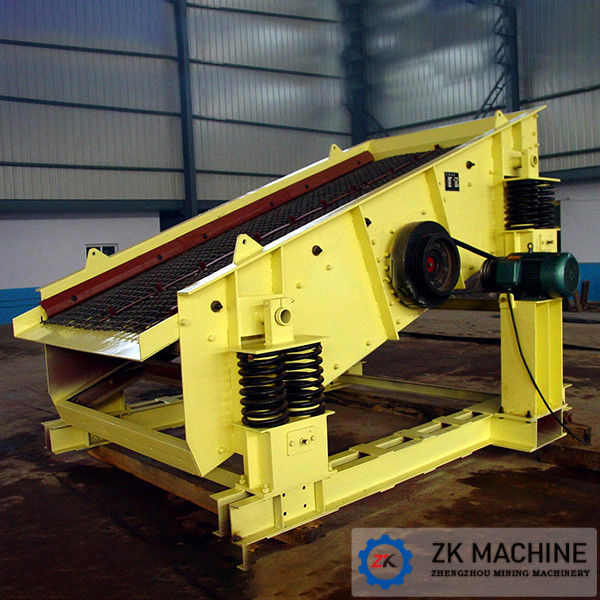

YK Vibrating Screen have adopt eccentric block as vibrating force and make screen box operating circular motion, which have features of advanced technology, strong vibrating strength, high processing ability, high screening efficiency etc. Screen will adopt different structure type with single layer, double layer and multi-layer according to different screening requirement. Screen with variable material and structure can be selected for different material, also different fixed type of screen can be applicable for different screen and working condition.

Multipurpose Linear Motion Vibrating Screen For Chemical Metallurgy Industry 0

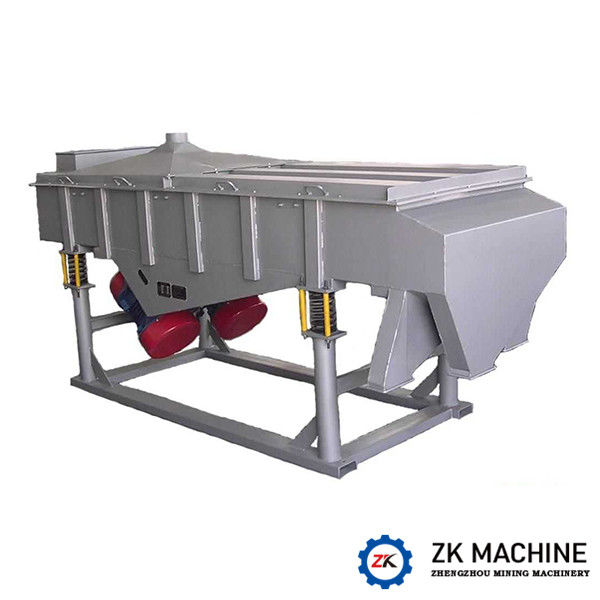

Linear vibration sieve using vibration motor as vibration source, the materials is thrown up on the screen, at the same time for linear motion, the material feeding from the feeder evenly into the screen, screen material, produced a number of specifications through multi-layer screen material, separately from the respective outlet.

Multipurpose Linear Motion Vibrating Screen For Chemical Metallurgy Industry 1

Features:

1. Adopt tire coupling, flexible connection with smooth operation and low compacting to motor.

2. Adopt inclined structure with small amplitude and high frequency, which have features like high screening efficiency, large processing ability, long life time, low energy consumption and low noise.

3. The material of screen is wear-resistance, fatigue-resistance and corrosion-resistance, also have features like high aperture ratio, light weight and high classification accuracy.

4. Adopt steel spiral spring as vibration damper, which have reliable performance and long life time.

5. Flexible for usage, processing capacity can be control by adjusting screen inclination.

Parameter:

Model	Screen layer	deck size (m³)	Vibration frequency (r/min)	Double- Amplitude(mm)	Capacity (m³/h)	Motor power(kw)
2YK1224	2	2.88	970	6-8	20-120	5.5
YK1235	1	4.2	970	6-8	20-150	5.5
2YK1235	2	4.2	970	6-8	20-150	7.5
3YK1235	3	4.2	970	6-8	20-150	7.5
4YK1235	4	4.2	970	6-8	20-150	11
YK1545	1	6.75	970	6-8	20-150	11
2YK1545	2	6.75	970	6-8	20-150	15
3YK1545	3	6.75	970	6-8	20-150	15
4YK1545	4	6.75	970	6-8	20-150	18.5
YK1548	1	7.2	970	6-8	20-150	11
2YK1548	2	7.2	970	6-8	20-150	15
3YK1548	3	7.2	970	6-8	20-150	15
4YK1548	4	7.2	970	6-8	20-150	18.5
YK1860	1	10.8	970	6-8	32-350	15
2YK1860	2	10.8	970	6-8	32-350	18.5
3YK1860	3	10.8	970	6-8	32-350	18.5
4YK1860	4	10.8	970	6-8	32-350	22
YK2160	1	12.6	970	6-8	66-720	18.5
2YK2160	2	12.6	970	6-8	66-720	22
3YK2160	3	12.6	970	6-8	66-720	30
4YK2160	4	12.6	970	6-8	66-720	30
YK2460	1	14.4	970	6-8	75-750	18.5
2YK2460	2	14.4	970	6-8	75-750	30
3YK2460	3	14.4	970	6-8	75-750	30
4YK2460	4	14.4	970	6-8	75-750	30
2YK2475	2	18	970	6-8	120-900	30
3YK2475	3	18	970	6-8	120-900	37
4YK2475	4	18	970	6-8	120-900	45
YK3060	1	18	970	6-8	200-900	30
2YK3060	2	18	970	6-8	200-900	37
3YK3060	3	18	970	6-8	200-900	45
4YK3060	4	18	970	6-8	200-900	45
