10-600 T/H Vibro Sand Screening Machine, Linear Motion Vibrating Screen

10-600 T/H Vibro Sand Screening Machine, Linear Motion Vibrating Screen

  • High Light

    linear vibrating screen

    ,

    vibro screen machine

  • Product Name
    Linear Vibrator Screening Equipmnt
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    10-600(t/h)
  • Material
    Feldspar, Quartz, Clay, Silica And Other Hard Brittle Materials
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    ZSG1237,2ZSG1860
  • Minimum Order Quantity
    1 set
  • Price
    USD 8000-20000 set
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

10-600 T/H Vibro Sand Screening Machine, Linear Motion Vibrating Screen



10-600 T/H Vibro Sand Screening Machine, Linear Motion Vibrating Screen


Linear vibrating screen has a unique effect on powdery, granular materials selection and classification.



Application: Widely used in chemical, pharmaceutical, food, metal, metallurgy, mining and other industries.
1. Chemical industry: fertilizers, urea, petroleum coke, resins, paints, cosmetics, paints and so on.
2. The pharmaceutical industry: industrial chemicals, the powder particles pills, pellets, etc;
3. Metals, mining metallurgy: aluminum powder, lead powder, copper powder, ore alloy powder, powder electrodes, manganese dioxide, copper powder, magnetic power, abrasives, refractory, kaolin, limestone, alumina, heavy carbon acid calcium, quartz sand.
4. Other industries: plastics, abrasives, activated carbon, carbon, building materials industry.

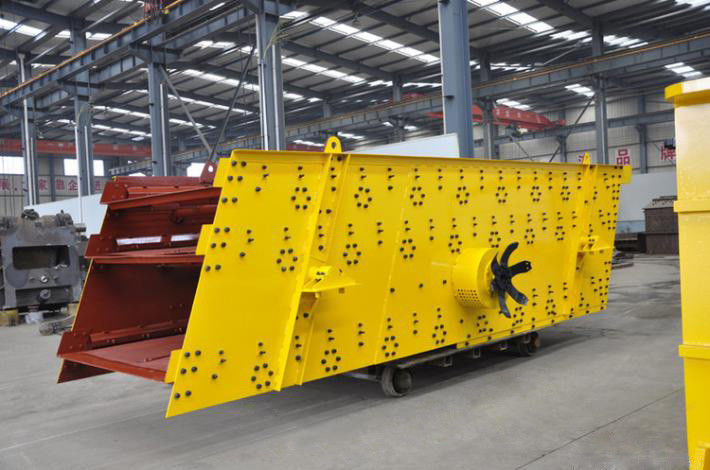

10-600 T/H Vibro Sand Screening Machine, Linear Motion Vibrating Screen 0



Vibrating screen Structure
Linear vibration sieve using vibration motor as vibration source, the materials is thrown up on the screen, at the same time for linear motion, the material feeding from the feeder evenly into the screen, screen material, produced a number of specifications through multi-layer screen material, separately from the respective outlet.



Vibrator Screening Equipment:
1. Sieve machine design, ingenious and easy to assemble, one person can operate the screening machine.
2. Independent and other related brand manufacturers, compared with a larger screen area and high efficiency of processing capacity.
3. Unique screen structure design, convenient and fast change screen (only 3 to 5 minutes), in addition, this design allows the use of a variety of screen (nylon, special dragon, PP nets).
4. The parent network to fully support the fine mesh, so fine mesh scored a longer life, and reduce the supplies of fine mesh, the production process and the long time can reduce a lot of cost.

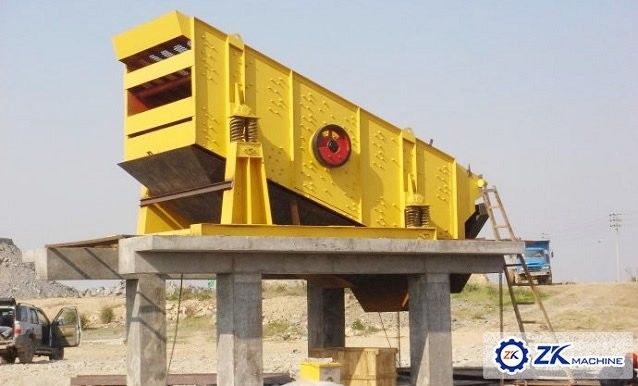

10-600 T/H Vibro Sand Screening Machine, Linear Motion Vibrating Screen 1



Sand Screening​ Specifications:

Model Sieve
Specifi-
cations
Sieve layer Mesh
size
Feeding size Cap-acity Motor Power Total
Weight
Vibr-ating frequ-ency Double ampl-
itude
Sieve
obliq-uity
Dimensions
(L*W)(mm) Layer mm mm (t/h) kw kg (Hz) (mm) o L*W*H(mm)
ZSG1237 3700*1200 1 4-50 <=200 10-100 5.5*2 2250 16 6-8 15 3800*2050*1920
2ZSG1237 3700*1200 2 4-50 <=200 10-100 5.5*2 3345 16 6-8 15 3800*2050*2200
ZSG1443 4300*1400 1 4-50 <=200 10-150 5.5*2 4100 16 6-8 15 4500*3040*2500
2ZSG1443 4300*1400 2 4-50 <=200 10-150 5.5*2 4900 16 6-8 15 4500*3040*2700
3ZSG1443 4300*1400 3 4-50 <=200 10-150 5.5*2 5870 16 6-8 15 4500*3040*2820
2ZSG1548 4800*1500 2 5-50 <=200 15-200 7.5*2 5836 16 8-10 15 4800*3140*2814
3ZSG1548 4800*1500 3 5-50 <=200 15-200 7.5*2 6900 16 8-10 15 4799*3140*3014
2ZSG1848 4800*1800 2 5-50 <=300 50-500 7.5*2 6489 16 8-10 15 4799*3440*2814
3ZSG1848 4800*1800 3 5-50 <=300 50-500 7.5*2 7750 16 8-10 15 4799*3440*3014
4ZSG1848 4800*1800 4 5-50 <=200 50-500 11*2 8300 16 8-10 15 4799*3440*3503
2ZSG1860 6000*1800 2 5-150 <=300 80-600 11*2 9950 16 8-10 15 6000*3440*3326
