Sand Wet Vibrating Screen Panels Convenient Maintenance Long Service Life

Sand Wet Vibrating Screen Panels Convenient Maintenance Long Service Life

vibro screen machine

vibratory sand screening machine

Place of Origin:

China

Brand Name:

ZK CORP

Certification:

ISO,CE

Model Number:

Screen Layer:1-2

Contact Us
Request A Quote
Product Details
Product Name:
Wet Vibrating Screen Panels / Sand Vibrating Screen
Usage:
Mine Shaker
Works:
Rotary Vane Shaker
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Motor Type:
AC Motor
Spare Parts:
Supply All Using Life
Voltage:
220V/380V/440
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
150-1200(t/h)
Packaging Details
Meet the shipment requirments
Delivery Time
30days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
80 Set / Sets per Month
Product Description

Wet Vibrating Screen Panels / Sand Vibrating Screen for Sales



Introduction:

YA vibrating screen use axis eccentricity as exciting force, which make screen body move approximate circularly. It has high screening efficiency, large process volume. It can be used screen various dry granulate material and small lump material. It has heavy and light type. The screen can be single layer, double, multilayer. Screen mesh can use metal wire mesh, rod, cast, welding, punching hole according material property.

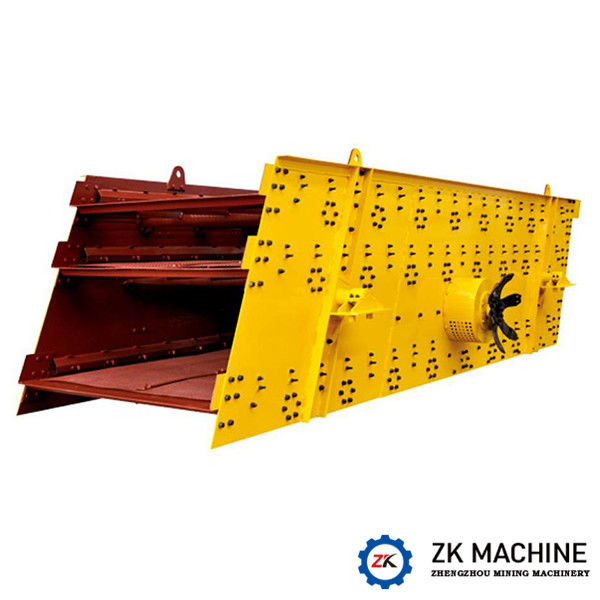

Sand Wet Vibrating Screen Panels Convenient Maintenance Long Service Life 0



Our Advantages:

1. Sieve machine design, ingenious and easy to assemble, one person can operate the screening machine.

2. Independent and other related brand manufacturers, compared with a larger screen area and high efficiency of processing capacity.

3. Unique screen structure design, convenient and fast change screen (only 3 to 5 minutes), in addition, this design allows the use of a variety of screen (nylon, special dragon, PP nets).

4. The parent network to fully support the fine mesh, so fine mesh scored a longer life, and reduce the supplies of fine mesh, the production process and the long time can reduce a lot of cost.



Feature of Structure as Below:

1 Driving device

Motor and vibration exciter use belt drive, stable running and less impact for motor

2 Screen case

It use frame structure, side plate is made by cold forming, no welding, high strength. Cross beam connect with high strength bolt, easy maintenance.

3. Damper

Use steel spiral spring as damping device, reliable performance, and long service life.

4 Screen mesh

It can use metal wire mesh, rod, cast, welding, punching hole according material property.

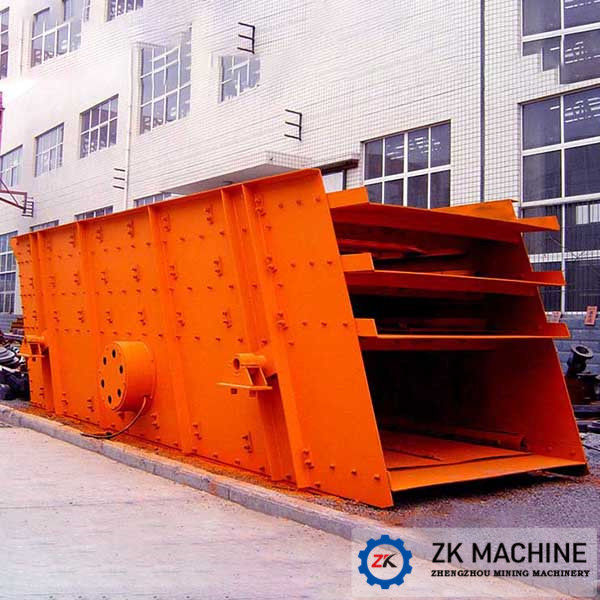

Sand Wet Vibrating Screen Panels Convenient Maintenance Long Service Life 1



Specifications:




Model And Spec

Layer

Area

Opening Size

Feed Size

Capacity

Frequency

Power
  mm mm t/h v.p.m kw
Circular Vibrating Screen
YA1848 1 7.5 6-50 ≤200 150-525 845 15
2YA1848 2 7.5 6-50 ≤200 150-525 845 15
YAH1848 1 7.5 30-150 ≤50 250-1000 755 13
2YAH1848 2 7.5 30-150 ≤400 250-1000 755 15
YA2148 1 10 6-50 ≤210 180-630 748 18.5
2YA2148 2 10 6-50 ≤210 180-630 748 22
YAH2148 1 10 13-200 ≤400 270-1200 708 18.5
2YAH2148 2 10 30-150 ≤400 270-1200 708 22
YA2160 1 12 3-80 ≤200 230-800 748 18.5
2YAH2160 2 12 6-50 ≤200 230-800 748 22
YAH2160 1 12 6-50 ≤400 350-1500 708 30
2YAH2160 2 12 30-150 ≤400 350-450 708 30
YA2448 1 11 6-50 ≤200 200-700 748 18.5
YAH2448 1 11 6-50 ≤400 310-1300 708 30
2YAH2448 2 11 30-150 ≤400 310-1300 708 30
YA2460 1 14 6-50 ≤200 260-780 748 30
2YA2460 2 14 6-50 ≤200 260-780 748 30
YAH2460 1 14 30-150 ≤400 400-1700 708 30
2YAH2460 2 14 30-150 ≤400 400-1700 708 30

FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.

Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.

Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
