Mine ShakerVibratory Screening Equipment Adjustable Voltage Reasonable Structure

Mine ShakerVibratory Screening Equipment Adjustable Voltage Reasonable Structure

linear vibrating screen

vibro screen machine

Place of Origin:

China

Brand Name:

ZK CORP

Certification:

ISO,CE

Model Number:

ZSG1237,2ZSG1860

Contact Us
Request A Quote
Product Details
Product Name:
Linear Vibrating Screen / Vibrating Screen
Usage:
Mine Shaker
Works:
Rotary Vane Shaker
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Motor Type:
AC Motor
Spare Parts:
Supply All Using Life
Voltage:
220V/380V/440
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
150-1200(t/h)
Packaging Details
Meet the shipment requirments
Delivery Time
30days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
80 Set / Sets per Month
Product Description

Mine Shaker Vibratory Screening Equipment Adjustable Voltage Reasonable Structure





Introduction:

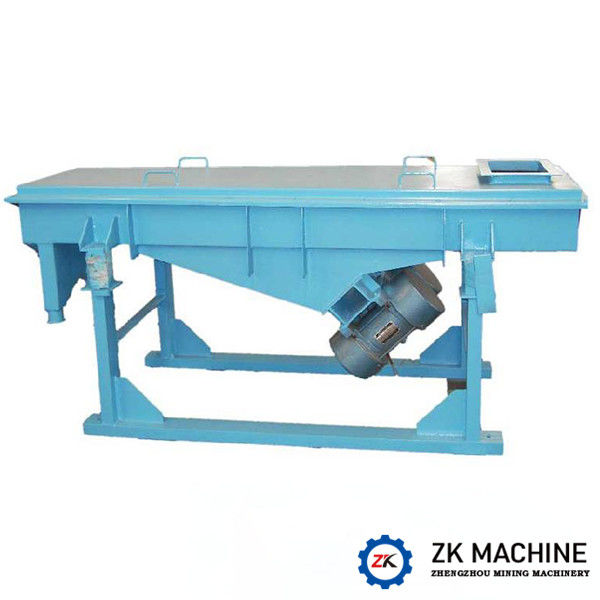

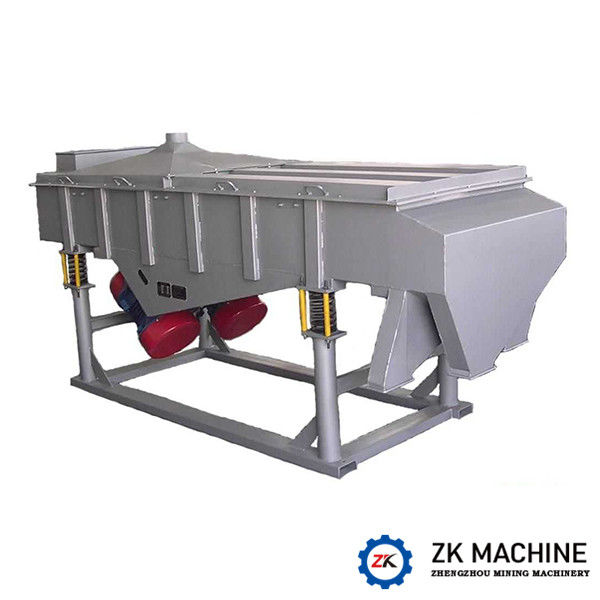

Linear vibrating screen has a unique effect on powdery, granular materials selection and classification. Widely used in chemical, pharmaceutical, food, metal, metallurgy, mining and other industries.



Our Advantages:

1. Sieve machine design, ingenious and easy to assemble, one person can operate the screening machine.

2. Independent and other related brand manufacturers, compared with a larger screen area and high efficiency of processing capacity.

3. Unique screen structure design, convenient and fast change screen (only 3 to 5 minutes), in addition, this design allows the use of a variety of screen (nylon, special dragon, PP nets).

4. The parent network to fully support the fine mesh, so fine mesh scored a longer life, and reduce the supplies of fine mesh, the production process and the long time can reduce a lot of cost.



Mine ShakerVibratory Screening Equipment Adjustable Voltage Reasonable Structure 0



Application:

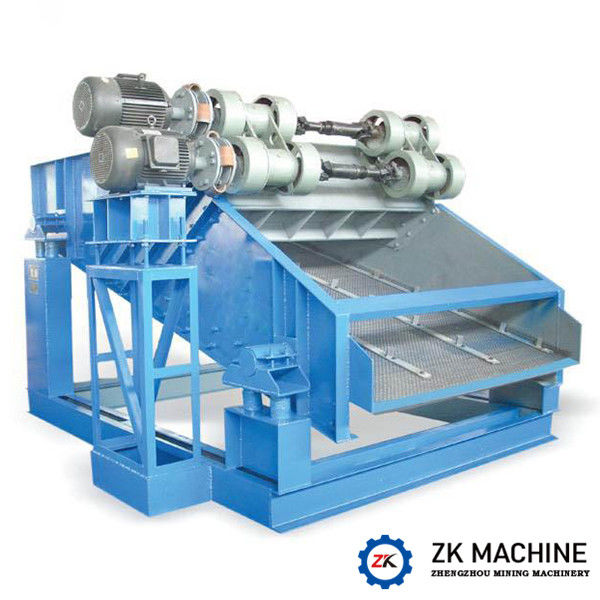

Vibrating screen YA is of several decks whose moving track is round. The moving track of material is very long; the size of material can be separated into several specifications. It adopts cylinder style inspiring vibrator device and eccentric shaft to adjust. With the features of reliable structure, strong vibrating generation, high screening efficient, low noise, easy maintenance, safe performance, etc. It is widely used in separating gravel and is also suitable for mining, construction material, transportation, energy, chemical industry and so on.

The vibrating screen uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force. The materials make circular movement on the screen to realize sieving.



Mine ShakerVibratory Screening Equipment Adjustable Voltage Reasonable Structure 1



Specifications:



Model Sieve
Specifi-
cations
Sieve layer Mesh
size
Feeding size Cap-acity Motor Power Total
Weight
Vibr-ating frequ-ency Double ampl-
itude
Sieve
obliq-uity
Dimensions
(L*W)(mm) Layer mm mm (t/h) kw kg (Hz) (mm) o L*W*H(mm)
ZSG1237 3700*1200 1 4-50 <=200 10-100 5.5*2 2250 16 6-8 15 3800*2050*1920
2ZSG1237 3700*1200 2 4-50 <=200 10-100 5.5*2 3345 16 6-8 15 3800*2050*2200
ZSG1443 4300*1400 1 4-50 <=200 10-150 5.5*2 4100 16 6-8 15 4500*3040*2500
2ZSG1443 4300*1400 2 4-50 <=200 10-150 5.5*2 4900 16 6-8 15 4500*3040*2700
3ZSG1443 4300*1400 3 4-50 <=200 10-150 5.5*2 5870 16 6-8 15 4500*3040*2820
2ZSG1548 4800*1500 2 5-50 <=200 15-200 7.5*2 5836 16 8-10 15 4800*3140*2814
3ZSG1548 4800*1500 3 5-50 <=200 15-200 7.5*2 6900 16 8-10 15 4799*3140*3014
2ZSG1848 4800*1800 2 5-50 <=300 50-500 7.5*2 6489 16 8-10 15 4799*3440*2814
3ZSG1848 4800*1800 3 5-50 <=300 50-500 7.5*2 7750 16 8-10 15 4799*3440*3014
4ZSG1848 4800*1800 4 5-50 <=200 50-500 11*2 8300 16 8-10 15 4799*3440*3503
2ZSG1860 6000*1800 2 5-150 <=300 80-600 11*2 9950 16 8-10 15 6000*3440*3326
