High Frequency Quartz Vibro Sand Screening Machine For Mineral Processing

High Frequency Quartz Vibro Sand Screening Machine For Mineral Processing

  • High Light

    linear vibrating screen

    ,

    vibro screen machine

  • Product Name
    High Frequency Quartz Vibro Sand Screening Machine
  • Capacity
    150 - 1200 (t/h)
  • Applied Material
    Ore Dressing Line, Building Material Crushing And Screening Plant
  • Usage
    Mine Shaker
  • Screen Layer
    1 - 2
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Motor Type
    AC Motor
  • Screen Area
    7.5 - 14 (m2)
  • Place of Origin
    China
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    Sand Vibrating Screen
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Meet the shipment requirments
  • Delivery Time
    30days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    80 Set / Sets per Month

High Frequency Quartz Vibro Sand Screening Machine For Mineral Processing

High Frequency Quartz Vibro Sand Screening Machine For Mineral Processing




Introduction:

This YA series vibrating screen is vibrated by the circling motion. It is high efficient screen for filter materials into multiple grade according to the gravel size. For the compact structure and the convenience installation, it is the ideal screening device for pre-filter of the feed materials before the primary crushing in the quarry site, it also can be used as separation and filtration solely. The vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The materiel sieve drip line is long and more sieving specifications.

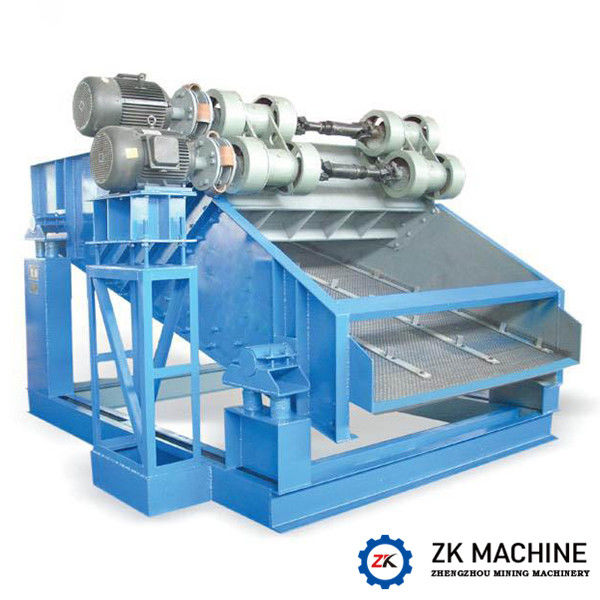

High Frequency Quartz Vibro Sand Screening Machine For Mineral Processing 0



Application:
Vibrating screen YA is of several decks whose moving track is round. The moving track of material is very long; the size of material can be separated into several specifications. It adopts cylinder style inspiring vibrator device and eccentric shaft to adjust. With the features of reliable structure, strong vibrating generation, high screening efficient, low noise, easy maintenance, safe performance, etc. It is widely used in separating gravel and is also suitable for mining, construction material, transportation, energy, chemical industry and so on.

The vibrating screen uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force. The materials make circular movement on the screen to realize sieving.

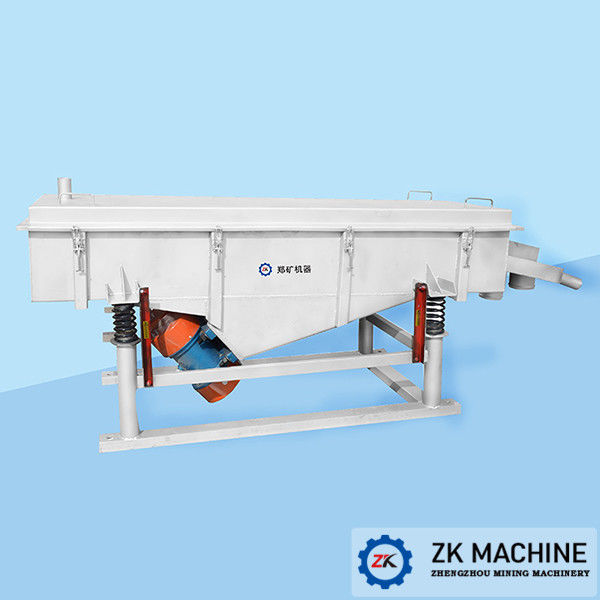

High Frequency Quartz Vibro Sand Screening Machine For Mineral Processing 1



Main Features:
1.Cylinder-type eccentric shaft and eccentric block to make strong vibrating force.
2.Long material screening line, various sieving specifications.
3.Simple structure, reliable operation, low noise, low power consumption.
4.High screening efficiency, large capacity, less block.
5.Sealed structure available to protect the dust pollution.
6.Adjustable amplitude by changing the weight of the eccentric block.



Parameter:



Model And Spec

Layer

Area

Opening Size

Feed Size

Capacity

Frequency

Power
  mm mm t/h v.p.m kw
Circular Vibrating Screen
YA1848 1 7.5 6-50 ≤200 150-525 845 15
2YA1848 2 7.5 6-50 ≤200 150-525 845 15
YAH1848 1 7.5 30-150 ≤50 250-1000 755 13
2YAH1848 2 7.5 30-150 ≤400 250-1000 755 15
YA2148 1 10 6-50 ≤210 180-630 748 18.5
2YA2148 2 10 6-50 ≤210 180-630 748 22
YAH2148 1 10 13-200 ≤400 270-1200 708 18.5
2YAH2148 2 10 30-150 ≤400 270-1200 708 22
YA2160 1 12 3-80 ≤200 230-800 748 18.5
2YAH2160 2 12 6-50 ≤200 230-800 748 22
YAH2160 1 12 6-50 ≤400 350-1500 708 30
2YAH2160 2 12 30-150 ≤400 350-450 708 30
YA2448 1 11 6-50 ≤200 200-700 748 18.5
YAH2448 1 11 6-50 ≤400 310-1300 708 30
2YAH2448 2 11 30-150 ≤400 310-1300 708 30
YA2460 1 14 6-50 ≤200 260-780 748 30
2YA2460 2 14 6-50 ≤200 260-780 748 30
YAH2460 1 14 30-150 ≤400 400-1700 708 30
2YAH2460 2 14 30-150 ≤400 400-1700 708 30
