High Capacity Industrial Production Line , GGBS Turnkey Production Line

Fast and high capacity GGBS turnkey production line in SAUDI ARABIA



Blast Furnace Slag Capacity:1.5-25(t/h)

Cement Capacity:3-50(t/h)

Raw Material Capacity:6-110(t/h)



GGBS Production Line OUR ADVANTAGE

1. Comprehensive service

We ZK company is the professional slag powder production line supplier. We can provide both ball mill and vertical mill production process, while providing 'turnkey' service from civil engineering to commissioning.



2. Serious Quality Control

ZKCorp has a strong capacity of manufacturing and could control product quality seriously with short delivery time. Expert Installation and After-service Team could ensure to finish plant installation and start running on time



3. Low cost and proper investment.

Slag Vertical Mill Production Line from ZKCorp engages the advantages of simple process flow, high-efficiency of grinding, great drying capacity, efficient Powder-classifying, easily-adjustable outputting size, low noise and electricity-consumption, small mill consumption, high degree of automation, low running expense, which make it suitable for small and middle plant owner.

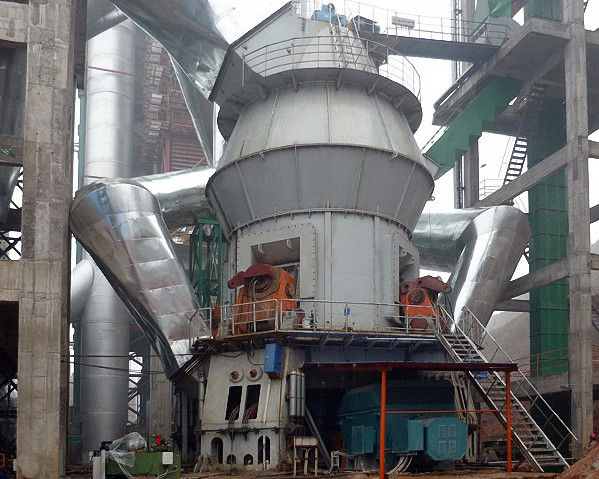

High Capacity Industrial Production Line , GGBS Turnkey Production Line 0



GGBS Production Line PRODUCTION PROCESS BY VERTICAL MILL

Slag is transported into the plant by truck and stored under the shed. After reclaiming by loader and metering by feeder, the material is delivered and de-ironed into the vertical mill by the belt conveyor and its magnetic separator.

After de-ironing the slag enter the vertical mill for grinding. Dried and grinded slag powder is collected by the separator and sent into the finished product silo by air chute and bucket elevator. The discharged slag is sent back to the mill by conveyor and elevator. The drying heat source is provided by an air heating furnace.

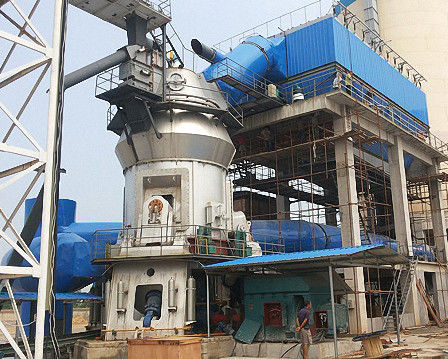

High Capacity Industrial Production Line , GGBS Turnkey Production Line 1



Vertical Mill Configuration Table

(t/h)Hourly Capacity (×10kt/a)

Blast Furnace Slag

Cement

Raw Material

Diameter

Roller Diameter
1.5~2 3~4 6~8 1.5 3 5.5 ZKRM08.2 1200 800 55
3~4 5~6 10~12 3 4.5 9 ZKRM11.2 1500 1100 110
8~9 11~13 20~22 6 9.5 17 ZKRM13.2 1700 1300 185
9~10 14~16 26~34 8 12 24 ZKRM15.2 1900 1500 250
12~14 20~23 40~50 10 17 36 ZKRM17.2 2100 1700 355
15~17 24~26 50~60 13 20 43.5 ZKRM19.2 2300 1900 450
18~20 27~30 60~75 15 22.5 55 ZKRM20.2 2400 2000 560
23~25 40~50 85~110 20 35.5 77 ZKRM22.3 2600 2200 710

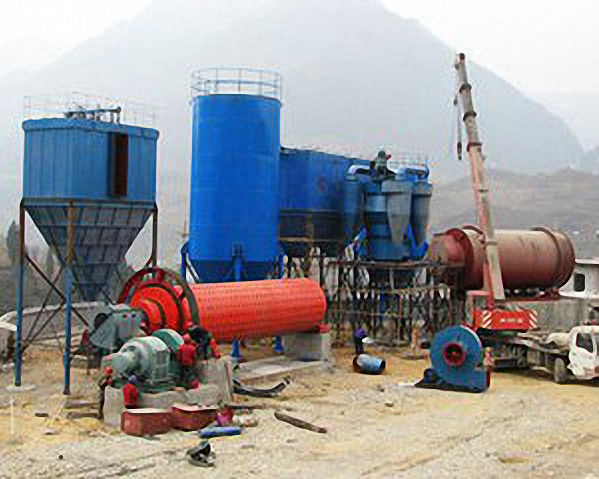

High Capacity Industrial Production Line , GGBS Turnkey Production Line 2



PRODUCTION PROCESS BY BALL MILL

Slag is transported into the plant by truck and stored under the shed. After reclaiming by loader and metering by feeder, the material is delivered into the dryer by belt conveyor for drying. After drying the slag enter the ball mill for grinding. Grinded slag powder is send into the separator by the bucket elevator for grading. Qualified power is sent into the finished product silo by air chute, hoist and elevator. Large particle powders return to ball mill for re-grinding. There is the dust filter at the discharge end of the ball mill. The slag dust is collected and transported into the finished product silo. The drying heat source is provided by an air heating furnace.

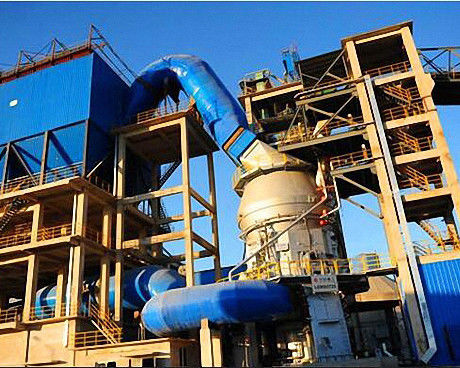

High Capacity Industrial Production Line , GGBS Turnkey Production Line 3



Ball Mill Configuration Table


Blast Furnace Slag

Cement

Raw Material

Blast Furnace Slag

Cement

Raw Material
1.5~2 3~4 6~8 1.5 3 5.5 φ1.2×4.5m NHX200 55
3~4 5~6 10~12 3 4.5 9 φ1.5×5.7m NHX300 130
8~9 11~13 20~22 6 9.5 17 φ2.2×9m NHX400 475
9~10 14~16 26~34 8 12 24 φ2.2×11m NHX400 570
12~14 20~23 40~50 10 17 36 φ2.4×11m NHX500 630
15~17 24~26 50~60 13 20 43.5 φ2.4×13m NHX500 800
18~20 27~30 60~75 15 22.5 55 φ2.6×10m NHX600 1000
23~25 40~50 85~110 20 35.5 77 φ3.0×11m NHX700 1250
