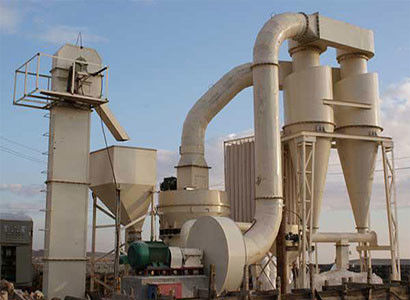

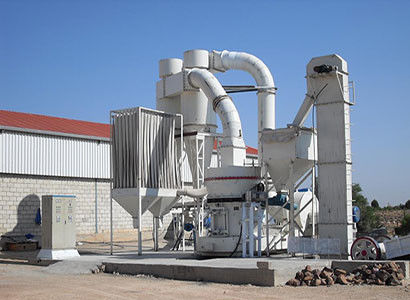

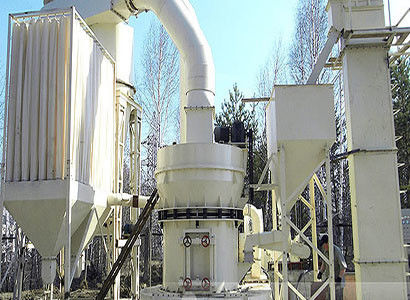

Heavy calcium carbonate powder mill plant/powder grinding plant with 1mt yr grinding plant at nyakesi
Configuration: Jaw crusher, grinding mill, bucket elevator, magnetic vibrating feeder, transmission gear, main engine.
Applied Materials: Feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese, etc.
Application Area: Building materials, chemicals, fertilizer, metallurgy, mining, refractory, ceramic, steel, coal, etc
Powder grinding plant is also called powder making plant, which is widely used for the powder making in mining, power, chemical industry, building materials, metallurgy, refractory materials, desulfurization of power plant, asphalt mixing station and highway industry, and the product size is adjustable in the range of 20 – 3250 meshes.
ZK Machinery can not only provide powder grinding plant with wide selection ranges, reasonable matching, reliable quality and high performance price ratio for customers, but also offer the overall design and construction scheme of grinding operation as well as the turnkey project of the grinding field.
Configuration of Powder Grinding Plant:
Powder grinding plant is usually composed of jaw crusher, bucket elevator, electromagnetic vibrating feeder, grinding machine motor, analysis machine (powder separator), auxiliary equipment, blower, centralized electronic device. It also can be configured with micro powder mill, high pressure grinding mill, ultrafine mill, Raymond mill, tricyclic medium-speed micro powder mill or vertical mill according to the different needs of customers.
Our Advantages:
1. It has rational structure design, which has strong adaptability to materials; wide application ranges; the configuration has great flexibility and high yield; the material has short staying time in the mill, so as to reduce the duplication of milling; low energy consumption, stable product quality.
2. The equipment adopts high quality material, which has abrasion resistance, long service life, strong ability to adapt to the environment; it has open layout, which has high degree of automation, convenient operation, low noise, and the system works under negative pressure without pollution to the environment.
Parameters
| Grinding mill | YGM75 | YGM95 | YGM130 | YGM160 | YGM190 | ||
| Main Equipment | Capacity | 0.8-1.5t/h | 2.5-4t/h | 4.5-7t/h | 7-11t/h | 11-15t/h | |
| Grinding mill Power | Main Grinder | 18.5 | 45 | 90 | 132 | 185 | |
| Blower | 15 | 37 | 90 | 132 | 185 | ||
| Classifier | 2.2 | 5.5 | 7.5 | 15 | 22 | ||
| Jaw Crusher | Model | PE150X250 | PE200X350 | PE250X400 | PE250X750 | PE250X750 | |
| Power(Kw) | 5.5 | 7.5 | 15 | 22 | 22 | ||
| Input size (mm) | ≤130 | ≤150 | ≤210 | ≤210 | ≤210 | ||
| Output size (mm) | 15-45 | 15-55 | 25-60 | 25-60 | 25-60 | ||
| Elevator | Model | T210 | T210 | T250 | T315 | T400 | |
| Power(Kw) | 3 | 3 | 3 | 4 | 4 | ||
| Feeder | Model | GZ-2 | GZ-4 | GZ-4 | GZ-5 | GZ-5 | |
| Power(Kw) | 0.15 | 0.45 | 0.45 | 0.65 | 0.65 | ||
| Silo | According to the actual situation,we choose the suitable size for you. | ||||||
