Dry Type Cement Manufacturing Plant Rotary Kilns ISO CE Certificated

Dry Type Cement Manufacturing Plant Rotary Kilns ISO CE Certificated

  • High Light

    cement production plant

    ,

    cement manufacturing plant

  • Production Capacity
    50-3000TPD
  • Type
    Dry Type
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    180-3000(t/d)
  • Material
    Calcining Cement Clinker
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Energy Saving
    20-30%
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Φ2.5×40-Φ4.3×60
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Dry Type Cement Manufacturing Plant Rotary Kilns ISO CE Certificated

Cement Manufacturing Equipment / Cement Rotary Kiln for Sale



We provide the full range service including design, manufacturing, installation for new type dry method cement production line with capacity from 50t/d to 3000t/d.


Process of Cement Production Plant:
1. Raw Materials
2. Raw Material Preparation
3. Crushing and Pre-homogenization
4. Raw Material Homogenization
5. Preheater and Calciner
6. Cement Clinker Burning
7. Cement Clinker Grinding
8. Cement Packaging.

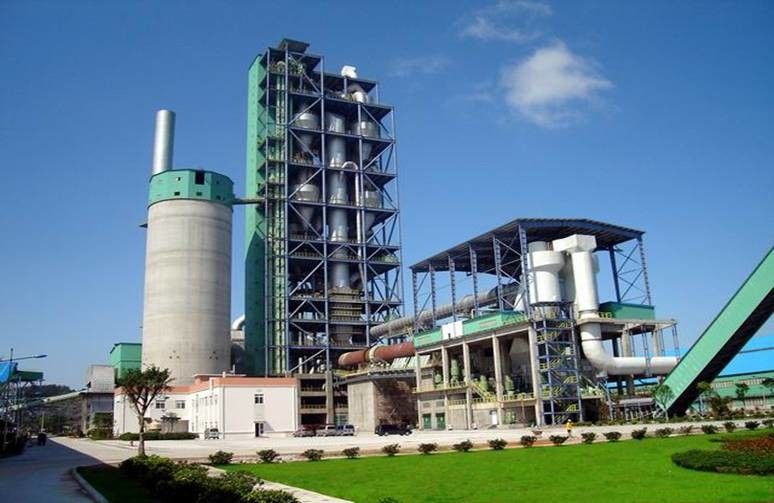

Dry Type Cement Manufacturing Plant Rotary Kilns ISO CE Certificated 0



Technical Parameter

Capcity 25t/d 50 t/d 100 t/d 150 t/d 200 t/d
Rotary kiln Specification Φ1.4×33m Φ1.6/1.9×36m Φ2.2×45m Φ2.5×50m Φ3×60m
Capacity 1t/h 2t/h 4t/h 6t/h 8t/h

Calcination

Temperature

(℃)

1450 1450 1450 1450 1450
Raw mill Specification

Φ1.2×4.5m

Open circuit

Φ1.5×5.7m

Open circuit

Φ1.83×6.1m Open circuit

Φ1.83×6.1m

Closed circuit

Φ2.2×6.5m

Closed circuit

Capacity 1.7t/h 4.5t/h 9t/h 12t/h 16t/h
Motor power 55kW 130kW 210kW 210kW 310kW
Cement mill Specification Φ1.2×4.5m Open circuit

Φ1.5×5.7m

Open circuit

Φ1.83×6.1m Open circuit

Φ1.83×6.1m

Closed circuit

Φ2.2×6.5m

Closed circuit

Capacity 1.4t/h 3.5t/h 6.5t/h 8t/h 12t/h
  Motor power 55kW 130kW 210kW 210kW 310k





OUR ADVANTAGE

1. High Efficiency

Cement production line adopts advanced technology and equipment to raise technical level and to ensure design indexes. New five-stage cyclone pre-heater system, high efficiency air girder grate cooler, multi-passage pulverized coal burner, Davison heat temperature fan, jet pulse dust collector, as well as chain-board elevator, chain conveyor adopted in this production line can ensure that the technology is advanced compared to other production lines with the same scale.

2. Saving Energy

Measures have been taken to save energy and reduce consumption. Using chain-board elevator and air slides, reliability of the system is enhanced and conveying energy consumption is decreased.

3. Environmental protection

Effective measures have been taken to guarantee strict environment protection standards. Different efficient dust collectors are set at all dust producing points according to different characteristics of waste gas.

4. High degree of automation

There is no manual operation in the process of mill running, which realizes the automatic control with long-term, stable, effective, makes milling process more stable, realizes fine work of production.

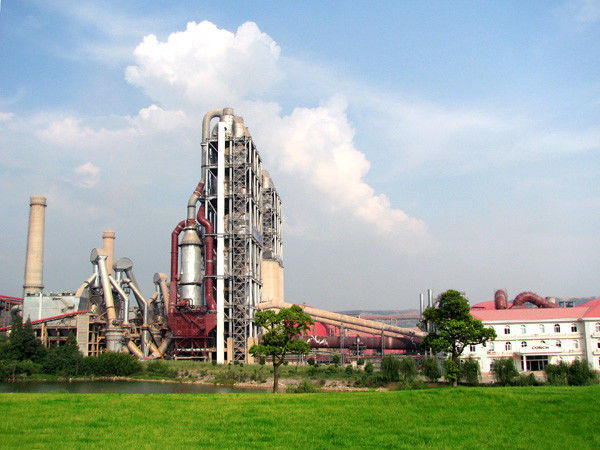

Dry Type Cement Manufacturing Plant Rotary Kilns ISO CE Certificated 1
