Gold Processing Plant Vibro Screen Machine 100T/H Convenient Maintenance

Gold Processing Plant Vibro Screen Machine 100T/H Convenient Maintenance

  • High Light

    vibro screen machine

    ,

    vibratory sand screening machine

  • Product Name
    Trommel Screen Aggregates,small Trommel Screen For Sale,trommel Screen Manufacturers
  • Model
    GTS-3,GTS-15
  • Capacity
    30000-150000t
  • Material
    Refractory Material, Coal, River Sand And Stone
  • Condition
    New
  • Warranty
    1 Year
  • Motor Type
    AC Motor
  • Voltage
    220V/380V/440
  • Spare Parts
    Supply All Using Life
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Shipping Port
    Shanghai,Qingdao,Tianjin
  • Place of Origin
    China
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    Trommel Screen
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export Wooden Case
  • Delivery Time
    Within 30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    60 Per Month

Gold Processing Plant Vibro Screen Machine 100T/H Convenient Maintenance

100t/H Gold Processing Plant Trommel Screen for Mines Manufacturers



Introduction:

According to different sizing specification, the numbers of hierarchical level could be from one to four. Materials are larger than the screen mesh of the last part will be discharged from the outlet.

During the process of operation, its movement is slowly and steady and installation is simple, sometime no need any special foundation and could be placed on smooth ground or floor.

Trommel Screen is the most commonly used classification device for refractory material, coal, river sand and mixture of sand and stone.



Gold Processing Plant Vibro Screen Machine 100T/H Convenient Maintenance 0

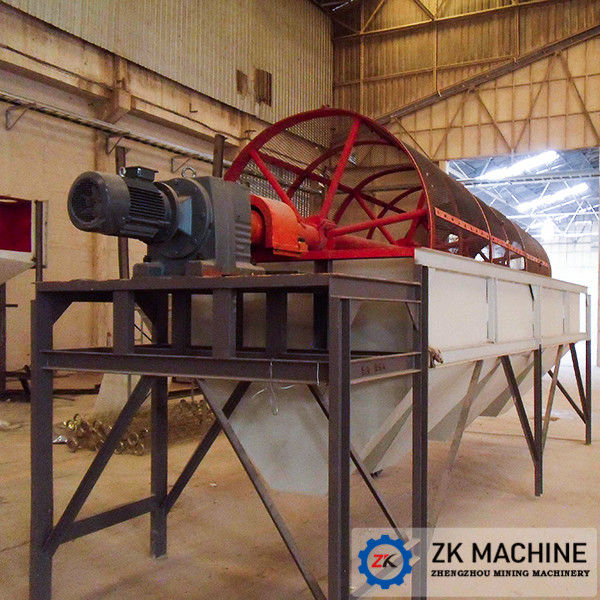

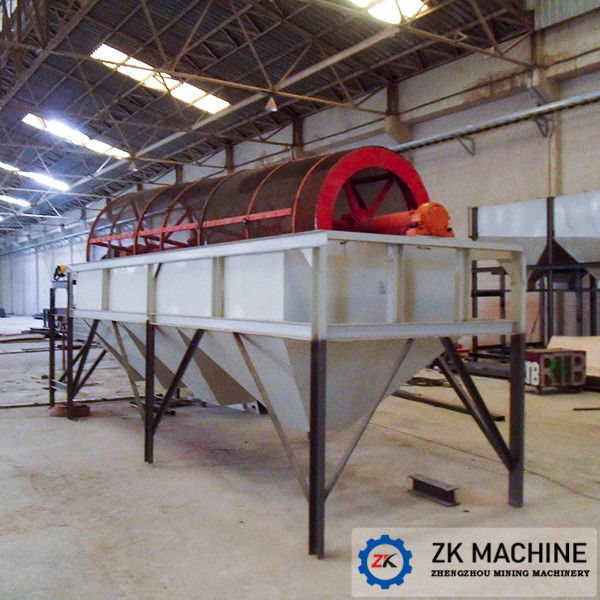

Trommel screen consists of five parts as drum, frame, hopper, reducer and motor. After the broken stone into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.

Trommel screen consists of five parts as drum, frame, hopper, reducer and motor. After the broken stone into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.



Gold Processing Plant Vibro Screen Machine 100T/H Convenient Maintenance 1



Our advantages:

1.Drum sieve is our company for power plants, coking plants, metallurgy, chemicals, mining, building materials and other industries and the development of vibration screening machine.

2.Which solves the problem of viscous plugging of the viscous material during the screening process, and improves the yield and reliability of the screening system.

3.The largest output of 100 mm, the middle 10-50 mm, the smallest up to 3 mm below, the product by the majority of users praise.



Specifications:



Model Capacity
(t)
Output
(t/h)
Diameter
(mm)
Length
(m)
Powder
(kw)
GTS-3 30000 10.4 Φ1200 3.5 4
GTS-5 50000 13.8 Φ1200 4 5.5
GTS-10 100000 27.8 Φ1400 5 7.5
GTS-15 150000 47.7 Φ1500 6 11

Our service:

Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment, according to your special demand.



Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.



After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
